Запчасти Case IH CR-1280 (01-30) - 3-PT CONTROLS (10) - CAB

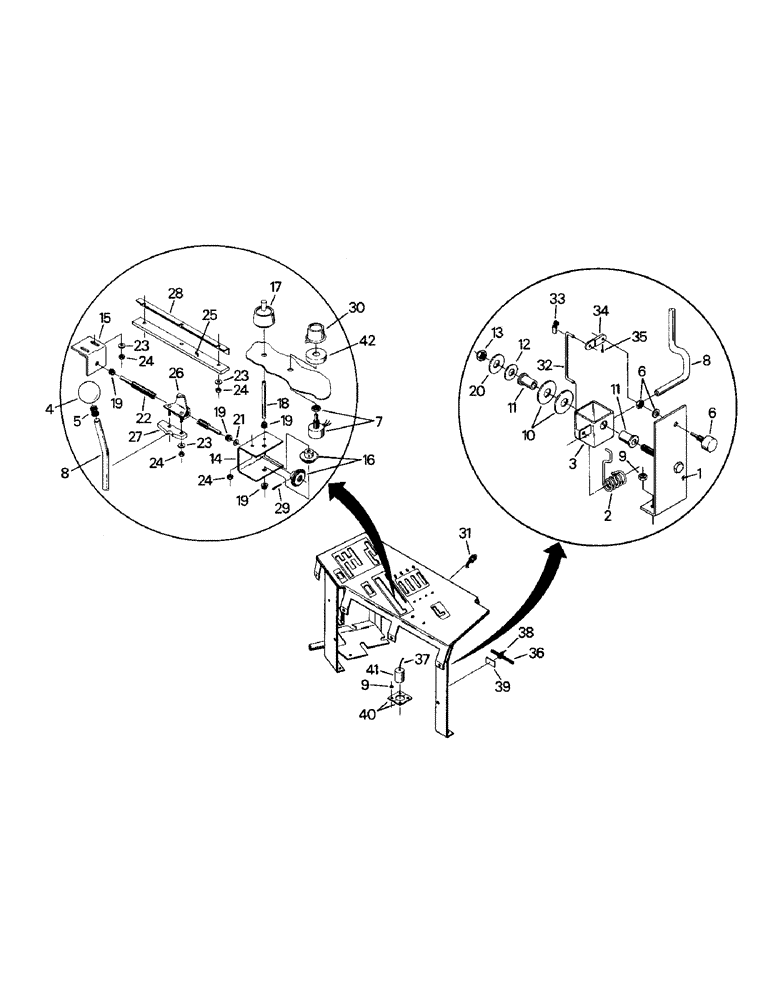

Схема запчастей Case IH CR-1280 - (01-30) - 3-PT CONTROLS (10) - CAB
35
4
2
26
36
28
1
10
25
27
23
24
24
19
6
34
40
41
9
30
21
19
19
7
5
33
15
14
39
16
37
13
18
22
29
23
23
38
24
11
32
17
11
12
6
42
19
3
20
9
8
8
24
31

Артикул

Название

Примечание

Количество

1

60-4691T1

BRACKET

1шт.

2

60-4294T1

SPRING

1шт.

3

60-3941T1

LEVER

1шт.

4

60-4273T1

BALL KNOB

Knob

1шт.

5

90-4332T1

OIL SEAL

Tolerance Ring

1шт.

6

20-2125T2

POTENTIOMETER

1шт.

7

20-2093T1

POTENTIOMETER

1шт.

8

60-3943T1

THREADED ROD

Rod

1шт.

9

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

6шт.

10

19-711

WASHER,5/8", SAE

2шт.

11

90-4367T1

BRONZE BUSHING

Bushing

2шт.

12

19-109

WASHER,1/2"

1шт.

13

19-653

LOCK NUT

Lock Nut

1шт.

14

60-4757T1

SUPPORT

Bracket

1шт.

15

60-4758T1

SUPPORT

Bracket

1шт.

16

60-4275T1

GEAR, BEVEL

Gear Set

1шт.

17

60-3957T1

BUTTON

Knob

1шт.

18

60-3949T1

ROD

1шт.

19

19-6129

NYLON BEARING

Bearing

4шт.

20

19-5648

SPRING WASHER

Spring Washer

1шт.

21

19-5924

SPRING WASHER

Spring Washer

1шт.

22

60-3955T1

STEM

Threaded Rod

1шт.

23

19-195

WASHER,#10

also shown on Fig. 01-25

7шт.

24

19-5563

LOCK NUT

Lock Nut, also shown on Fig. 01-25

9шт.

25

60-3954T1

LARGE PLATE

Wearstrip

1шт.

26

60-3950T1

INDICATOR

1шт.

27

60-3953T1

LARGE PLATE

Tab

1шт.

28

60-4276T1

SUPPORT

Bracket, also shown on Fig. 01-25

1шт.

29

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

30

60-3958T1

BUTTON

Knob

1шт.

31

1-7128

IGNITION SWITCH

Switch Assy

1шт.

32

60-2802T1

STEM

Rod

1шт.

33

60-2404T1

RETAINER

2шт.

34

60-1561T1

ARM

1шт.

35

19-5385

SET SCREW,Hex Socket, #2-56 x 1/2"

1шт.

36

20-2398T1

HARNESS

3-Pt Control Wire Harness

1шт.

37

20-2399T1

HARNESS

3-Pt Wire Harness

1шт.

38

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

6шт.

39

22-823

MOUNT

Backed Mount

1шт.

40

60-4651T1

ANGLE

Plate

2шт.

41

60-3705T1

FOAM

1шт.

42

60-4919T1

WASHER

1шт.

Выбрано товаров: 42
