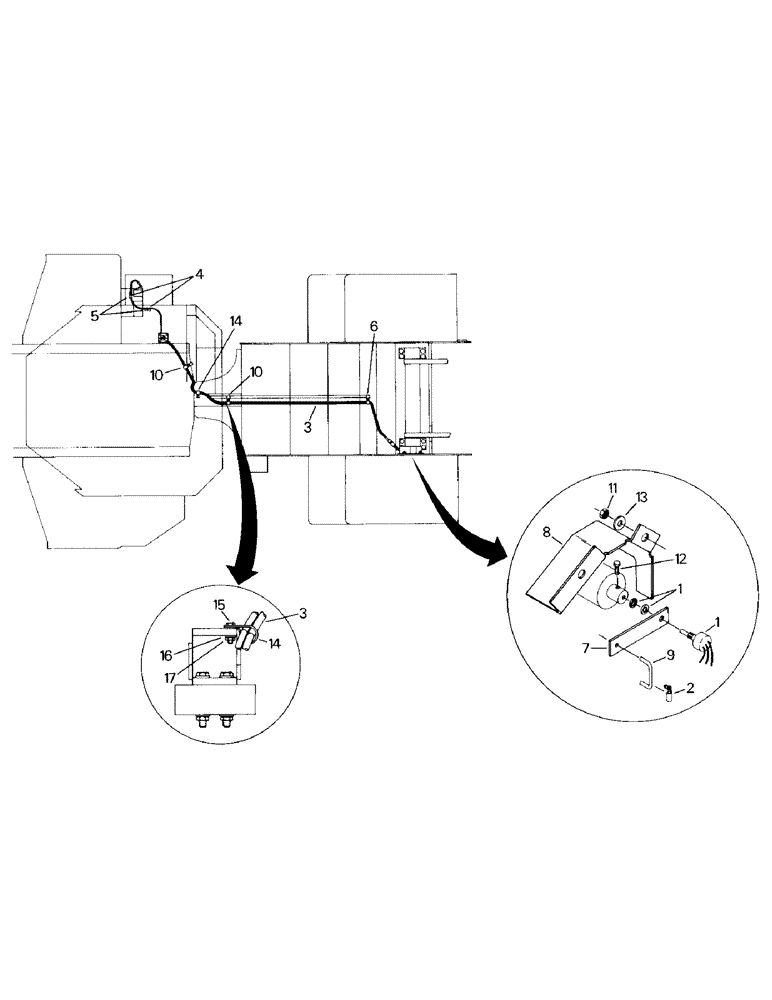

Запчасти Case IH CR-1280 (10-07) - 3-POINT CONTROLS Options & Miscellaneous

1

20-2125T2

POTENTIOMETER

1шт.

2

60-2404T1

RETAINER

2шт.

3

20-2399T1

HARNESS

3-Pt Wire Harness

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

5

22-823

MOUNT

Backed Mount

2шт.

6

31-1443

CLAMP

1шт.

7

60-4675T1

ARM

Sensor Arm

1шт.

8

60-4676T1

COVER

Sensor Cover

1шт.

9

60-2401T1

ROD

Link Rod

1шт.

10

22-1109

CLAMP

2шт.

11

19-78

SPECIAL NUT,3/8"-16, G5

2шт.

12

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew

1шт.

13

19-224

WASHER,3/8", SAE

2шт.

14

31-1349

MOUNTING CLIP

Clamp

1шт.

15

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

Capscrew

1шт.

16

19-106

WASHER,5/16", SAE

1шт.

17

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.
