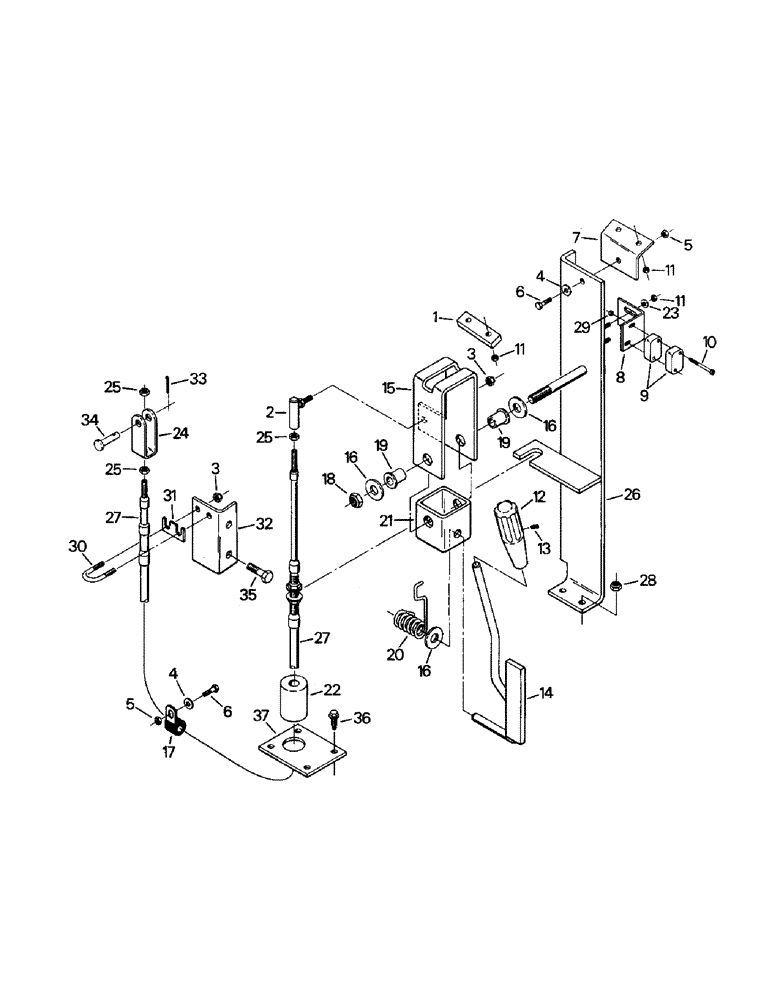

Запчасти Case IH CR-1280 (01-29) - PTO CONTROLS (10) - CAB

1

60-4269T1

LARGE PLATE

Weatstrip

1шт.

2

19-173

GASKET

Ball Joint

1шт.

3

22-1129

JAM NUT

Lock Nut

3шт.

4

19-223

WASHER,1/4"

2шт.

5

19-1081

LOCK NUT

Lock Nut

2шт.

6

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

2шт.

7

60-4270T1

SUPPORT

Bracket

1шт.

8

60-4267T1

BRACKET

1шт.

9

20-1976T1

IGNITION SWITCH

Micro Switch

2шт.

10

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

Machine Screw

2шт.

11

19-5563

LOCK NUT

Lock Nut

6шт.

12

60-4272T1

HANDLE

Knob

1шт.

13

19-5798

SET SCREW

1шт.

14

60-4265T2

LEVER

(60-4265T1)

1шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.

15

60-4296T2

SUPPORT

Bracket (60-4296T1)

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

16

19-463

WASHER,1/2", SAE

3шт.

17

31-1633

Clamp

1шт.

18

19-653

LOCK NUT

Lock Nut

1шт.

19

90-4367T1

BRONZE BUSHING

Bushing

2шт.

20

60-4294T1

SPRING

1шт.

21

60-4293T1

JOINT

Trunnion

1шт.

22

60-3705T1

FOAM

1шт.

23

19-195

WASHER,#10

2шт.

24

60-4384T1

CLEVIS COUPLING

Clevis

1шт.

25

19-236

JAM NUT,5/16" - 24, Gr 5

Jam Nut

3шт.

26

60-4271T2

BRACKET

(60-4271T1)

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

27

60-3959T1

CABLE

1шт.

28

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

29

225-14104

NUT,#4-40

2шт.

30

19-5402

BOLT

U-Bolt

1шт.

31

2-3008T1

SHIM

1шт.

32

60-4690T1

BRACKET

1шт.

33

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

34

19-145

CLEVIS PIN,3/8" x 1.06"

Clevis Pn

1шт.

35

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew

2шт.

36

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Tapping Screw

4шт.

37

60-5019T1

PLATE

1шт.
