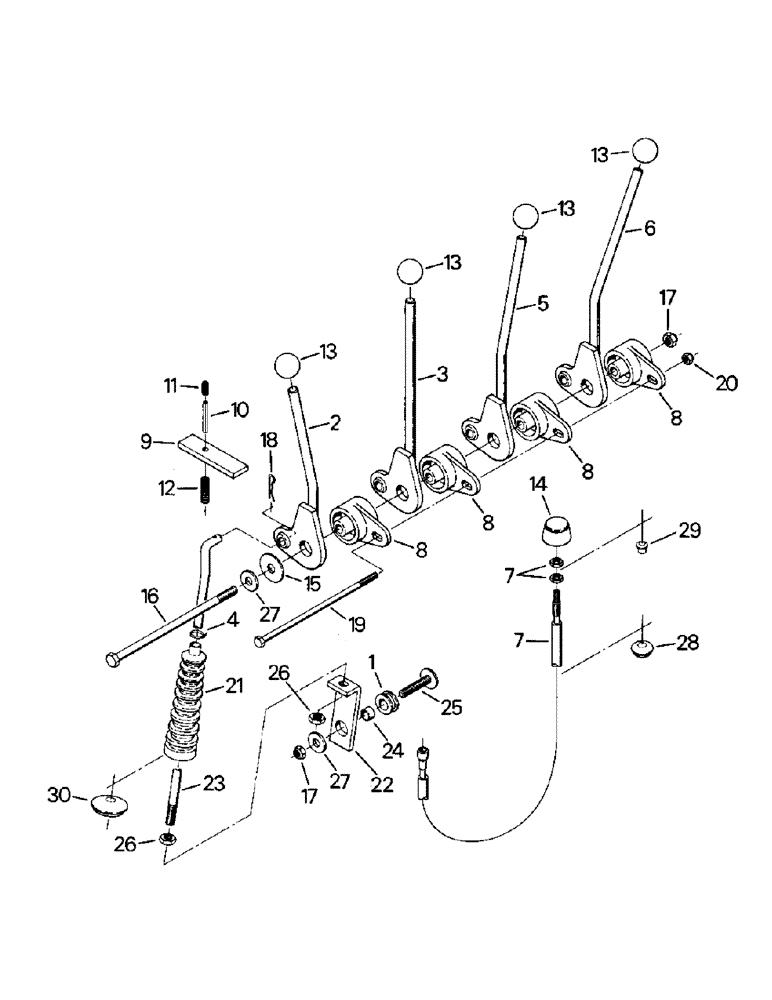

Запчасти Case IH CR-1280 (01-28) - HYDRAULIC CONTROL VALVE CONTROLS (10) - CAB

1

22-95

GROMMET

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

2

60-4341T1

LEVER

1шт.

3

60-4342T1

LEVER

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

5

60-4343T1

LEVER

1шт.

6

60-4344T1

LEVER

4-Spool Valve only

1шт.

7

60-4688T1

CABLE

Flex Shaft Assy

1шт.

8

60-3920T1

BUSHING

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

9

60-3933T1

BRACKET

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

10

38-11222

LOCK PIN,3/16" x 1 3/8", Slotted

Pin, 3/16" x 1 3/8", Slotted

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

11

60-3937T1

CYLINDER END CAP

Cap

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

12

60-3934T1

VALVE SPRING

Spring

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

13

60-4346T1

KNOB

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

14

60-4339T1

BUTTON

Knob

1шт.

15

19-6154

WASHER

1шт.

16

19-1136

BOLT,Hex, 3/8" - 16 x 6", Gr 5

Capscrew

1шт.

17

19-341

LOCK NUT,3/8" - 16, GB

5шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

18

19-5380

PIN

Hair Pin

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

19

19-6213

SCREW,Hex, 1/4" - 20 x 6", Gr 5

Capscrew

1шт.

20

19-1081

LOCK NUT

Lock Nut

1шт.

21

60-4279T1

BELLOWS

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

22

60-4282T1

SUPPORT

Bracket

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

23

60-4283T1

STEM

Rod

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

24

60-4284T1

SPACER

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

25

60-4281T1

STUD

4шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

26

19-78

SPECIAL NUT,3/8"-16, G5

8шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

27

19-224

WASHER,3/8", SAE

5шт.

Quantities are for the 4-Spool Valve; quantities for the 3-spool valve will be less.

1шт.

28

64-146

PLUG

3шт.

29

60-4258T1

PLUG

3шт.

30

22-619

GROMMET

Blind Grommet, 3-Spool Valve only

1шт.

31

1-1055

SEALANT

RTV Sealant, not shown

1шт.

35-1591T91

CONTROL VALVE

KIT, for adjusting flow from valve

1шт.
