Запчасти Case IH CR-1280 (01-26) - THROTTLE AND DECELERATOR (10) - CAB

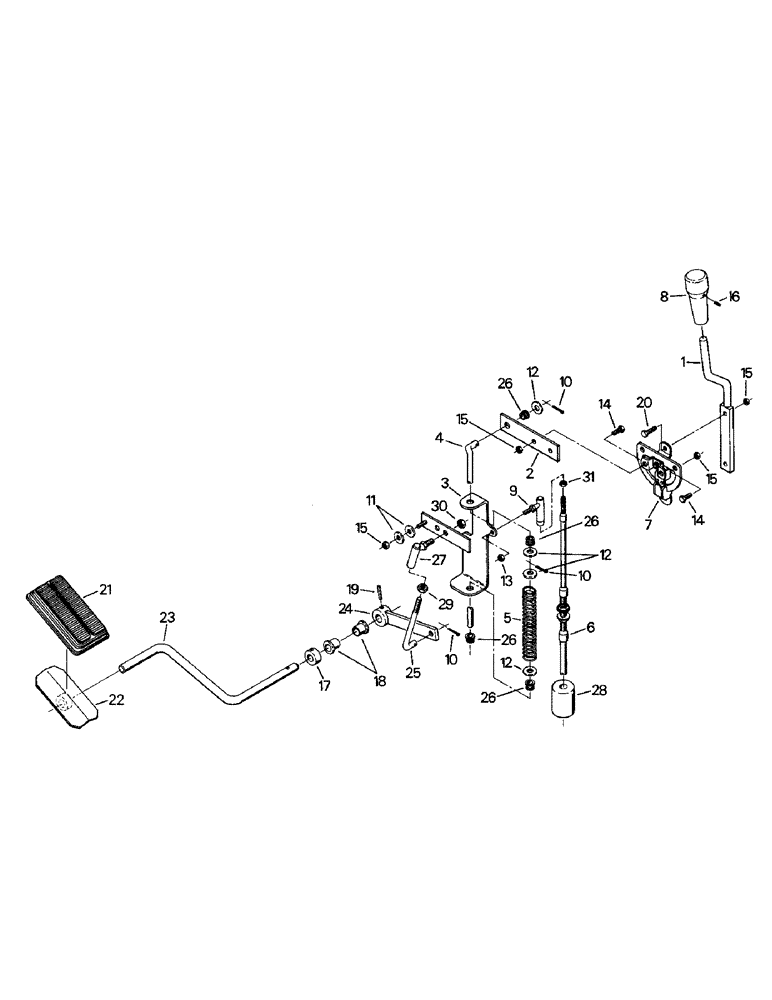

Схема запчастей Case IH CR-1280 - (01-26) - THROTTLE AND DECELERATOR (10) - CAB
26
12
22
24
15
1
12
2
18
5
9
15
6
30
21
26
15
14
7
10
31
28
15
25
26
26
10
8
16
27
13
14
17
12
20
4
3
11
29
19
10
23

Артикул

Название

Примечание

Количество

1

60-4686T2

CONTROL LEVER

Lever, Replaces 60-4686T1, Serial Range: -5406

1шт.

Used BSN 5406

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

2

60-3696T1

LINING

Strap

1шт.

3

60-4274T1

BRACKET

, Serial Range: -5406

1шт.

Used BSN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

60-4935T1

BRACKET

, Start Serial: 5406

1шт.

Used ASN 5406 (approx 8-14-85)

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

4

60-3701T1

ROD

, Serial Range: -5406

1шт.

Used BSN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

60-4931T1

ROD

, Start Serial: 5406

1шт.

Used ASN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

5

60-3702T1

SPRING

1шт.

6

60-3703T1

CABLE

Throttle Cable

1шт.

7

60-3783T1

ACTUATOR

Quadrastat

1шт.

8

60-2050T2

KNOB

1шт.

9

6-1431

BALL JOINT

1шт.

10

19-168

COTTER PIN,1/8" x 1"

3шт.

11

19-6188

WASHER

Nylon Washer

2шт.

12

19-107

WASHER

4шт.

13

9411893

LOCK NUT,#10-32, GB

1шт.

14

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew

4шт.

15

19-1081

LOCK NUT

Lock Nut

7шт.

16

19-5798

SET SCREW

1шт.

17

19-490

COLLAR

Set Collar

1шт.

18

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

Bearing

2шт.

19

19-505

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

20

19-541

BOLT,1/4" - 20 x 7/8", Gr 5

Capscrew

2шт.

21

24-13

PROTECTION STRIP

Pedal Pad

1шт.

22

60-3688T1

PEDAL

1шт.

23

60-3690T1

ROD

Pedal Rod, Serial Range: -5406

1шт.

Used BSN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

60-4926T1

STEM

Pedal Rod, Start Serial: 5406

1шт.

Used ASN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

24

60-3691T1

LEVER

, Serial Range: -5406

1шт.

Used BSN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

60-4928T1

CONTROL LEVER

Lever, Start Serial: 5406

1шт.

Used ASN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

25

60-4692T1

ROD

, Serial Range: -5406

1шт.

Used BSN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

60-4930T1

ROD

, Start Serial: 5406

1шт.

Used ASN 5406

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

26

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

Bearing

4шт.

27

19-173

GASKET

Ball Joint

1шт.

28

60-3705T1

FOAM

1шт.

29

19-236

JAM NUT,5/16" - 24, Gr 5

Jam Nut

1шт.

30

22-1129

JAM NUT

Lock Nut

1шт.

31

19-308

NUT,#10 - 32

1шт.

Выбрано товаров: 58
