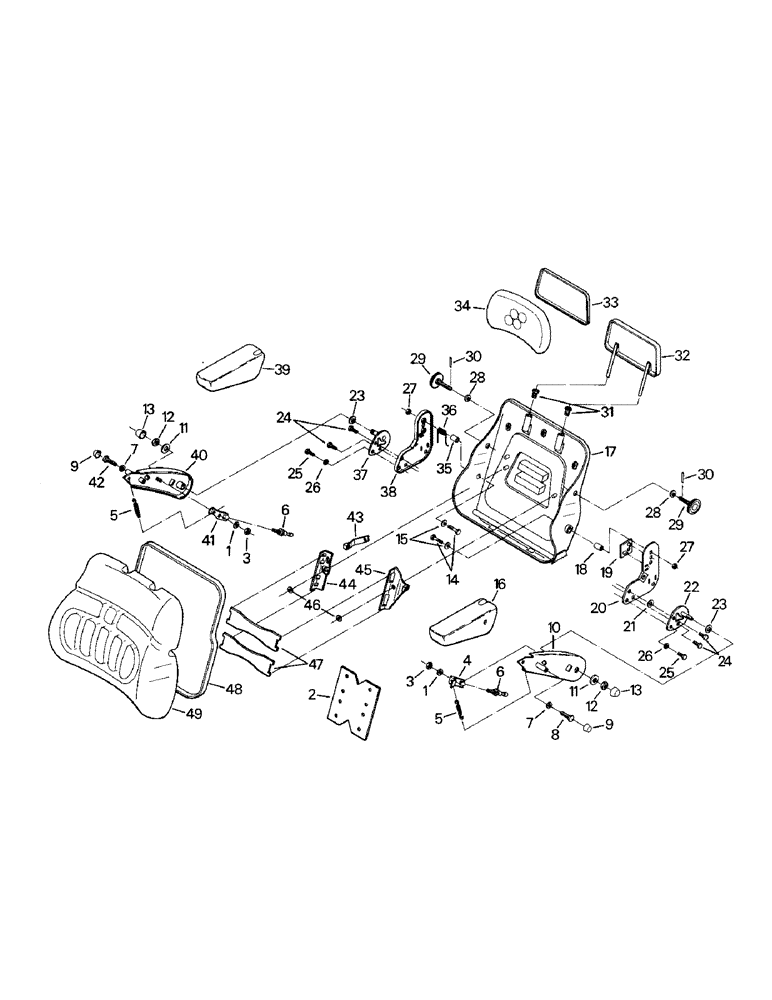

Запчасти Case IH CR-1280 (01-21) - SEAT ASSEMBLY, BACK CUSHION AND ARMREST (10) - CAB
№
Артикул
Название
Примечание
Количество
1
40-1153
WASHER
2шт.
2
60-1705T1
PLATE
1шт.
3
60-1655T1
NUT
2шт.
4
60-3188T1
RETAINER
(Left)
1шт.
5
60-3189T1
SPRING
Coiled Spring
2шт.
6
60-1650T1
STEERING KNUCKLE
Adjustable Spindle
2шт.
7
40-1008
WASHER
2шт.
8
40-1073
CAPSCREW,Hex, M10 x 1.5 x 70mm, Gr 8.8
1шт.
9
60-1656T1
COVER
Protective Cover
2шт.
10
60-3190T1
SUPPORT
Armrest Support (Left)
1шт.
11
40-1156
WASHER
2шт.
12
60-1653T1
LOCK NUT
2шт.
13
60-3240T1
COVER
Protective Cover
2шт.
14
40-1150
CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8
2шт.
15
40-1007
WASHER
2шт.
16
60-3194T1
ARMREST
(Left)
1шт.
17
60-4860T1
BACKREST
1шт.
18
60-4852T1
SPACER
1шт.
19
60-4859T1
SPACER
1шт.
20
60-4858T1
MOUNTING PARTS
Mount
1шт.
21
60-1679T1
WASHER
1шт.
22
60-3256T1
LARGE PLATE
Bearing Plate (Left)
1шт.
23
60-1654T1
WASHER
2шт.
24
60-4847T1
SCREW
4шт.
25
19-214
BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5
Capscrew
2шт.
26
19-193
LOCK WASHER,Ext Tooth, 7/16"
Washer
2шт.
27
60-4845T1
NUT
2шт.
28
60-1667T1
WASHER
2шт.
29
60-3200T1
KNOB
2шт.
30
40-1176
PIN
Spring Pin
2шт.
31
60-1669T1
BUSHING
2шт.
32
60-1672T1
SUPPORT
Backrest Extension Support
1шт.
33
60-1642T1
SUPPORT
Plastic Extrusion
1шт.
34
60-4916T1
CUSHION
Headrest Cushion
1шт.
35
60-4850T1
SPACER
1шт.
36
60-4849T1
SPRING
1шт.
37
60-3257T1
PLATE
Bearing Plate (Right)
1шт.
38
60-4851T1
MOUNTING PARTS
Mount
1шт.
39
60-3199T1
ARMREST
(Right)
1шт.
40
60-3195T1
SUPPORT
Armrest Support (Right)
1шт.
41
60-3196T1
RETAINER
(Right)
1шт.
42
40-1069
CAPSCREW,Hex, M10 x 1.5 x 45mm, Gr 8.8
1шт.
43
60-1695T1
BEARING
1шт.
44
60-1696T1
BRACKET
Angle Bracket
1шт.
45
60-1698T1
BRACKET
Bearing
1шт.
46
60-1697T1
RING, SNAP
Retainer Ring
2шт.
47
60-1699T1
PLATE
2шт.
48
60-1641T1
SUPPORT
Plastic Extrusion
1шт.
49
60-4915T1
CUSHION
Seat Back Cushion
1шт.
Выбрано товаров: 49
