Запчасти Case IH CR-1280 (01-18) - SEAT ASSEMBLY, COMPRESSOR AND MOUNTING (10) - CAB

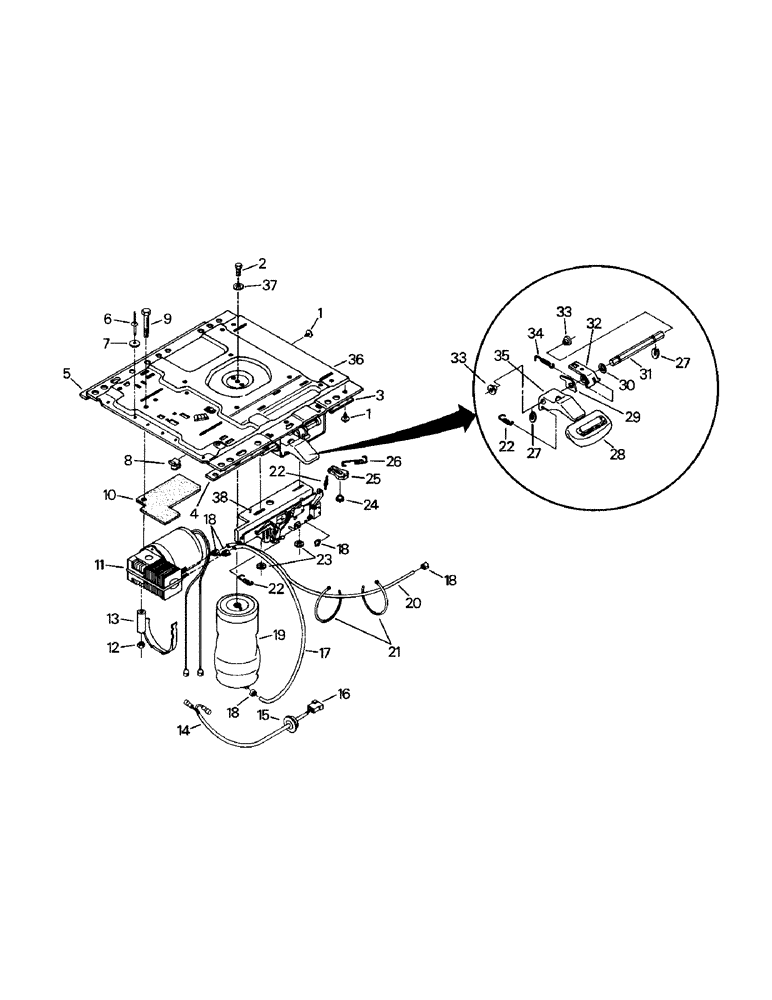

Схема запчастей Case IH CR-1280 - (01-18) - SEAT ASSEMBLY, COMPRESSOR AND MOUNTING (10) - CAB
28
11
30
38
22
5
37
18
15
27
12
3
21
10
20
34
25
8
7
6
32
23
26
19
31
4
29
22
18
14
18
2
13
27
17
22
9
33
1
35
33
18
1
24
36
16

Артикул

Название

Примечание

Количество

1

60-1613T1

FASTENER

Clip

12шт.

2

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

Capscrew

1шт.

3

60-4913T1

PLATE

Strip

1шт.

4

60-4912T1

PLATE

Strip

1шт.

5

60-1632T1

PLATE

Strip

1шт.

6

1-2503

RIVET,Pop, .146" x .425"

Pop Rivet

1шт.

7

19-699

WASHER,3/16"

1шт.

8

60-4881T1

CLIP,ELECTRICAL

Cable Clip, included with Ref. 36

2шт.

9

40-1234

CAPSCREW,Hex, M6 x 75mm, Gr 8.8

1шт.

10

60-4880T1

SEAL, RUBBER

Foam

1шт.

11

60-4896T91

COMPRESSOR

Assy., Includes Refs. 1, 6, 7, 9, 10, 12, 13, 18, 21 and 28

1шт.

12

40-1235

LOCK NUT

Nut

1шт.

13

60-4897T1

BRACKET

Mounting Bracket

1шт.

14

60-4909T91

HARNESS

Compressor Wire Harness Assy., Includes Refs. 1, 6, 7, 15, 16, 21 and 28

1шт.

15

NSS

NOT SOLD SEPARAT

Grommet

1шт.

16

NSS

NOT SOLD SEPARAT

Connector

1шт.

17

60-4898T1

HOSE,450.00 mm

1шт.

18

60-4895T1

CLAMP

5шт.

19

60-4900T91

SPRING

Air Spring Assy., Includes Refs. 1, 2, 6, 7, 18, 28 and 37

1шт.

Also includes Refs, 21, 22 and 27 on preceding Figure.

1шт.

20

60-4899T1

HOSE

1шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

22

60-4883T1

SPRING

2шт.

23

60-4882T1

RING, SNAP

Retainer

2шт.

24

NSS

NOT SOLD SEPARAT

Bushing

1шт.

25

60-4886T91

STOP

Assy., Includes refs. 1, 6, 22, 24, 26, 27, 28 and 33

1шт.

26

60-4889T1

SPRING

1шт.

27

40-1157

RING

Retaining Ring

2шт.

28

60-4884T1

HANDLE

1шт.

29

NSS

NOT SOLD SEPARAT

Ratchet

1шт.

30

60-4892T1

WASHER

1шт.

31

NSS

NOT SOLD SEPARAT

Pivot Shaft

1шт.

32

NSS

NOT SOLD SEPARAT

Angle

1шт.

33

60-4887T1

FLANGED BEARING

BEARING, Flanged

2шт.

34

60-4891T1

SPRING

1шт.

35

60-4890T91

SLIDE

Carrier Assy., Includes Refs. 1, 22 and 27 - 34

1шт.

36

60-4877T91

SEAT

Upper Seat Mount, Includes Ref. 8

1шт.

37

40-1154

LOCK WASHER

Lock Washer

1шт.

38

60-4894T91

SLIDE

Bar Mount Assy., Includes Refs. 1, 6, 7, 8, 18, 22, 23 and 28

1шт.

Also includes Refs, 21, 22 and 27 on preceding Figure.

1шт.

Выбрано товаров: 40
