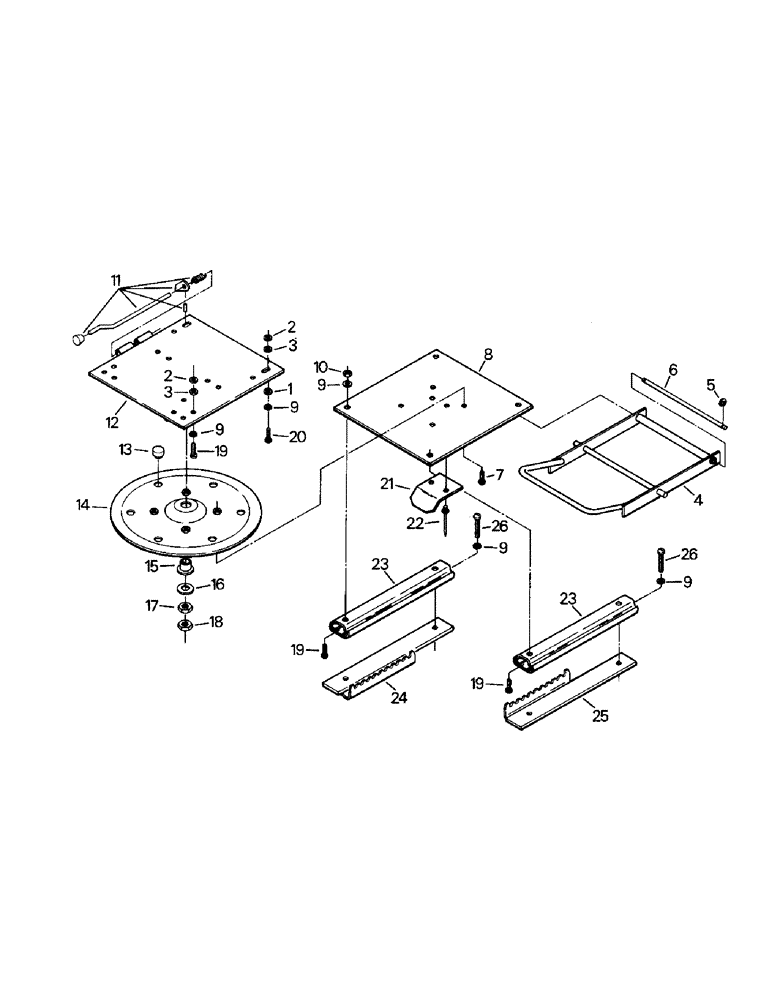

Запчасти Case IH CR-1280 (01-16) - SEAT ASSEMBLY, SWIVEL AND SLIDE (10) - CAB

1

40-1007

WASHER

2шт.

2

60-1679T1

WASHER

4шт.

3

60-1667T1

WASHER

4шт.

4

60-3249T1

HANDLED SHAFT

Handle Assy

1шт.

5

40-1182

CIRCLIP,M6

Snap Ring

2шт.

6

60-3248T1

ROD

1шт.

7

60-4843T1

SCREW

4шт.

8

60-3250T1

PLATE ASSY.

Plate

1шт.

9

40-1154

LOCK WASHER

Lock Washer

12шт.

10

40-1121

NUT

4шт.

60-3255T91

LINK

Swivel Plate Assy, consists of Ref. 11-18

1шт.

11

60-3247T1

LEVER ASSY.

Lever Assy

1шт.

12

60-3246T91

PLATE ASSY.

Plate consists of Ref. 15)

1шт.

13

60-1619T1

BUSHING

6шт.

14

60-1625T1

LINK

Swivel Plate

1шт.

15

60-1621T1

BUSHING

1шт.

16

-1624T1

Thrust Bearing

1шт.

17

60-1623T1

NUT

1шт.

18

60-1622T1

LOCK NUT

1шт.

19

40-1164

BOLT,Sl Cheese Hd, M8 x 1.25 x 16mm

Machine Screw

6шт.

20

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

Capscrew

2шт.

21

60-3368T1

SPRING

Plate

1шт.

22

1-2503

RIVET,Pop, .146" x .425"

Pop Rivet

2шт.

23

60-1577T1

RAIL ASSY.

Seat Slide Rail

2шт.

24

60-3251T1

PLATE

Locking Plate (Right)

1шт.

25

60-3253T1

PLATE

Locking Plate (Left)

1шт.

26

40-1233

SCREW,Sl Cheese Hd, M8 x 1.25 x 20mm

Machine Screw

4шт.
