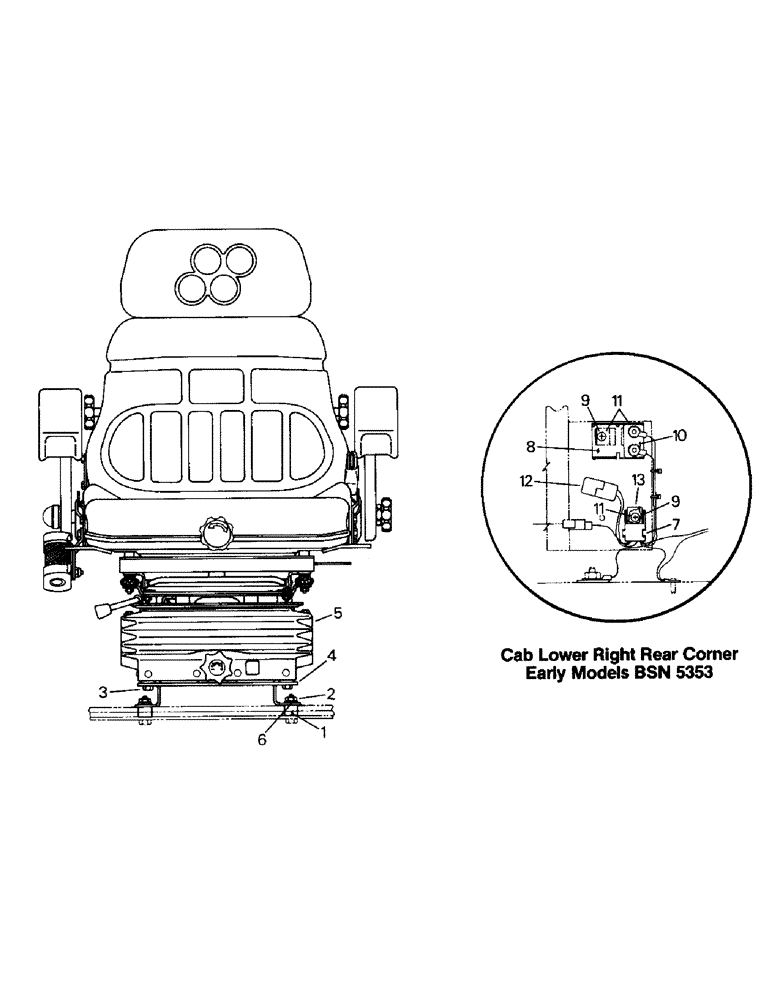

Запчасти Case IH CR-1280 (01-15) - SEAT AND SUSPENSION (10) - CAB

60-5738T91

SUSPENSION BLOCK

SUSPENSION ASSY., complete

1шт.

1

60-2286T1

SPACER

4шт.

2

19-82

LOCK NUT

Lock Nut

4шт.

3

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

metric

4шт.

4

60-4789T2

ANCHOR

Seat Mount

1шт.

5

60-4793T91

SEAT ASSY.

Air Seat Assy., see the following 7 Figures

1шт.

6

19-463

WASHER,1/2", SAE

4шт.

7

20-2259T1

HARNESS

Wire Harness, used on BSN 5353, Serial Range: -5353

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

20-2259T2

HARNESS

Wire Harness, will be used with the later style instrumentation group, see Figure 02-12, used on ASN 5353 (approx 7-18-85), Start Serial: 5353

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

8

20-1171T1

SUPPORT

Circuit Breaker Bracket

1шт.

9

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

Machine Screw

3шт.

10

22-671

BREAKER

Circuit Breaker, 15 amp

1шт.

11

19-481

SERRATED NUT

Keps Nut

5шт.

12

22-738

DIODE

1шт.

13

1-7877

RELAY

1шт.

60-5738T91

SUSPENSION BLOCK

ASSY. complete

1шт.
