Запчасти Case IH CR-1280 (01-10) - RADIO AND MOUNTING, ALPINE ELECTRONIC CASSETTE RADIO (10) - CAB

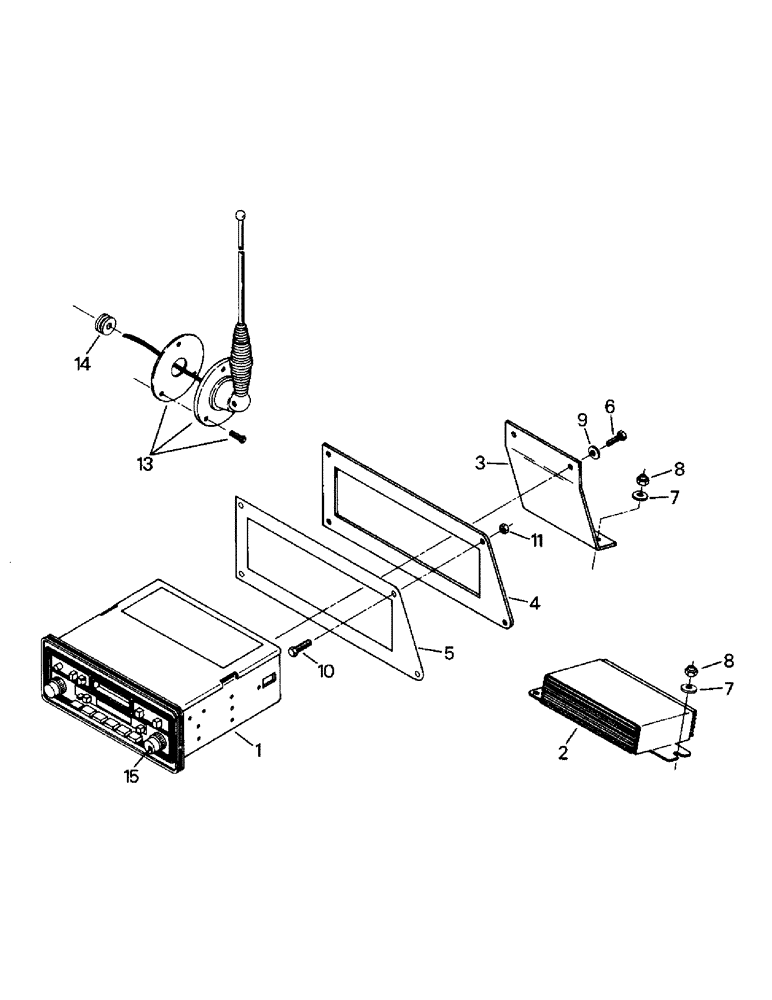

Схема запчастей Case IH CR-1280 - (01-10) - RADIO AND MOUNTING, ALPINE ELECTRONIC CASSETTE RADIO (10) - CAB
3
2
14
4
13
6
9
15
10
8
11
8
7
7
1
5

Артикул

Название

Примечание

Количество

1

60-3400T1

RADIO

Electronic Cassette Radio (incl Ref. 15)

1шт.

2

60-3401T1

AMPLIFIER

1шт.

3

60-4638T1

MOUNTING PARTS

Mount

1шт.

4

60-4243T1

PANEL

1шт.

5

60-4242T1

DECAL

1шт.

6

40-1172

BOLT,Hex, M4 x 6mm, Gr 8.8

Machine Screw (metric)

2шт.

7

9421089

WASHER

5шт.

8

9411893

LOCK NUT,#10-32, GB

5шт.

9

19-603

LOCK WASHER,Ext Tooth, #10

2шт.

10

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

Machine Screw

4шт.

11

19-5621

LOCK NUT,#8-32, GB

4шт.

12

20-2029T1

HARNESS

Speaker Wire Harness (not shown)

1шт.

13

1-4545

ANTENNA

1шт.

14

22-766

GROMMET

1шт.

15

60-3408T1

KIT

Knob Set (Left)

1шт.

60-3403T1

KIT

Knob Set (Right)

1шт.

Выбрано товаров: 16
