Запчасти Case IH CR-1280 (01-07) - OVERHEAD DOOR (10) - CAB

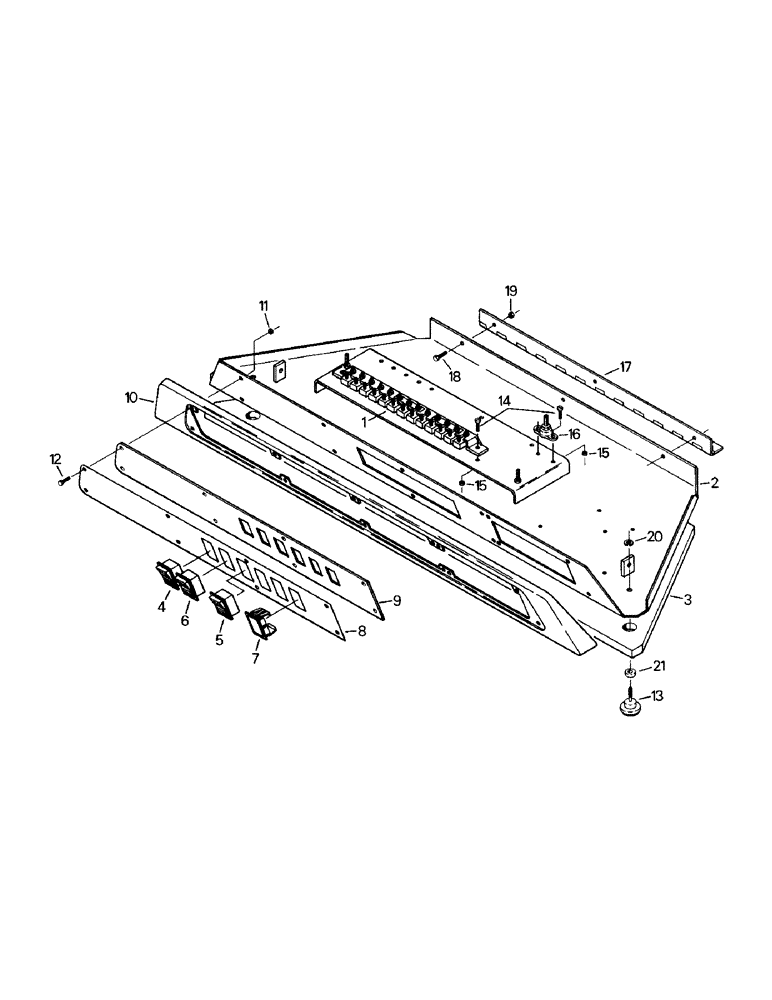

Схема запчастей Case IH CR-1280 - (01-07) - OVERHEAD DOOR (10) - CAB
16
11
18
20
15
8
15
10
3
14
21
13
19
4
7
6
2
9
1
17
12
5

Артикул

Название

Примечание

Количество

1

Circuit Breaker Assy., see Fig. 02-14

1шт.

2

60-4027T1

DOOR

Console Door

1шт.

3

60-4028T1

INSULATOR

Door Insulation

1шт.

4

20-1968T1

SWITCH

Rocker Switch

1шт.

5

1-6154

SWITCH

Rocker Switch

1шт.

Used only with ether start option

1шт.

6

1-6150

SWITCH

Rocker Switch

3шт.

7

60-3210T1

PLUG

Switch Hole Plug, qty. 2 without ether start option

1шт.

8

60-4031T1

DECAL

1шт.

9

60-4032T1

PANEL

1шт.

10

60-4009T1

COVER

Console Door Cover

1шт.

11

19-5621

LOCK NUT,#8-32, GB

8шт.

12

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

Machine Screw

8шт.

13

60-4033T1

BUTTON

Knob Assy

2шт.

14

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

Machine Screw

4шт.

15

19-481

SERRATED NUT

Keps Nut

4шт.

16

20-1451T1

BLOCK

Junction Block

1шт.

17

60-4034T1

HINGE

1шт.

18

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

Machine Screw

3шт.

19

19-1081

LOCK NUT

Lock Nut

3шт.

20

2-7333T1

WASHER

Snap Ring, Replaces 196130

2шт.

Old part must not be used in this area only. Part may be used elsewhere when shown.

1шт.

21

19-6126

SPACER

2шт.

Выбрано товаров: 23
