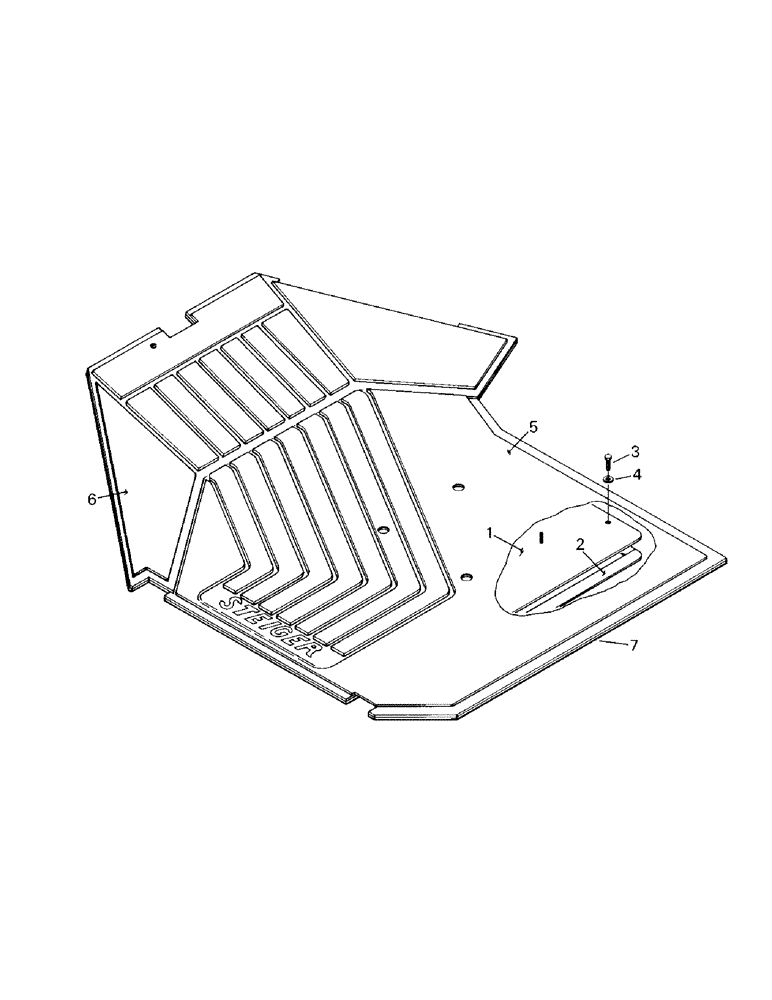

Запчасти Case IH CR-1280 (01-03) - FLOORBOARD MAT AND TRIM (10) - CAB

1

60-4551T1

Cover (27 3/4 x 28 3/4)

1шт.

Old part must be used prior to serial number. break. New part will work after serial no. break only.

1шт.

60-5041T1

COVER

(25 3/4 x 28 3/4)

1шт.

Old part must be used prior to serial no. break. New part will work after serial no. break only.

1шт.

2

60-4597T1

FOAM

4шт.

3

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

6шт.

4

19-106

WASHER,5/16", SAE

6шт.

5

60-4575T2

FLOOR MAT

Floormat (604575T1)

1шт.

Old part must be used prior to serial no. break only. When stock is depleted.

1шт.

6

60-4576T1

MAT

Toe Mat

1шт.

7

60-4577T4

FOAM

Floorboard Foam, consists of (60-4577T1) (60-4577T2) (B) (60-4577T3)

1шт.

Old part must be used prior to serial no. break only. When stock is depleted.

1шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.
