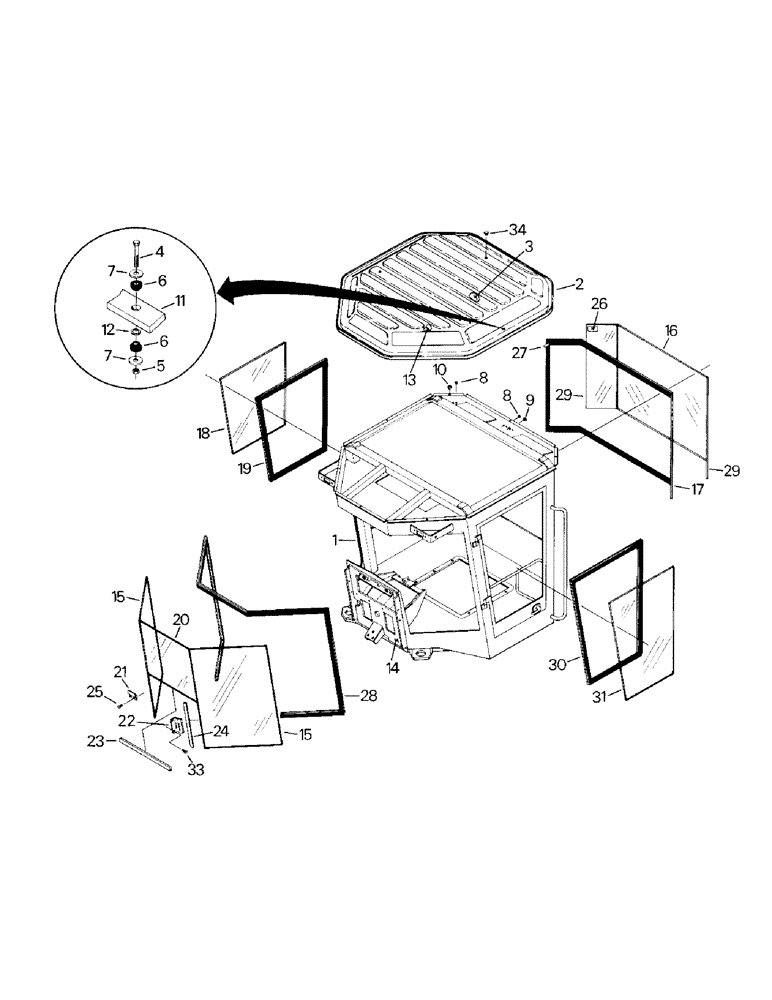

Запчасти Case IH CR-1280 (01-01) - CAB AND WINDOWS (10) - CAB

1

Cab Structure (special order item)

1шт.

2

60-4801T2

TOP

Outer Cab Top

1шт.

3

60-4550T2

Cab Top Foam

1шт.

4

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew

8шт.

5

19-1081

LOCK NUT

Locknut

8шт.

6

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

16шт.

7

9421394

WASHER

16шт.

8

60-4582T1

PLUG

13шт.

9

31-2175

PLUG

4шт.

10

60-4401T1

PLUG

2шт.

11

60-4583T1

FOAM

1шт.

12

60-4584T1

WASHER

8шт.

13

60-4657T1

FOAM

Cab Top Foam

1шт.

14

60-4481T1

FOAM

1шт.

15

60-3540T1

CAB GLASS ASSY

Front Angled Window

2шт.

16

60-3859T1

GLASS

Rear Window

1шт.

17

60-3860T1

SEAL, GLASS

Molding

1шт.

18

60-3856T1

GLASS,CAB

Side Window

1шт.

19

60-3857T1

SEAL, GLASS

Molding

1шт.

20

60-4315T1

WINDSHIELD

Front Window

1шт.

21

60-2774T1

CLAMP

Clip

2шт.

22

60-4146T1

SUPPORT

Bracket

2шт.

23

60-3039T1

SEAL, GLASS

Window Isolator

1шт.

24

60-3040T1

SEAL, GLASS

Window Isloator

2шт.

25

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

4шт.

26

2-6879T1

DECAL

Emergency Exit Decal

1шт.

27

20-1814T1

SEAL, GLASS

Heat Shrink Sleeve

1шт.

28

60-4682T1

MOLDING

1шт.

29

60-3858T1

GLASS

Rear Angled Window

2шт.

30

60-4602T1

SEAL, GLASS

Molding

1шт.

31

60-4603T1

GLASS

Door Window

1шт.

32

1-1055

SEALANT

RTV Sealant (tube) (used on Refs. 15, 16, 20 & 29)

1шт.

33

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Tapping Screw

4шт.

34

31-2595

PLUG

3шт.
