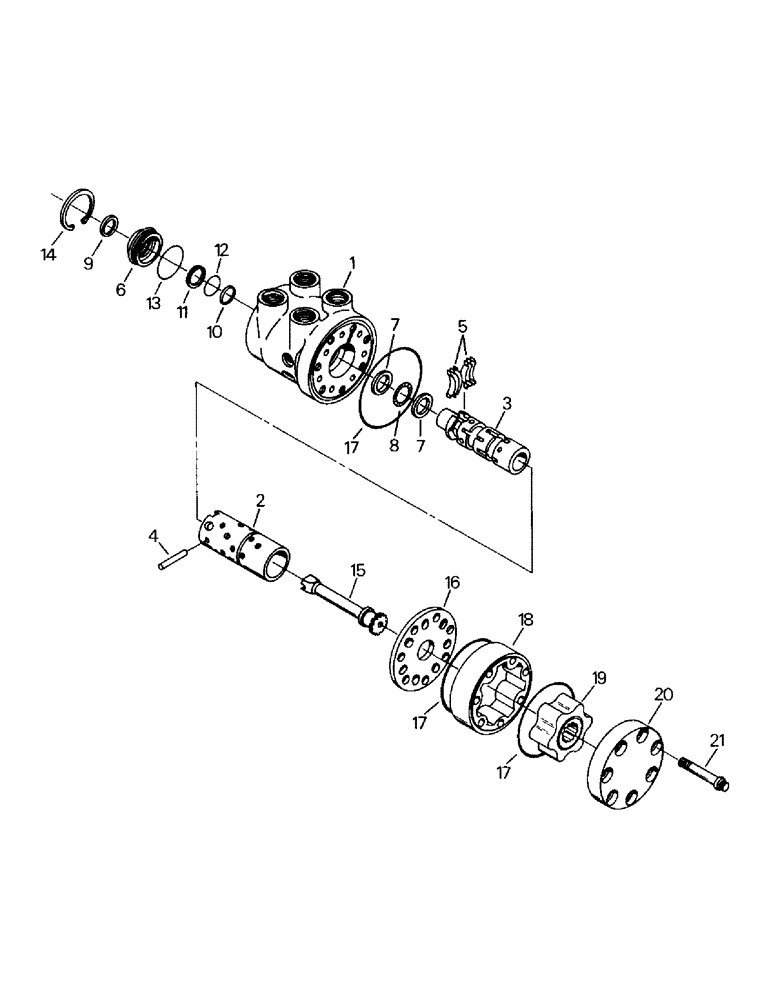

Запчасти Case IH CR-1280 (08-07) - STEERING CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

50-2304T91

UNIT

Steering Control Valve Assy, consists of Ref. 1-21

1шт.

1-5

NAP

Control Parts Assy, consists of Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

Valve Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Control Sleeve

1шт.

3

NSS

NOT SOLD SEPARAT

Control Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

6шт.

6

50-2701T1

RETAINER

Front Retainer

1шт.

7

2-2064

RING RACE

Thrust Race

2шт.

8

18-1693

NEEDLE BEARING

Needle Thrust Bearing

1шт.

9

18-137

OIL SEAL

1шт.

10

50-2702T1

SEAL

1шт.

11

50-2703T1

BACK-UP RING

Backup Ring

1шт.

12

50-2704T1

O-RING

1шт.

13

50-2705T1

O-RING

1шт.

14

2-1354

RING, SNAP

Snap Ring

1шт.

15

50-2706T1

SHAFT

Drive Shaft

1шт.

16

50-2707T1

WEAR PLATE

1шт.

17

50-2708T1

O-RING

3шт.

50-2709T1

GEROTOR

Assy, consists of Ref. 18-19

1шт.

18

NSS

NOT SOLD SEPARAT

Gerotor Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Gerotor Star

1шт.

20

50-2710T1

CAP

End Cap

1шт.

21

19-1716

12 PT SCREW,Flg, 1/2" - 20 x 3", Gr 8

12-Pt Capscrew

7шт.
