Запчасти Case IH CR-1280 (02-17) - TRANSMISSION WIRING (06) - ELECTRICAL

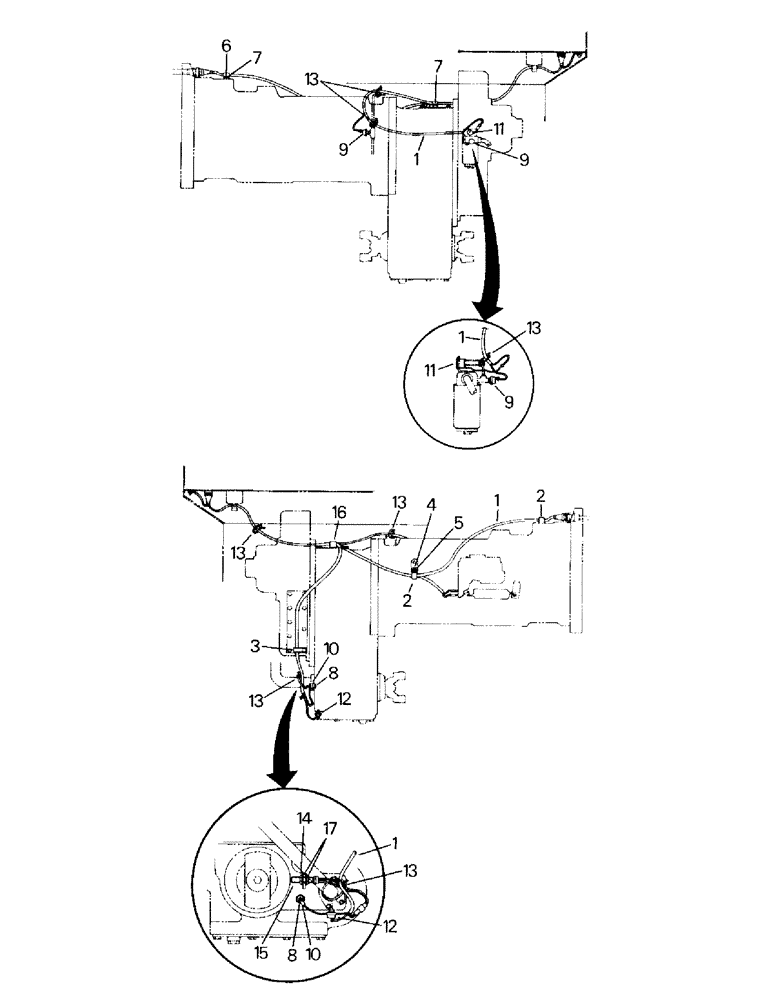

Схема запчастей Case IH CR-1280 - (02-17) - TRANSMISSION WIRING (06) - ELECTRICAL
5
6
2
10
8
17
9
4
15
13
8
12
2
1
14
11
7
13
9
13
16
11
10
1
13
3
7
12
13
1
9
1

Артикул

Название

Примечание

Количество

1

20-2033T3

HARNESS

Trans Wire Harness (20-2033T2)

1шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.

2

31-1775

CLAMP

2шт.

3

31-1862

CLAMP

1шт.

4

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Capscrew

1шт.

5

19-106

WASHER,5/16", SAE

1шт.

6

19-889

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

Capscrew

1шт.

7

19-224

WASHER,3/8", SAE

2шт.

8

31-178

BUSHING

Reducer

1шт.

9

1-2805

SWITCH

Oil Press. Switch

2шт.

This is also the sender for the charge pump

1шт.

10

47-4181

IGNITION SWITCH

Oil Temp Switch

1шт.

11

20-1388T1

GAUGE

Hydraulic Filter Gauge

1шт.

12

20-2016T2

SWITCH

Vacuum Switch (20-2016T1)

1шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

5шт.

14

19-2257

NUT

Jam Nut

1шт.

15

20-2129T1

SENSOR

Magnetic Sensor

1шт.

16

31-2488

CLAMP

1шт.

17

19-711

WASHER,5/8", SAE

2шт.

Выбрано товаров: 20
