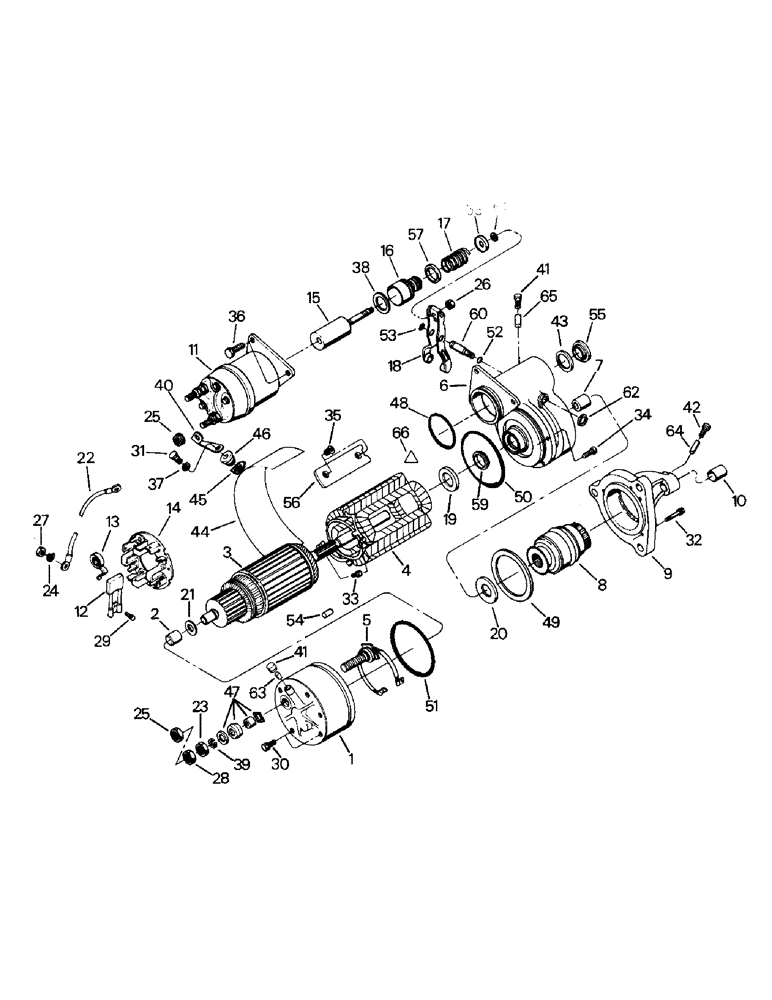

Запчасти Case IH CR-1280 (02-08) - STARTER ASSEMBLY, LATER DELCO REMY (06) - ELECTRICAL

20-2386T91

STARTING MOTOR

Starter Assy (Cat 3306 Engine) Delco #1990370, consists of Ref. 1-65

1шт.

20-2384T91

STARTING MOTOR

Starter Assy (Cummins L10 Engine) Delco #1990352, consists of ref. nos. 1-66

1шт.

33-1029T91

PACKAGE

Brush Includes: Ref. 12, 13, 20, 30 and 51

1шт.

33-1030T91

KIT

Bushing package, Includes: Ref. 2, 7, 10, 19, 20, 21, 26, 30, 41, 42, 43, 48, 49, 50, 51, 59, 63, 64 and 65

1шт.

33-1031T91

LEVER

Shift package, Includes: Ref.18, 26, 43, 48, 49, 53, 60 and 62

1шт.

1

33-1009T91

COVER

Frame (incl Refs, 2, 41 & 63)

1шт.

2

NSS

NOT SOLD SEPARAT

Bushing

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

3

33-1010T1

ARMATURE

1шт.

4

33-1011T1

COIL

Field Coil (4 coils)

1шт.

5

33-1012T1

ELECTRICAL WIRE

Lead

1шт.

6

33-1013T91

HOUSING

Lever Housing (incl Refs. 7, 20, 41, 48, 50, 59 & 65)

1шт.

7

NSS

NOT SOLD SEPARAT

Bushing

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

8

33-1014T1

DRIVE ASSY.

Drive Assy

1шт.

9

33-1015T91

HOUSING

Drive Housing (incl Refs. 10, 42, 49 & 64)

1шт.

10

NSS

NOT SOLD SEPARAT

Bushing

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

11

33-1016T1

SOLENOID

Switch

1шт.

12

NSS

NOT SOLD SEPARAT

Brush

1шт.

Part of brush package, P/N 33-1029T91

1шт.

13

NSS

NOT SOLD SEPARAT

Brush Spring

1шт.

Part of brush package, P/N 33-1029T91

1шт.

14

33-1017T91

LARGE PLATE

Brush Plate Assy (incl Refs. 12, 13 & 29)

1шт.

15

33-1018T1

PLUNGER

1шт.

16

33-1019T1

BOOT

1шт.

17

22-1062

SPRING

Plunger Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Shift Lever

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

19

NSS

NOT SOLD SEPARAT

Washer

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

21

NSS

NOT SOLD SEPARAT

Washer

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

22

33-1020T1

ELECTRICAL WIRE

Lead Assy

1шт.

23

22-1126

LOCK WASHER

1шт.

24

19-297

LOCK WASHER,#10

Washer, Lock, #10

1шт.

25

20-1329T1

NUT

2шт.

26

NSS

NOT SOLD SEPARAT

Nut

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

27

19-308

NUT,#10 - 32

1шт.

28

19-289

JAM NUT,1/2" - 13, Gr 5

1шт.

20

NSS

NOT SOLD SEPARAT

Screw

1шт.

Part of brush package, P/N 33-1029T91

1шт.

30

NSS

NOT SOLD SEPARAT

Screw & Washer Assy

1шт.

Part of brush package, P/N 33-1029T91

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

31

33-1021T1

SCREW

1шт.

32

22-1134

HEX SOC SCREW

Screw

1шт.

33

20-1332T1

SCREW

1шт.

34

22-1132

SELF-TAP SCREW

1шт.

35

22-1135

SCREW

1шт.

36

33-1022T1

SCREW

& Washer Assy

1шт.

37

2-1324

WASHER

1шт.

38

22-1140

WASHER

1шт.

39

22-1139

WASHER

1шт.

40

33-1023T1

ELEC CONNECTOR

Connector

1шт.

41

NSS

NOT SOLD SEPARAT

Oil Reservoir Cup

2шт.

Part of bushing kit, P/N 33-1030T91

1шт.

42

NSS

NOT SOLD SEPARAT

Oil Reservoir Cup

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

43

NSS

NOT SOLD SEPARAT

Gasket

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

44

33-1024T1

INSULATOR

1шт.

45

33-1025T1

INSULATOR

1шт.

46

33-1026T1

INSULATOR

1шт.

47

33-1027T1

INSULATOR

1шт.

48

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

49

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

50

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

51

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of brush package, P/N 33-1029T91

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

52

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

53

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

54

33-1028T1

PIN

Spring Pin

1шт.

55

22-1045

PLUG

Inspection Plug

1шт.

56

22-1055

PLATE

Pole Shoe

1шт.

57

22-1057

RETAINER

1шт.

58

22-1058

OIL SEAL

Retainer

1шт.

59

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

60

NSS

NOT SOLD SEPARAT

Shaft

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

61

20-2112T1

RING, SNAP

Snap Ring

1шт.

62

NSS

NOT SOLD SEPARAT

Snap Ring

1шт.

Part of shift lever package, P/N 33-1031T91

1шт.

63

NSS

NOT SOLD SEPARAT

Felt Wick

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

64

NSS

NOT SOLD SEPARAT

Felt Wick

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

65

NSS

NOT SOLD SEPARAT

Felt Wick

1шт.

Part of bushing kit, P/N 33-1030T91

1шт.

66

2-1306

ISOLATOR

Insulator

1шт.
