Запчасти Case IH CR-1280 (02-01) - ENGINE WIRING, CAT 3306 ENGINE (06) - ELECTRICAL

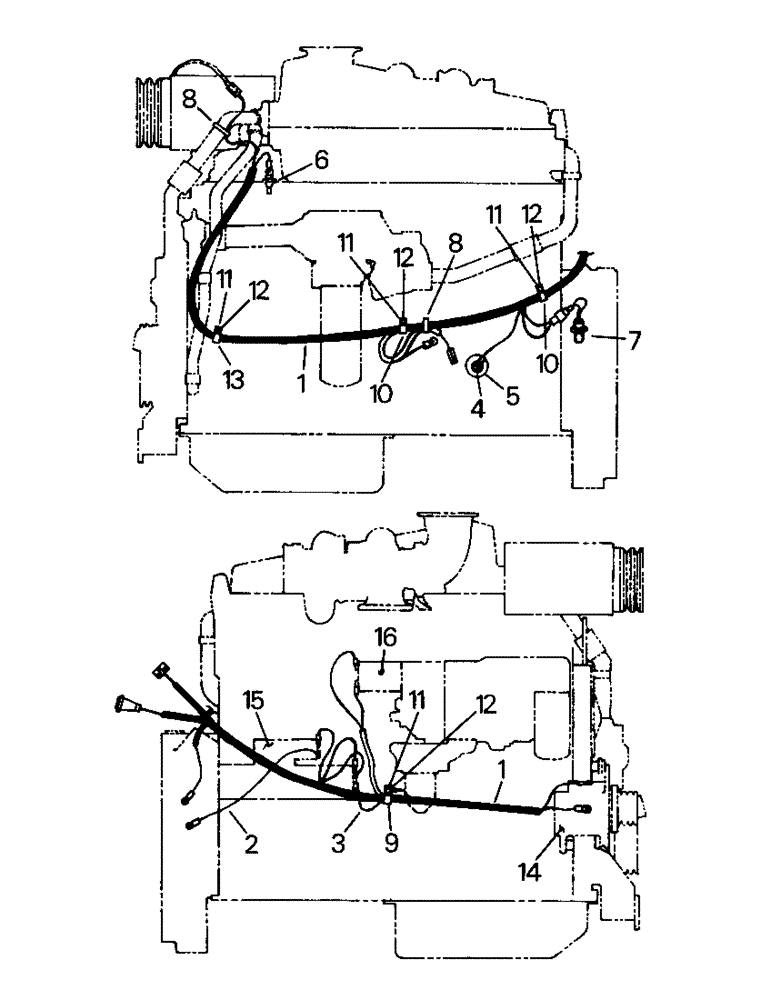

Схема запчастей Case IH CR-1280 - (02-01) - ENGINE WIRING, CAT 3306 ENGINE (06) - ELECTRICAL
11
10
5
3
14
12
11
6
1
13
7
8
15
12
8
11
12
9
2
12
16
4
10
1
11

Артикул

Название

Примечание

Количество

1

20-2030T1

HARNESS

Engine Wire Harness

1шт.

2

20-2031T1

ELECTRICAL WIRE

Wire

1шт.

3

20-2164T1

HARNESS

Wire (20-1829T1)

1шт.

Old part must not be used in this area only. Part may be used elsewhere when shown.

1шт.

4

1-2227T2

SENDER UNIT

Oil Press, Sender

1шт.

5

31-607

REDUCER

1шт.

6

22-681

IGNITION SWITCH

Water Temp Switch

1шт.

7

20-2129T1

SENSOR

Magnetic Sensor

1шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

9

31-2488

CLAMP

1шт.

10

22-1109

CLAMP

2шт.

11

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Capscrew

4шт.

12

19-106

WASHER,5/16", SAE

4шт.

13

31-1862

CLAMP

1шт.

14

Alt Assy (see Fig. 2-5)

1шт.

15

Starter Assy (see Fig. 2-6 & 2-8)

1шт.

16

NAP

Fuel Solenoid (Cat part)

1шт.

20-1587T1

MAGNET

5/8-18 UNF

1шт.

20-1854T1

SENSOR

5/8-18 UNF, wire size 9", round connector

1шт.

20-2357T1

SENSOR

3/4-1 UNF, wire size 9", oval connector

1шт.

A48264

CABLE

3/4-20 UNF wire size 9", round connector

1шт.

Выбрано товаров: 21
