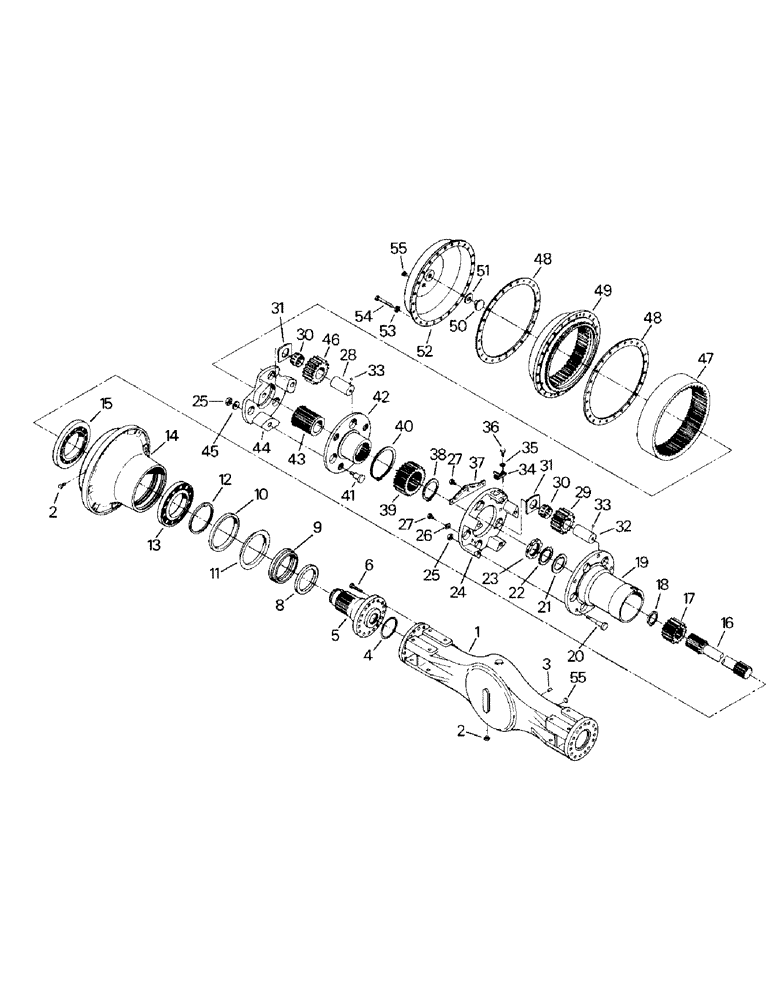

Запчасти Case IH CR-1280 (04-53) - AXLE ASSEMBLY, K598.64/74 (04) - Drive Train

90-5901T91

AXLE

Assy (Front)

1шт.

90-5900T91

AXLE

Assy (Rear)

1шт.

1

90-4483T2

Axle Housing

1шт.

2

90-4484T1

PLUG

Magnetic Plug

3шт.

3

90-4485T1

DOWEL

Pin

1шт.

4

16-1505

O-RING,136mm ID x 15mm Width

2шт.

5

90-4481T1

LARGE PIN

Stub Axle

2шт.

6

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

Capscrew

32шт.

7

Not used on this model

2шт.

8

90-5989T1

SEALING RING

Seal

2шт.

This seal has been subbed to a 90-5989T2. On units prior to JCB0030523 they might need the shoulder part number 90-7086T1. MU. TSG. 9/99

1шт.

9

90-4479T91

OIL SEAL

Shoulder Ring Assy (incl Ref. 8)

2шт.

90-5988T1

SEALING RING

& Sleeve Assy, consists of Ref. 10-11

2шт.

11

NSS

NOT SOLD SEPARAT

Wear Sleeve

2шт.

12

90-4477T1

DISC

Disk

2шт.

13

90-4500T1

TAPERED BEARING,169.97mm ID x 239.97mm OD x 0mm W

2шт.

14

90-4499T1

HUB

Wheel Hub

2шт.

15

90-4498T1

TAPERED BEARING,170mm ID x 230mm OD x 32mm W

2шт.

16

90-2536T1

SHAFT

Axle Shaft (Long)

1шт.

90-2535T1

SHAFT

Axle Shaft (Short)

1шт.

17

90-4519T1

PINION

Sun Gear

2шт.

18

16-1596

RING, SNAP

Snap Ring

2шт.

19

90-4533T91

REDUCER

Planet Carrier Assy (inner) (incl Refs. 19, 20, 24-27, 29-33 & 35-37)

1шт.

20

90-4538T1

SCREW

Shouldered Capscrew

10шт.

21

90-4497T1

DISC

Disk

2шт.

22

90-4496T1

LOCK WASHER

Lock Washer

2шт.

23

90-4495T1

NUT

Shaft End Nut

2шт.

24

NSS

NOT SOLD SEPARAT

Planet Carrier (Inner) (see Ref. 19)

2шт.

25

16-1598

NUT

16шт.

26

90-4531T1

LOCK

ing Tab

6шт.

27

16-1186

CAPSCREW,Hex, M8 x 15mm, Cl 10.9

12шт.

28

90-2567T1

PIN

Planet Pinion Shaft

6шт.

29

1-8339

PINION

Planet Pinion Gear (Outer)

10шт.

30

1-8340

BEARING, NEEDLE

Bearing

32шт.

31

1-8341

SPACER

Plate

32шт.

32

90-4536T1

LARGE PIN

Planet Pinion Shaft

4шт.

90-2567T1

PIN

Planet Pinion Shaft

6шт.

33

16-1607

BALL

16шт.

34

90-4532T1

LARGE PLATE

Oil Plate

2шт.

35

40-1149

LOCK WASHER

Lock Washer

4шт.

36

40-1220

CAPSCREW,Hex, M6 x 12mm, Cl 10.9

4шт.

37

90-4530T1

LARGE PLATE

Baffle Plate

2шт.

38

16-1623

RING, SNAP

Snap Ring

2шт.

39

16-1622

SUN GEAR

2шт.

40

90-4528T1

RING, SNAP

Snap Ring

2шт.

41

16-1608

SCREW,Hex Shldr

Clamping Screw

6шт.

42

90-4523T91

REDUCER

Planet Carrier Sub-Assy (Outer) (incl Refs. 25, 42, 44 & 45)

2шт.

90-4522T91

REDUCER

Planet Carrier Assy (Outer) (incl Refs. 25, 28, 30, 31, 33 & 38-46)

2шт.

43

90-4526T1

PINION

Sleeve Gear

2шт.

44

90-4524T1

CARRIER

Planet Carrier (Outer) (see Ref. 42)

2шт.

45

16-1599

WASHER

6шт.

46

90-4525T1

PINION

Planet Gear

6шт.

47

90-4529T1

GEAR, RING

Ring Gear

2шт.

48

90-4413T1

GASKET

4шт.

49

90-4521T1

GEAR, RING

Double Ring Gear

2шт.

50

90-2555T1

LARGE PIN

Support Pin

2шт.

51

90-2554T1

SHIM

1шт.

52

90-4520T1

COVER

2шт.

53

16-1592

LOCK WASHER

Lock Washer

48шт.

54

40-1171

BOLT,Hex, M14 x 1.5 x 50mm, Gr 10.9

Capscrew

48шт.

55

90-2523T1

PLUG

3шт.
