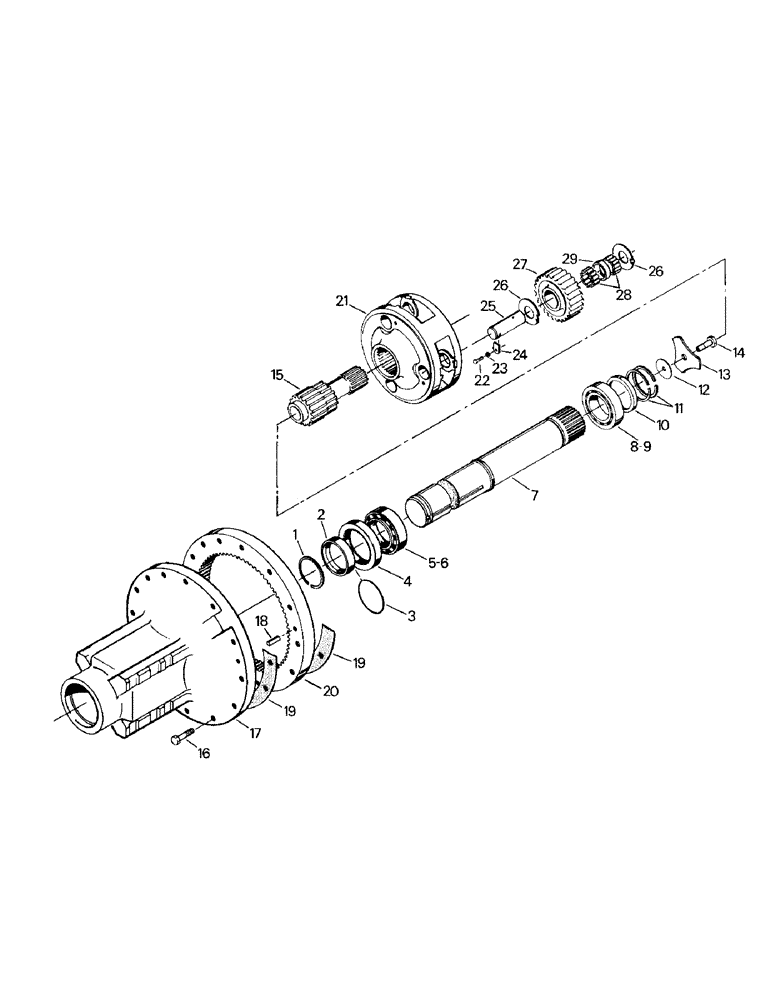

Запчасти Case IH CR-1280 (04-51) - PLANETARY AND AXLE END, ADJUSTABLE BAR AXLE (04) - Drive Train

1

C70930980

RING, SNAP

Snap Ring

2шт.

225 HP Engines

1шт.

C70930809

RING, SNAP

Snap Ring

2шт.

280 HP engines

1шт.

2

C70272825

RETAINER

Bearing Retainer

2шт.

225 HP Engines

1шт.

C70272827

RETAINER

Bearing Retainer

2шт.

280 HP engines

1шт.

3

C70923599

O-RING

2шт.

225 HP Engines

1шт.

C70923833

O-RING

280 HP engines

2шт.

280 HP engines

1шт.

4

C70928058

OIL SEAL

Seal

2шт.

225 HP Engines

1шт.

C70930838

OIL SEAL

Seal

2шт.

280 HP engines

1шт.

5

C70928056

CONE

Bearing Cone

2шт.

225 HP Engines

1шт.

C70929475

BEARING, CONE

Bearing Cone

2шт.

280 HP engines

1шт.

6

C70928057

CUP

Bearing Cup

2шт.

225 HP Engines

1шт.

C70929474

BEARING, CUP

Bearing Cup

2шт.

280 HP engines

1шт.

7

C70269496

SHAFT

Axle Shaft

2шт.

225 HP Engines

1шт.

C70271097

AXLE SHAFT

2шт.

280 HP engines

1шт.

8

C70053508

BEARING, CUP

Bearing Cup

2шт.

225 HP Engines

1шт.

C70181742

CUP

Bearing Cup

2шт.

280 HP engines

1шт.

9

C70053509

BEARING

Cone

2шт.

225 HP Engines

1шт.

C70930839

BEARING, CONE

Bearing Cone

2шт.

280 HP engines

1шт.

10

C70267127

RETAINER

Bearing Retainer

2шт.

225 HP Engines

1шт.

C70269469

RETAINER

Bearing Retainer

2шт.

280 HP engines

1шт.

11

C70928775

RING, SNAP

Snap Ring (.101) (2 per section)

4шт.

C70928776

Snap Ring (.104)

4шт.

C70928777

Snap Ring (.107)

4шт.

C70928778

Snap Ring (.110)

4шт.

C70928779

Snap Ring (.113)

4шт.

C70928780

Snap Ring (.116)

4шт.

C70928781

Snap Ring (.119)

4шт.

C70928782

Snap Ring (.122)

4шт.

C70928783

RING, SNAP

Snap Ring (.125)

4шт.

C70928784

Snap Ring (.128)

4шт.

C70928785

Snap Ring (.131)

4шт.

C70928786

Snap Ring (.134)

4шт.

C70928787

Snap Ring (.137)

4шт.

C70928788

RING, SNAP

Snap Ring (.140)

4шт.

C70928789

Snap Ring (.143)

4шт.

C70928790

Snap Ring (.146)

4шт.

C70928791

Snap Ring (.149)

4шт.

C70928792

Snap Ring (.152)

4шт.

C70928793

Snap Ring (.155)

4шт.

C70928794

Snap Ring (.158)

4шт.

12

C70267110

SHIM

(.090)

1шт.

C70267111

SHIM

(.100)

1шт.

C70267112

SHIM

(.015)

1шт.

13

C70267104

Retainer Plate

2шт.

14

19-252

BOLT,3/4" - 10 x 1 3/4", Gr 5

Capscrew

2шт.

15

C70262183

GEAR

Sun Gear (RH Front) (LH Rear)

2шт.

C70262181

GEAR

Sun Gear (LH Front) (RH Rear)

2шт.

16

C70921455

Capscrew, 5/8 UNC x 4-1/2

22шт.

C70928060

Capscrew, 5/8 UNC x 6

6шт.

17

C70271461

Final Drive Sleeve

2шт.

225 HP Engines

1шт.

C70275900

Final Drive Sleeve

2шт.

280 HP engines

1шт.

18

C70202532

DOWEL

Pin

4шт.

19

1-1055

SEALANT

RTV Sealant (tube)

1шт.

20

C70271524

GEAR, RING

Ring Gear

2шт.

21

C70267125

CARRIER

Planet Carrier

2шт.

22

19-284

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Capscrew

6шт.

23

19-117

LOCK WASHER,3/8"

3/8"

6шт.

24

C70265784

PLATE, LOCKING

Lock Shaft

6шт.

25

C70265793

PIN

Planet Pin

6шт.

26

C70270060

WASHER

Thrust Washer

12шт.

C70269681

GEAR

Planet Gear Assy, consists of Ref. 27-29

6шт.

27

NSS

NOT SOLD SEPARAT

Planet Gear

6шт.

28

C70269796

KIT

Needle Roller Kit (52 rollers)

6шт.

29

C70265797

SPACER

6шт.
