(03-06) - A/C AND HEATER CONTROLS

Запчасти Case IH CR-1225 (03-06) - A/C AND HEATER CONTROLS (03) - Climate Control

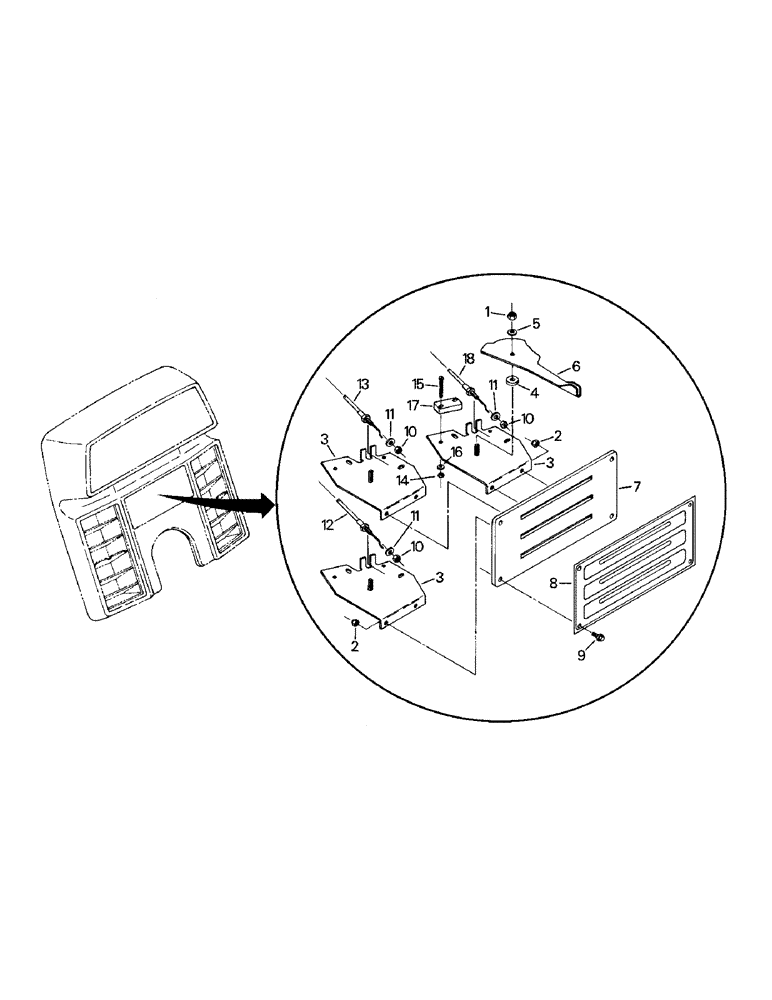

Схема запчастей Case IH CR-1225 - (03-06) - A/C AND HEATER CONTROLS (03) - Climate Control
11
10
11
8
2
11
6
12
18
4
7
3
2
10
15
13
17
5
16
3
9
14
10
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19-1081

LOCK NUT

Lock Nut

3шт.

2

9411893

LOCK NUT,#10-32, GB

6шт.

3

60-4365T2

SUPPORT

Bracket (60-4365T1)

3шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.

4

60-4208T1

SPACER

3шт.

5

19-5924

SPRING WASHER

Spring Washer

3шт.

6

60-4529T1

LEVER

3шт.

7

60-4221T1

PANEL

1шт.

8

60-4138T1

DECAL

Control Decal

1шт.

9

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

Tapping Screw

4шт.

10

19-76

NUT,1/4"-20, G5

3шт.

11

19-105

WASHER,1/4", SAE

3шт.

12

60-4372T1

CABLE

Valve Cable

1шт.

13

60-4543T1

CABLE

Door Cable

1шт.

14

225-14104

NUT,#4-40

4шт.

15

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

Machine Screw

4шт.

16

19-6100

WASHER

4шт.

17

20-1976T1

IGNITION SWITCH

Micro Switch

2шт.

18

60-4781T1

CABLE

Door Cable

1шт.
