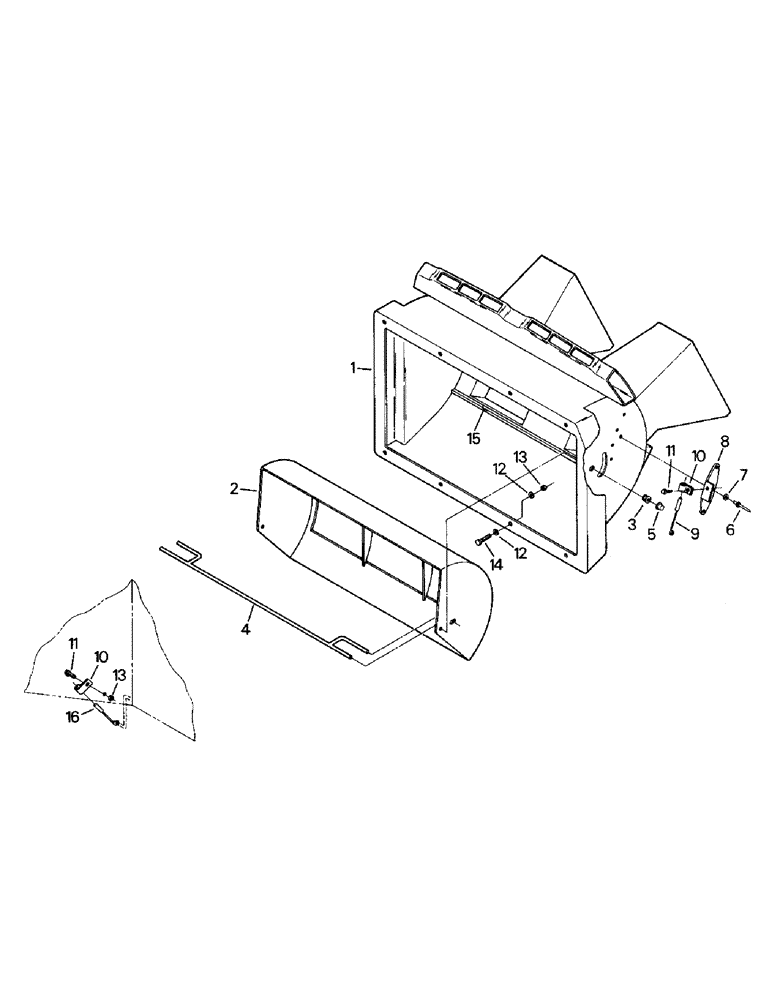

Запчасти Case IH CR-1225 (03-05) - A/C AND HEATER PLENUM (03) - Climate Control

1

60-4917T1

DEFLECTOR

Plenum

1шт.

2

60-4698T1

FLAP

Door

1шт.

3

19-6129

NYLON BEARING

Bearing

2шт.

4

60-4680T1

PIVOT

1шт.

5

19-5758

PUSH-ON NUT

Speed Nut

2шт.

6

19-157

RIVET

Pop Rivet

5шт.

7

19-6100

WASHER

5шт.

8

60-4976T1

FIXING BRACKET

Cable Mount

1шт.

9

60-4543T1

CABLE

Door Cable

1шт.

10

31-2511

CLAMP

2шт.

11

9423772

SCREW,Hex Washer, #10 - 24 x 5/8"

Machine Screw

2шт.

12

19-195

WASHER,#10

16шт.

13

19-5563

LOCK NUT

Lock Nut

10шт.

14

163-46

SCREW,Hex, #10 - 24 x 1", Gr 5

Machine Screw

8шт.

15

60-4681T1

SEAL

1шт.

16

60-4781T1

CABLE

Door Cable

1шт.
