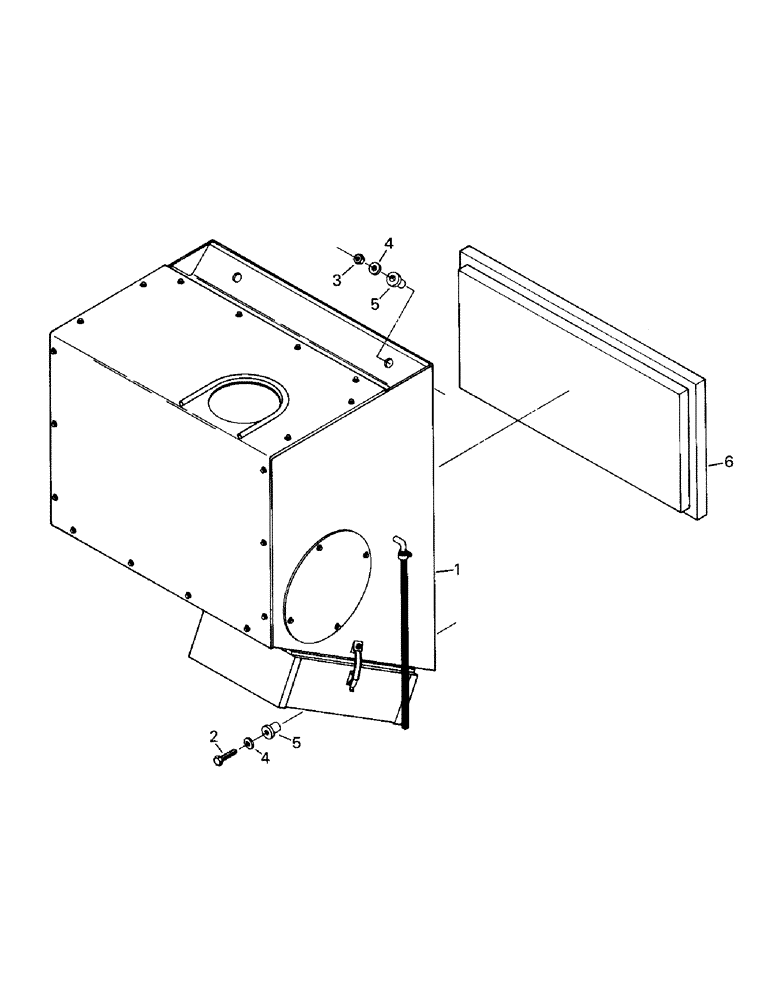

Запчасти Case IH CR-1225 (03-01) - A/C AND HEATER MODULE MOUNTING (03) - Climate Control

1

60-4780T92

CONTROL

A/C and Heater Module Assy., Replaces 60-4780T91, see Fig. 03-02 and 03-03

1шт.

Superseded, Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

Module Assy., P/N 60-4780T91 can be upgraded to the T92 version with the addition of blower motor repair kit P/N 35-1649T91

1шт.

2

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

Capscrew

2шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

2шт.

4

19-107

WASHER

4шт.

5

1-3528

MOUNTING PARTS

Rubber Mount

4шт.

6

60-3846T2

FILTER

2шт.
