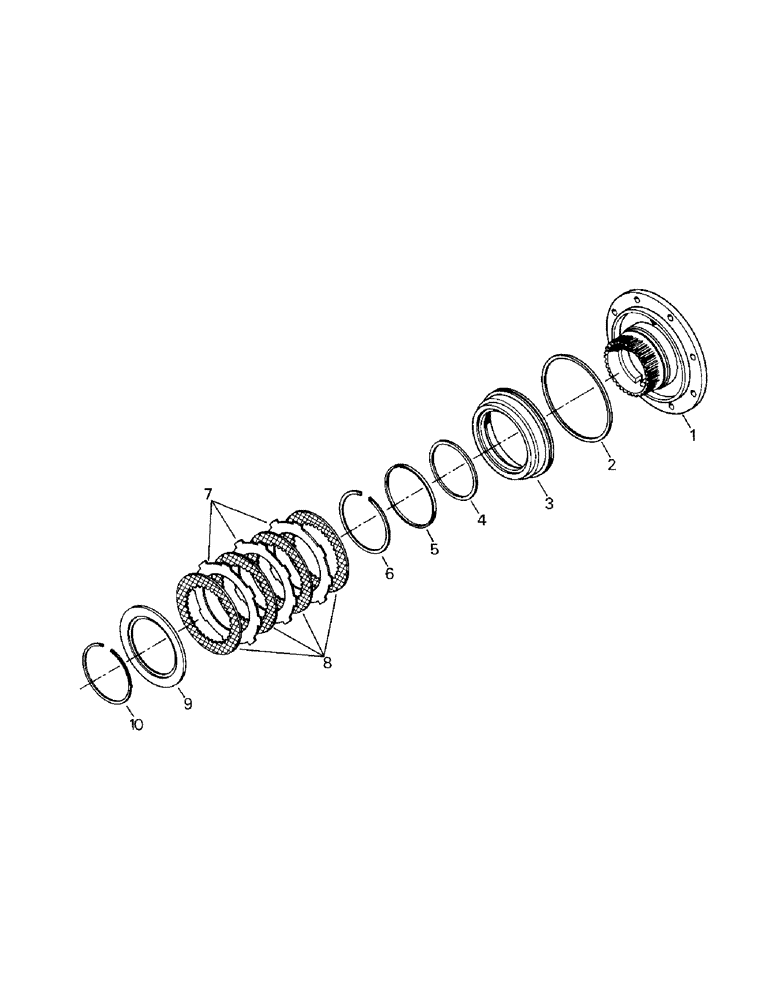

Запчасти Case IH CR-1225 (10-19) - PTO BRAKE ASSEMBLY Options & Miscellaneous

90-5759T91

BRAKE ASSY.

PTO Brake Assy, consists of Ref. 1-10

1шт.

1

90-5952T1

HUB ASSY.

Clutch Hub

1шт.

2

90-5953T1

SEALING RING

Ring

1шт.

3

90-5954T1

HOUSING

Piston Housing

1шт.

4

90-5955T1

SEALING RING

Ring

1шт.

5

90-5956T1

WAVE WASHER

Wave Washer

1шт.

6

90-5957T1

RING, SNAP

Snap Ring

1шт.

7

90-5941T1

PLATE

External Spline Plate

3шт.

8

90-5940T1

PLATE

Internal Spline Plate

4шт.

9

90-5958T1

PLATE

Clutch Backing Plate

1шт.

10

90-5959T1

RING, SNAP

Snap Ring

1шт.
