(10-11) - PRESSURE REDUCING VALVE ASSEMBLY

Запчасти Case IH CR-1225 (10-11) - PRESSURE REDUCING VALVE ASSEMBLY Options & Miscellaneous

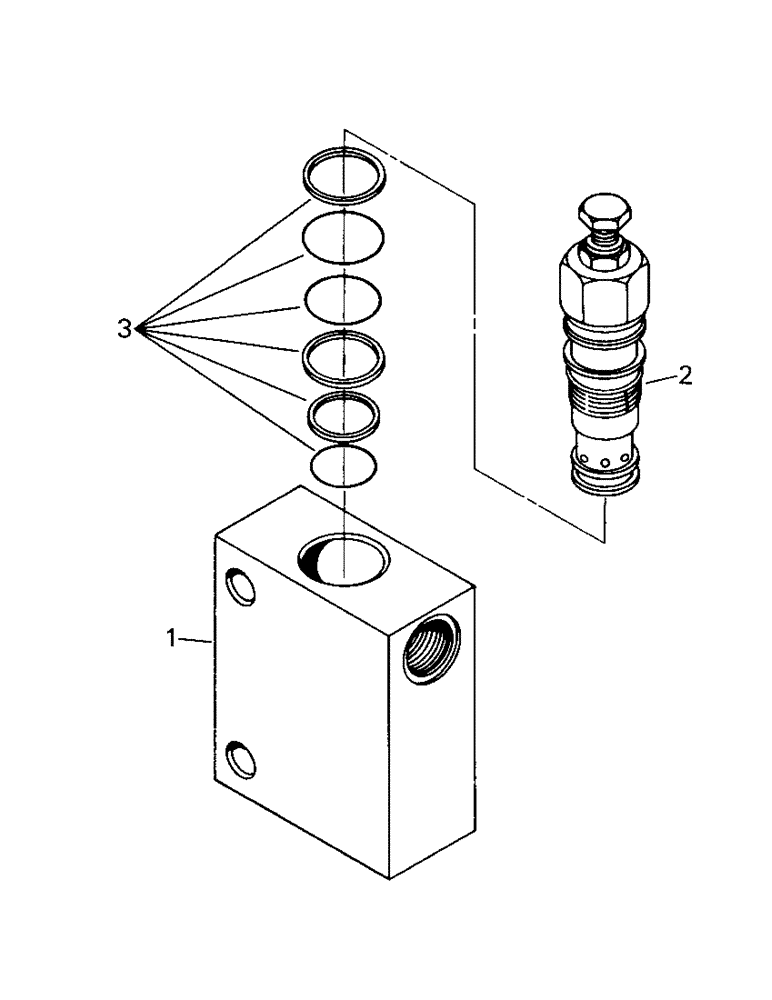

Схема запчастей Case IH CR-1225 - (10-11) - PRESSURE REDUCING VALVE ASSEMBLY Options & Miscellaneous
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1-3

50-2390T92

VALVE

Press. Reducing Valve Assy, consists of Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

50-2715T91

CARTRIDGE

Press. Reducing Cartridge (incl Ref. 3)

1шт.

3

50-2717T1

SEAL KIT

Seal Kit

1шт.
