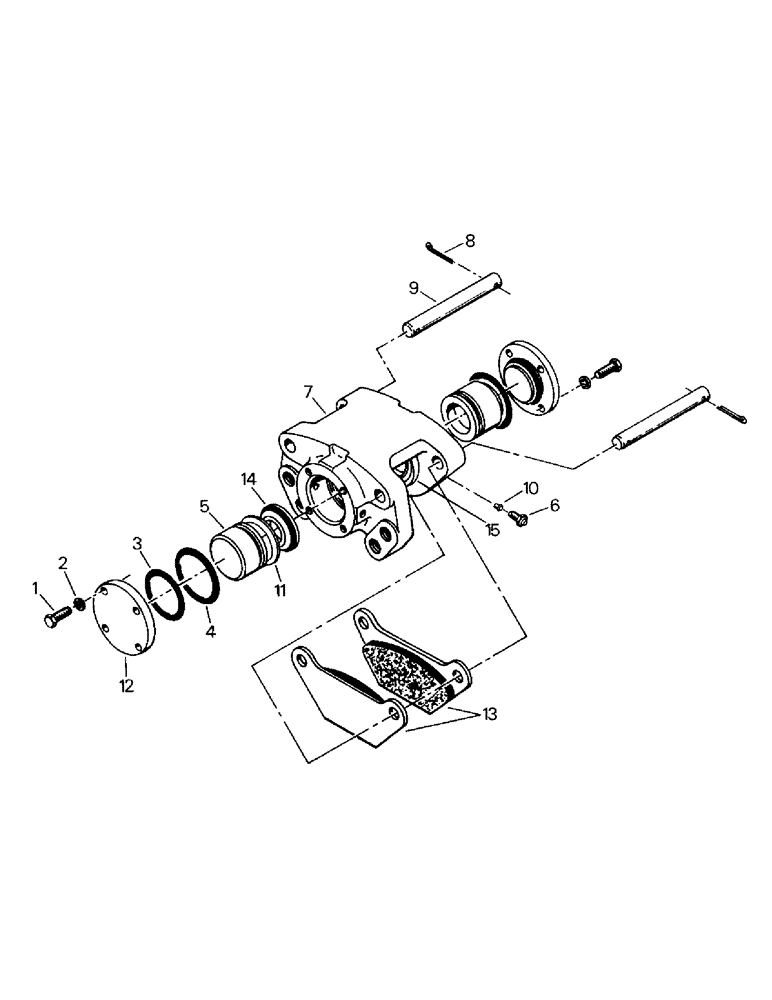

Запчасти Case IH CR-1225 (05-03) - BRAKE CALIPER ASSEMBLY (5.1) - BRAKES

90-1992T91

CALIPER

Brake Caliper Assy, consists of Ref. 1-15

1шт.

1

90-3445T1

SCREW,Hex, 3/8" - 16 x 1"

Capscrew

8шт.

2

19-117

LOCK WASHER,3/8"

3/8"

8шт.

3

90-3479T1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

O-Ring

2шт.

4

90-3480T1

SEAL

2шт.

5

90-3463T1

PISTON

2шт.

6

90-3460T1

SCREW

Bleeder Screw

3шт.

7

90-3442T1

HOUSING

Caliper Housing

1шт.

8

19-658

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

9

90-3458T1

PIN

2шт.

10

90-3459T1

INSERT

Tube Seat Insert

4шт.

11

90-3481T1

INSULATOR

2шт.

12

90-3464T1

CAP

End Cap

2шт.

13

90-3457T1

BRAKE LINING

Pad Holder Assy

2шт.

14

90-3461T1

RETAINER

2шт.

15

90-3482T1

BOOT

2шт.
