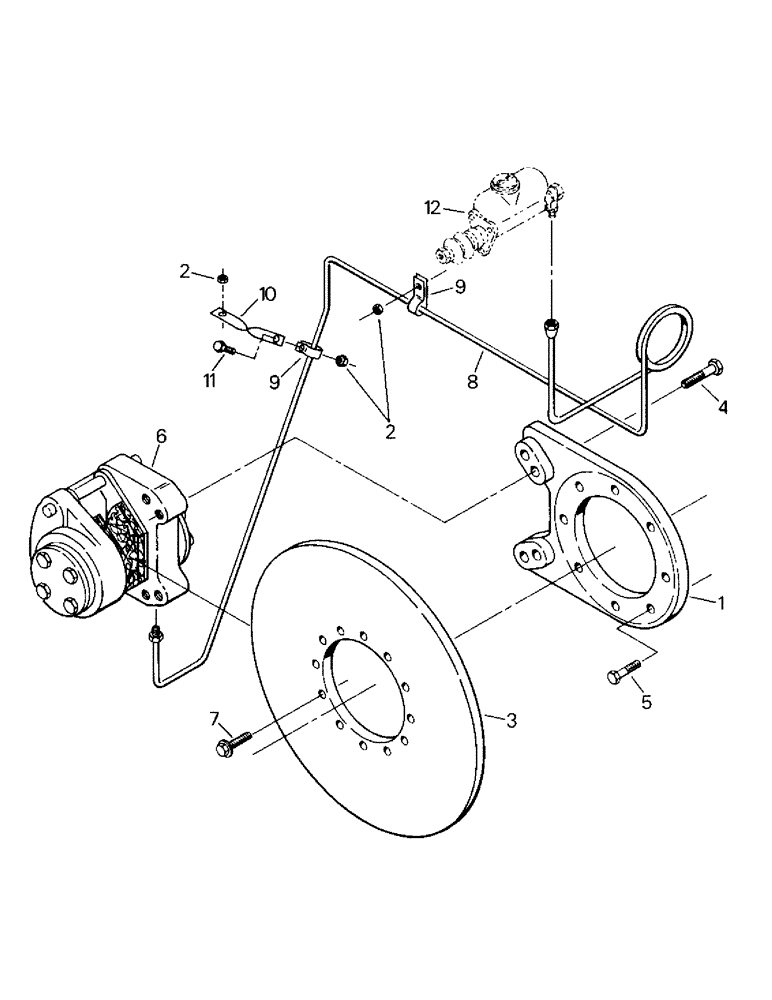

Запчасти Case IH CR-1225 (05-01) - BRAKE SYSTEM, ADJUSTABLE BAR AXLE (5.1) - BRAKES

1

90-4575T1

MOUNTING PARTS

Brake Mount

1шт.

2

19-78

SPECIAL NUT,3/8"-16, G5

4шт.

3

90-4574T1

BRAKE DISC

1шт.

4

9430876

BOLT,5/8" - 11 x 2 1/2", Gr 8

Capscrew

4шт.

5

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Capscrew

8шт.

6

Brake Caliper Assy (see Fig. 5-3)

1шт.

7

19-6007

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 8

Flanged Capscrew

12шт.

8

90-6159T1

TUBE ASSY.,.25" OD

Tube

1шт.

9

31-1862

CLAMP

3шт.

10

90-6202T1

BRACKET

1шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

1шт.

12

Brake Master Cylinder Assy (see Fig. 1-32)

1шт.
