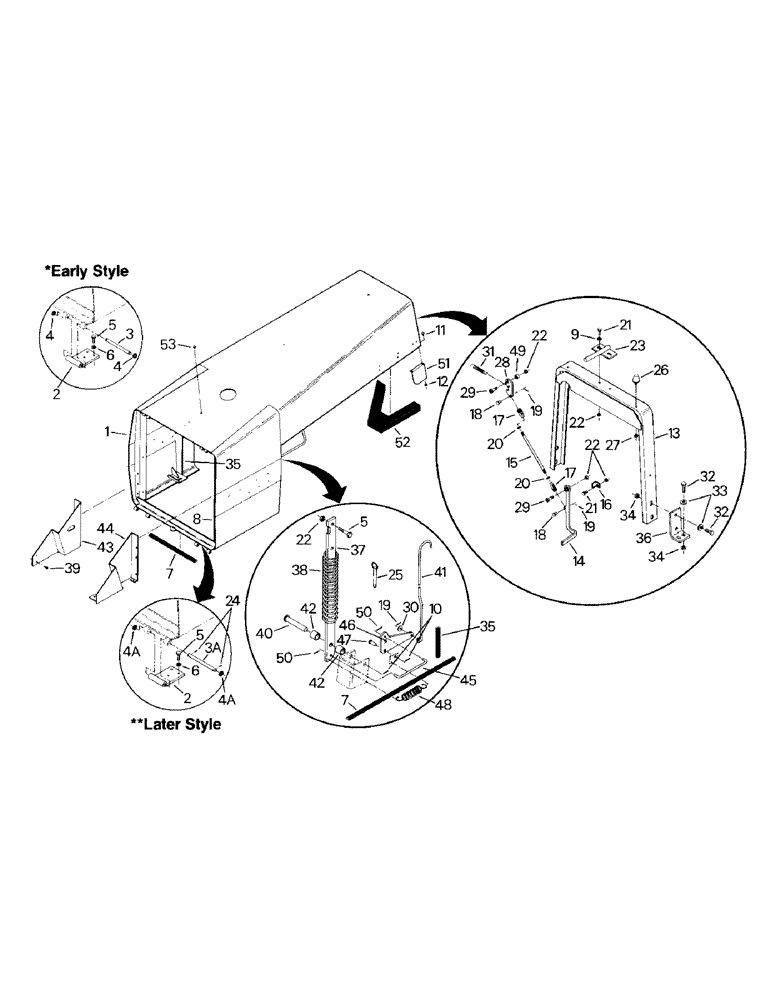

Запчасти Case IH CR-1225 (06-02) - HOOD AND MOUNTING (12) - FRAME

1

70-4180T2

HOOD

(70-7180T1)

1шт.

The T2 version of Ref. 1 will replace the T1 version; however, modifications must be made to mount the nameplates and ref. 51.

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

2

70-4263T1

HINGE

2шт.

3

70-4262T1

PIN

Hinge Pin

2шт.

Ref. 1, 3 and 4 must be used together, Ref. 3A, 4A and 24 must be used together, they cannot be intermixed. The later style, when all used together, will replace the early style

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

3a

70-4262T2

PIN,12.7mm OD x 185.67mm L

Hinge Pin

1шт.

Ref. 1, 3 and 4 must be used together, Ref. 3A, 4A and 24 must be used together, they cannot be intermixed. The later style, when all used together, will replace the early style

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

4

19-5713

OIL SEAL

Snap Ring

4шт.

Ref. 1, 3 and 4 must be used together, Ref. 3A, 4A and 24 must be used together, they cannot be intermixed. The later style, when all used together, will replace the early style

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

4a

19-5779

BUSHING

Machinery Bushing

1шт.

Ref. 1, 3 and 4 must be used together, Ref. 3A, 4A and 24 must be used together, they cannot be intermixed. The later style, when all used together, will replace the early style

1шт.

Old part can be used prior to serial no. break only. When stock is depleted, use new on all.

1шт.

5

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

8шт.

6

19-1059

WASHER

6шт.

7

70-4265T1

SEAL

2шт.

8

60-1557T1

SEAL

4шт.

9

19-107

WASHER

2шт.

10

19-168

COTTER PIN,1/8" x 1"

3шт.

11

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

Capscrew

4шт.

12

19-6082

JAM NUT

Jam Nut

4шт.

13

70-4217T1

SUPPORT

Hood Support

1шт.

14

70-4211T1

LEVER

1шт.

15

70-4213T1

ROD

1шт.

16

70-4214T1

Stop

1шт.

17

19-141

CLEVIS

2шт.

18

19-144

CLEVIS PIN,1/4" x 0.77"

2шт.

19

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

3шт.

20

19-936

JAM NUT

Jam Nut

2шт.

21

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

3шт.

22

19-341

LOCK NUT,3/8" - 16, GB

7шт.

23

70-2807T1

PLATE

Striker

1шт.

24

455734

LOCK PIN,1/8" x 3/4", Slotted

Pin, 1/8" x 3/4", Slotted

4шт.

Ref. 1, 3 and 4 must be used together, Ref. 3A, 4A and 24 must be used together, they cannot be intermixed. The later style, when all used together, will replace the early style

1шт.

Additional part added that may be added to earlier tractors if desired.

1шт.

25

19-5774

PIN

1шт.

26

70-2816T1

BUMPER

2шт.

27

19-236

JAM NUT,5/16" - 24, Gr 5

Jam Nut

4шт.

28

70-2805T1

LATCH

1шт.

29

19-6086

SCREW,Shldr, Hex Skt, 3/8" - 16 x 3/4"

Shoulder Bolt

2шт.

30

19-223

WASHER,1/4"

1шт.

31

11-8

SPRING

1шт.

32

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew

8шт.

33

19-109

WASHER,1/2"

8шт.

34

19-653

LOCK NUT

Lock Nut

8шт.

35

70-4264T1

SEAL

1шт.

36

70-4377T1

MOUNTING PARTS

Bracket

2шт.

37

70-4439T1

LEVER

Bar (Left)

1шт.

70-4438T1

LEVER

Bar (Right)

1шт.

38

19-6179

SPRING

2шт.

39

19-1061

SELF-TAP SCREW,Flg, 1/4" x 3/8"

Tapping Screw

2шт.

40

19-934

PIN

Clevis Pin

2шт.

41

70-4363T1

ROD

Trip Rod

1шт.

42

70-4348T1

SPACER

4шт.

43

60-4709T2

PLATE

1шт.

44

60-4708T1

PLATE

1шт.

45

70-4357T1

ROD

1шт.

46

70-4356T1

LEVER

1шт.

47

19-5423

CLEVIS PIN

1шт.

48

19-5820

SPRING

1шт.

49

70-2806T1

SPACER

1шт.

50

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

51

70-4518T1

Plate (Left)

1шт.

70-4517T1

Plate (Right)

1шт.

52

70-4519T1

FOAM

1шт.

53

60-4401T1

PLUG

2шт.
