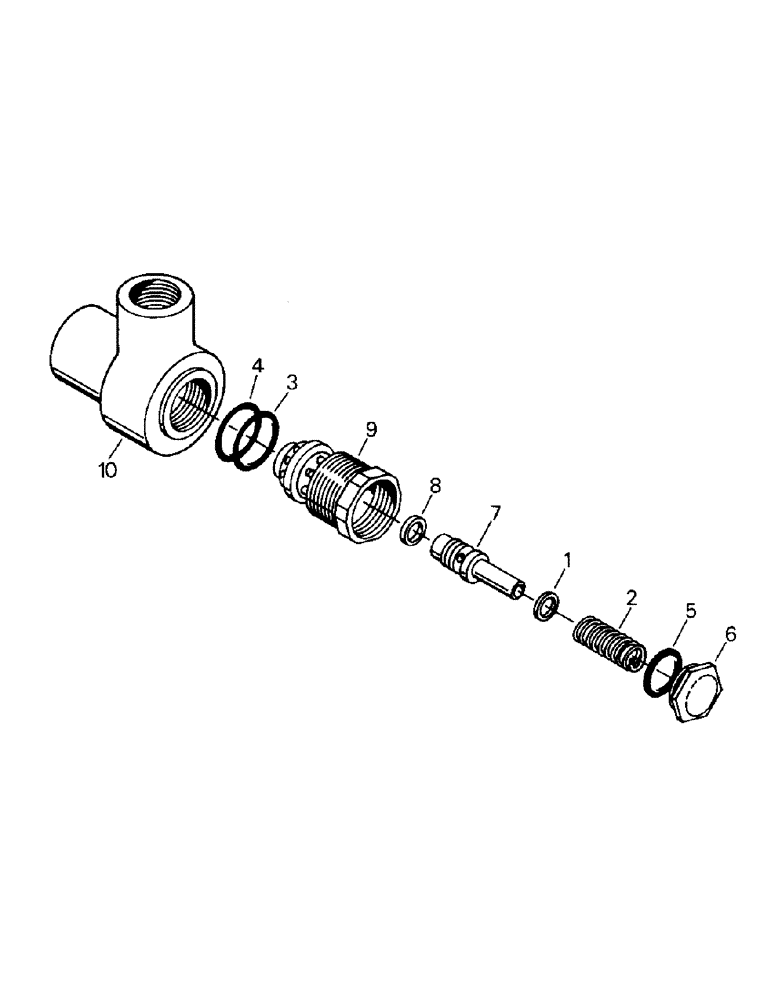

Запчасти Case IH CR-1225 (08-19) - RELIEF VALVE ASSEMBLY (07) - HYDRAULICS

50-2291T91

VALVE

Relief Valve Assy, consists of Ref. 1-10

1шт.

1

18-1509

SHIM

1шт.

2

18-1711

SPRING

1шт.

18-1418

SEAL KIT

Seal Kit, consists of Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

18-923

PLUG

Relief Cap

1шт.

7-8

18-1417

SEAL

Relief Poppet & Seal Assy, consists of Ref. 7-8

1шт.

7

NSS

NOT SOLD SEPARAT

Relief Poppet

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Ring

1шт.

9

18-924

VALVE PRESSURE RELIE

Relief Body

1шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.
