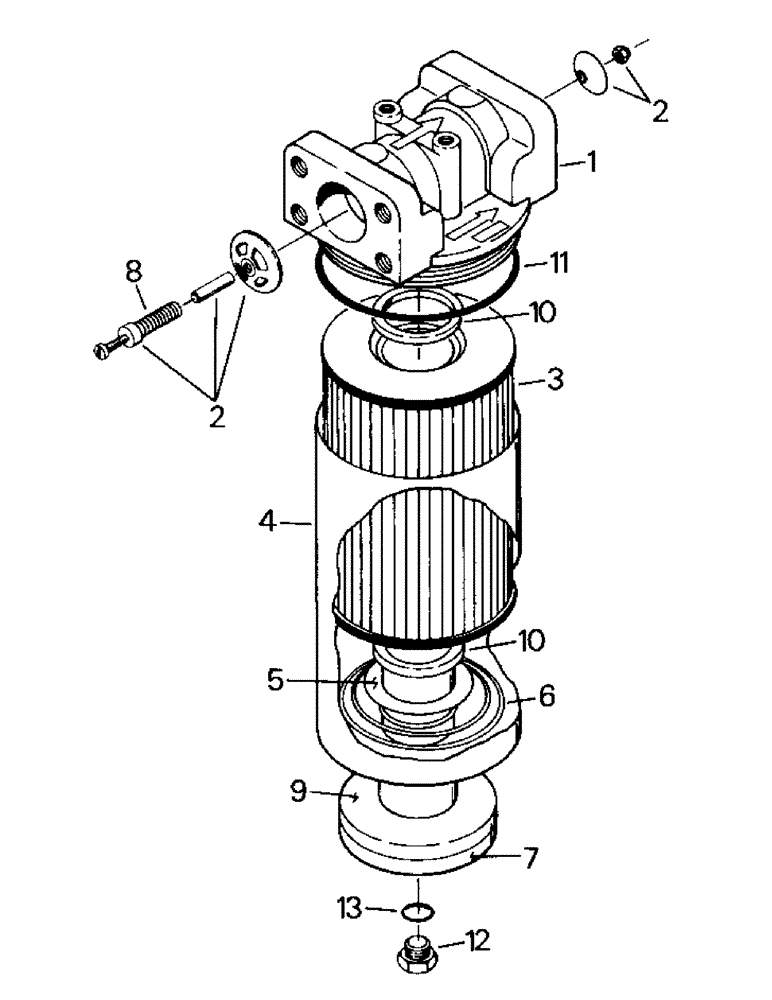

Запчасти Case IH CR-1225 (08-10) - OIL FILTER ASSEMBLY (07) - HYDRAULICS

50-1413T92

FILTER

Oil Filter Assy Consists of Ref. 7

1шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.

50-1413T93

FILTER

Oil Filter Assy Consists of Ref 7A, 12 and 13

1шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.

1

NSS

NOT SOLD SEPARAT

Filter Head

1шт.

2

50-1876T91

BY-PASS VALVE

By-Pass Assy Kit (incl Ref. 8)

1шт.

3

50-2689T91

FILTER, ELEMENT

Filter Element Kit (incl Refs. 9-11)

1шт.

4

18-95

HOUSING

Filter Housing

1шт.

Part of oil filter assy. P/N 50-1413T93

1шт.

5

18-93

WASHER

Backup Washer

1шт.

6

18-94

SPRING

Conical Spring

1шт.

7

1-6200

POST

Center Post

1шт.

Part of oil filter assy. P/N 50-1413T92

1шт.

50-2918T1

POST

Center Post

1шт.

Part of oil filter assy. P/N 50-1413T93

1шт.

Filter drain kit P/N 35-1650T91 will convert P/N 50-1413T92 to the T93 version.

1шт.

8

50-1877T1

SPRING

1шт.

9

18-96

GASKET

Center Post Gasket

1шт.

10

18-92

SEAL

Filter Element Seal

2шт.

11

18-91

O-RING

Housing Seal

1шт.

12

1-6353

PLUG

(incl Ref. 13)

1шт.

Part of oil filter assy. P/N 50-1413T93

1шт.

13

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.
