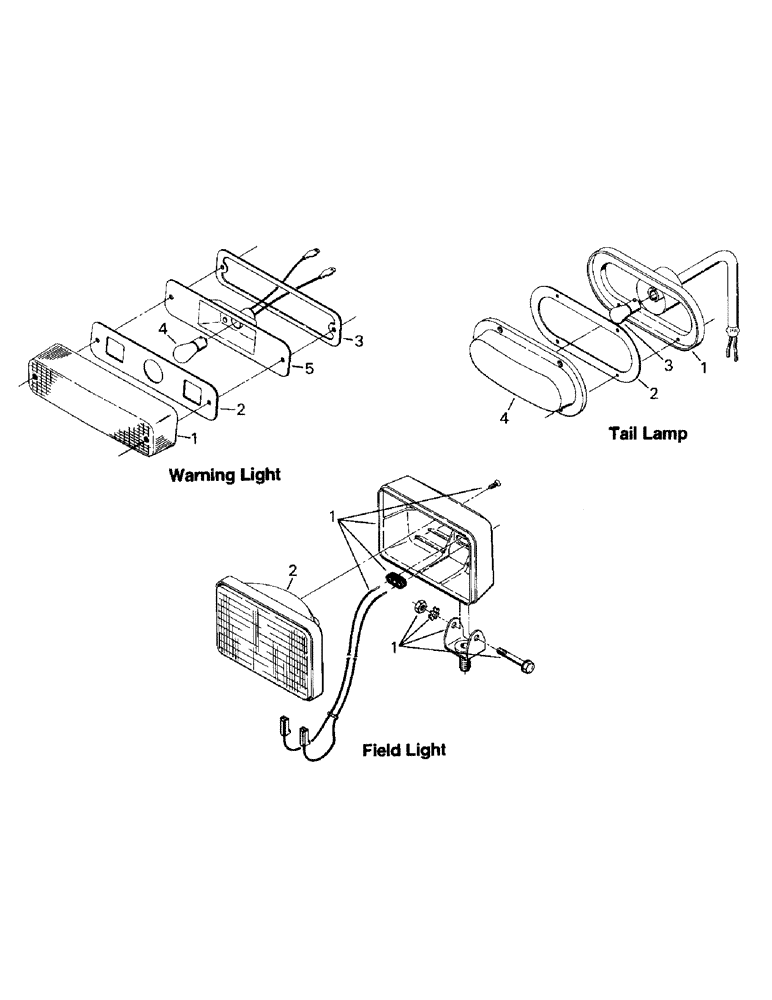

Запчасти Case IH CR-1225 (02-20) - LIGHT ASSEMBLIES (06) - ELECTRICAL

22-665

LIGHT, WARNING

WARNING LIGHT ASSY (two single terminal ends) (shown above) consists of ref nos. 1-5

1шт.

20-1950T91

LIGHT

Warning Light Assy (one double terminal end) Ref. 1-5

1шт.

1

22-666

LIGHT, WARNING

Lens

1шт.

2

22-663

GASKET

1шт.

3

22-664

GASKET

1шт.

4

22-667

BULB

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

20-1308T91

LAMP, TAIL

Tail Lamp Assy, consists of Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

Body Assy

1шт.

2

20-1661T1

GASKET

1шт.

3

22-286

BULB

1шт.

4

20-1660T1

LENS

1шт.

1-2

20-1730T91

LAMP, WORK

Field Light Assy, consists of Ref. 1-2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing & Mounting

1шт.

2

20-1822T1

LAMP BASE

Sealed Beam

1шт.
