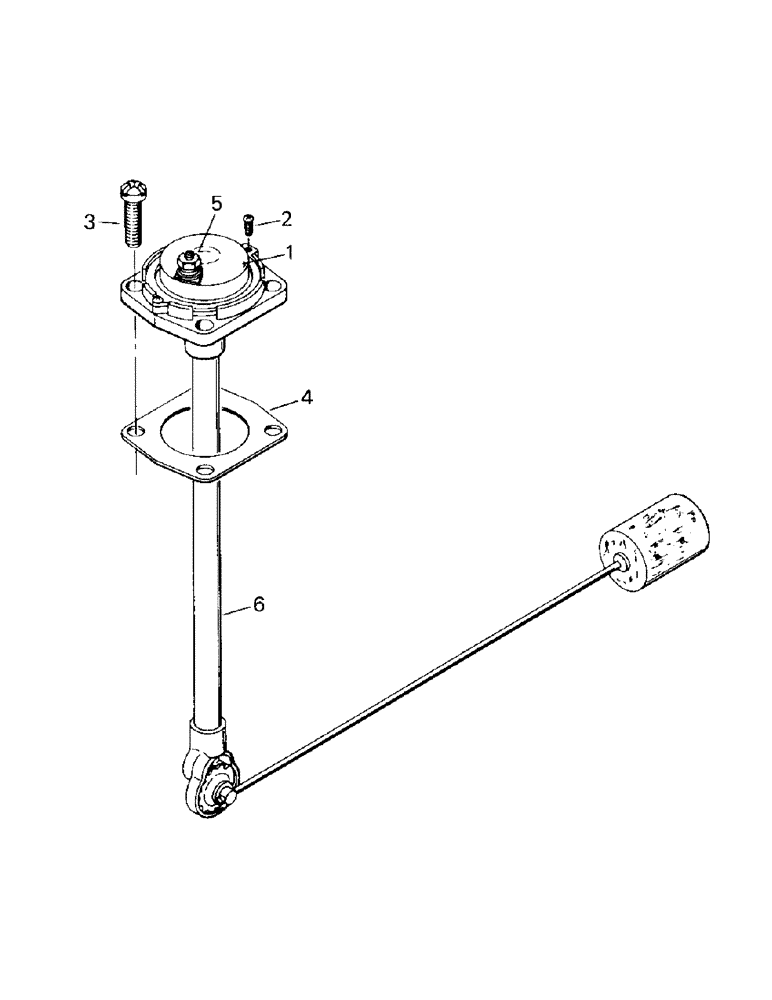

Запчасти Case IH CR-1225 (02-16) - FUEL GAUGE SENDER ASSEMBLY (06) - ELECTRICAL

1-6

20-2361T91

SENDER UNIT

Fuel Gauge Sender Assy (01-8352T91) consists of Ref. 1-6

1шт.

Old part must not be used in this area only. Part may be used elsewhere when shown.

1шт.

1

20-1379T1

DIAL

1шт.

2

159229

SCREW,Cross Pan Hd, #6 - 32 x 1/4"

Machine Screw

2шт.

3

19-5814

BOLT (MACHINE),Pan, 5/16" x 5/8"

Machine Screw

4шт.

4

20-1380T1

GASKET

1шт.

5

19-308

NUT,#10 - 32

2шт.

6

NSS

NOT SOLD SEPARAT

Sender Assy

1шт.
