Запчасти Case IH CP-1400 (02-09) - CAB FIREWALL ELECTRICAL (06) - ELECTRICAL

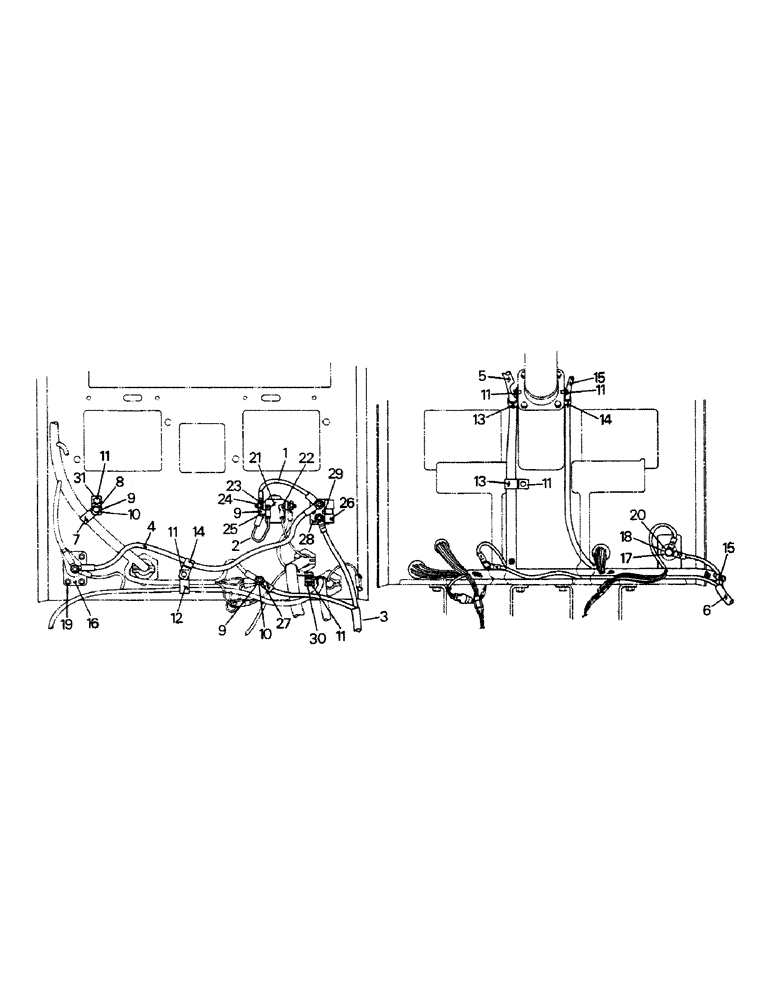

Схема запчастей Case IH CP-1400 - (02-09) - CAB FIREWALL ELECTRICAL (06) - ELECTRICAL
15
31
9
21
11
14
19
11
27
9
25
24
10
14
13
15
22
30
18
26
2
11
12
16
5
28
13
11
11
17
11
29
4
8
9
10
23
20
3
6
7
1

Артикул

Название

Примечание

Количество

1

20-1197T1

ELECTRICAL WIRE

WIRE

1шт.

2

20-1198T1

ELECTRICAL WIRE

WIRE

1шт.

3

20-1592T1

HARNESS

FIREWALL WIRE HARNESS

1шт.

4

20-1594T1

WIRE

1шт.

5

20-1624T5

HARNESS

MAIN CAB WIRE HARNESS (20-1624T1 to 20-1624T4 - code C)

1шт.

Wire harness connector kits are available for field replacement of the main cab wire harness ends where it connects to the engine, climate control module and from frame wire harness at the firewall. These kits contain all necessary connectors and terminals for this replacement. These kits are as follows: 20-1833T1 - ref. 5 to engine wire harness 20-1834T1 - ref. 5 to climate control module wire harness 20-1835T1 - ref. 5 to front frame wire harness (C) - Superseded - old P/N can be used up on all models pr

1шт.

6

20-1457T1

HARNESS

CAB POWER WIRE HARNESS

1шт.

7

32-161

COLLAR CLAMP

CLAMP

1шт.

8

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

MACHINE SCREW

1шт.

9

19-115

LOCK WASHER,1/4"

1/4"

5шт.

10

19-76

NUT,1/4"-20, G5

5шт.

11

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW

7шт.

12

1-1292

CLIP

1шт.

13

31-2160

CLAMP

2шт.

14

22-633

CLIP

2шт.

15

20-1599T1

HARNESS

DASH DISPLAY WIRE HARNESS

1шт.

16

20-1087T1

BLOCK

JUNCTION BLOCK

1шт.

17

19-289

JAM NUT,1/2" - 13, Gr 5

JAM NUT

2шт.

18

19-463

WASHER,1/2", SAE

2шт.

19

159950

NUT

MACHINE SCREW

4шт.

20

19-1052

PLOW BOLT,#3, 5/8" - 11 x 3 1/4", Gr 5

WASHER

2шт.

21

20-1608T1

SOLENOID

MAGNETIC SWITCH

1шт.

22

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

23

19-116

LOCK WASHER,5/16"

5/16"

2шт.

24

19-88

NUT,5/16"-24, G5

2шт.

25

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

2шт.

26

20-1978T2

FUSE

(150 amp)

1шт.

27

60-1880T1

STUD

1шт.

28

20-1170T1

BLOCK

FUSE BLOCK

1шт.

29

155907

SCREW,Cross Flat Hd, #8 - 32 x 1"

MACHINE SCREW

2шт.

30

60-2864T2

CLIP BRACKET

1шт.

31

60-1881T2

BRACKET

1шт.

Выбрано товаров: 32
