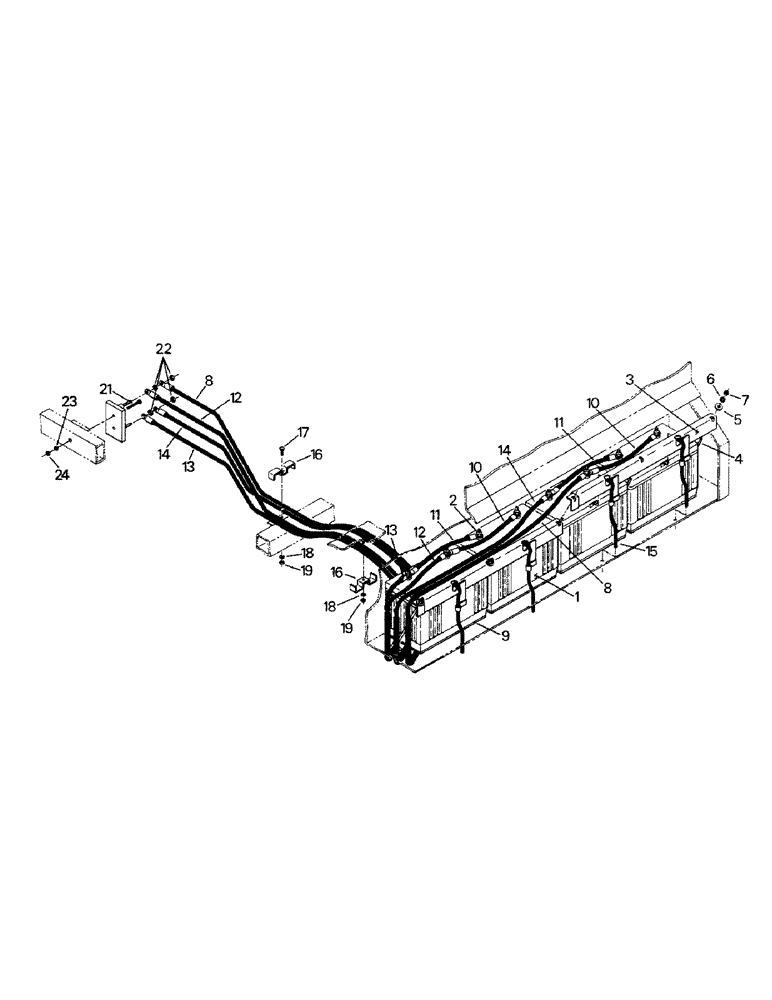

Запчасти Case IH CP-1400 (02-08) - BATTERIES AND MOUNTING (06) - ELECTRICAL

1

2-7000

WET BATTERY

4шт.

60-2198T1

CAP

BATTERY CAP (qty 6 per battery)

1шт.

2

19-341

LOCK NUT,3/8" - 16, GB

8шт.

3

60-2973T1

CLAMP BRACKET

BATTERY HOLD DOWN (shown above)

2шт.

Battery hold down P/N 60-2973T2 is simply a single piece version of P/N 60-2973T1 and replaces P/N 60-2973T1 under a code B supersession.

1шт.

60-2973T2

BATTERY BOX

BATTERY HOLD DOWN

1шт.

4

2-3772T1

HOOK,5/16" - 18 x 10.7", Steel/CAD

BOLT HOOK

5шт.

5

19-106

WASHER,5/16", SAE

5шт.

6

19-116

LOCK WASHER,5/16"

5/16"

5шт.

7

19-77

NUT,5/16"-18, G5

5шт.

8

20-1154T1

CABLE

BATTERY CABLE

1шт.

9

60-1059T1

BASE

BATTERY BASE

4шт.

10

1-4967

CABLE

BATTERY CABLE

2шт.

11

1-4968

CABLE

BATTERY CABLE

2шт.

12

20-1094T2

CABLE

BATTERY CABLE

1шт.

13

20-1095T3

CABLE

BATTERY CABLE

1шт.

14

20-1153T1

CABLE

BATTERY CABLE

1шт.

15

31-2210

HOSE

VENT HOSE

4шт.

16

2-4182T1

CLAMP

2шт.

17

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

1шт.

18

19-115

LOCK WASHER,1/4"

1/4"

2шт.

19

19-76

NUT,1/4"-20, G5

2шт.

20

1-4986

BLOCK

TERMINAL BLOCK (incl ref. 22)

1шт.

21

363-31040

SCREW,Hex Wash Hd, #10-24 x 2 1/2"

MACHINE SCREW

2шт.

22

115772

NUT

BRASS NUT

6шт.

23

9421089

WASHER

2шт.

24

19-5563

LOCK NUT

LOCK NUT

2шт.
