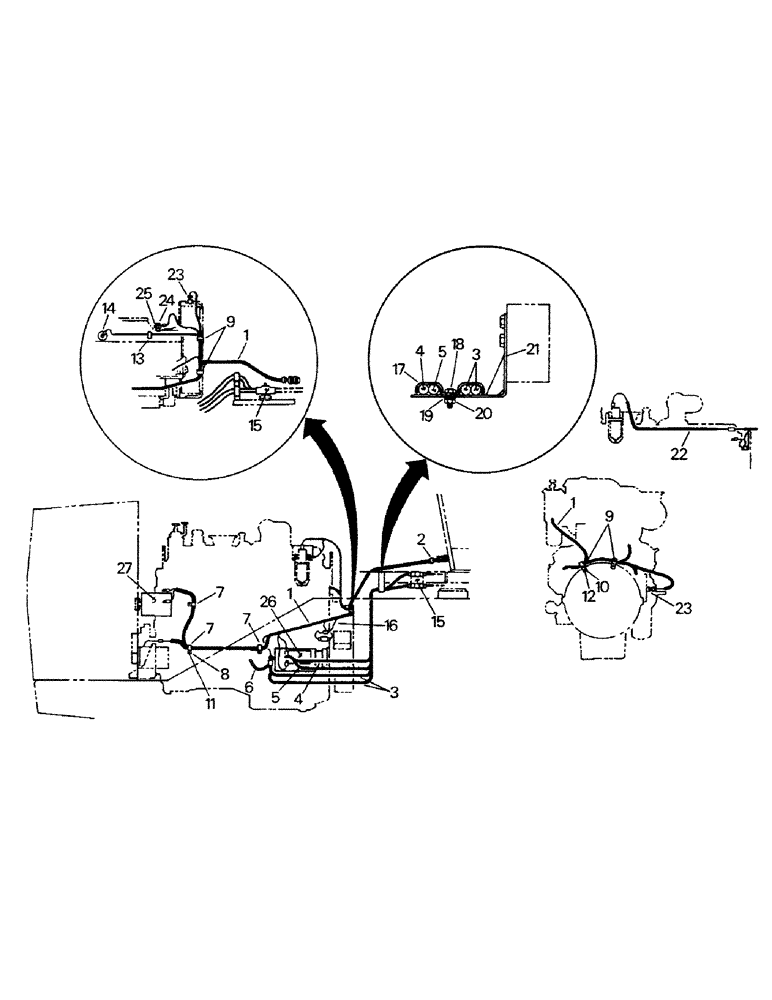

Запчасти Case IH CP-1400 (02-01) - ENGINE ELECTRICAL, CAT 3406 ENGINE, EARLY STYLE (06) - ELECTRICAL

1

20-1586T1

HARNESS

ENGINE WIRE HARNESS Before S/N, Start Serial: 3008

1шт.

This engine electrical arrangement will only be used on those models with Cat 3406 engines

1шт.

2

22-632

CLIP

1шт.

3

20-1097T1

CABLE

BATTERY CABLE

2шт.

4

20-1096T1

CABLE

BATTER CABLE

1шт.

5

20-1722T1

CABLE

STARTER CABLE

1шт.

6

20-1829T1

ELECTRICAL WIRE

GROUND WIRE (22-033)

1шт.

Superseded - P/N is superseded on this model or models only. Old P/N can be used for other applications and models but new P/N must always be used in this code.

1шт.

7

22-631

CLIP

3шт.

8

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

CAPSCREW

3шт.

9

32-310

CLAMP

2шт.

10

19-364

CAPSCREW

2шт.

11

19-106

WASHER,5/16", SAE

3шт.

12

19-643

WASHER,7/16", SAE

2шт.

13

22-635

MOUNTING CLIP

CLIP

1шт.

14

20-1305T1

TEMPERATURE SENDER

WATER TEMP SENDER

1шт.

15

1-6885

BOOT

TERMINAL BOOT

2шт.

16

20-1748T1

WIRE

1шт.

17

2-4182T1

CLAMP

1шт.

18

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

1шт.

19

19-115

LOCK WASHER,1/4"

1/4"

1шт.

20

19-76

NUT,1/4"-20, G5

1шт.

21

90-3717T1

BRACKET

1шт.

22

20-1750T1

ETHER START WIRE HARNESS (325 HP engine only)

1шт.

23

20-1587T1

MAGNET

IC PICKUP, 5/8-18 UNF

1шт.

24

1-2227T2

SENDER UNIT

OIL PRESS. SENDER

1шт.

25

19-481

SERRATED NUT

KEP NUT

1шт.

26

STARTER ASSY (see figure 2-4)

1шт.

27

ALT ASSY (see figure 2-6)

1шт.

28

1-7818

CABLE

TIE (not shown)

2шт.

20-1854T1

SENSOR

5/8-18 UNF, wire size 9", round connector

1шт.

20-2129T1

SENSOR

5/8-18 UNF, wire size 9", round connector

1шт.

20-2357T1

SENSOR

3/4-16 UNF, wire size 9", oval connector

1шт.

A48264

CABLE

3/4-20 UNF, wire size 9", round connector

1шт.
