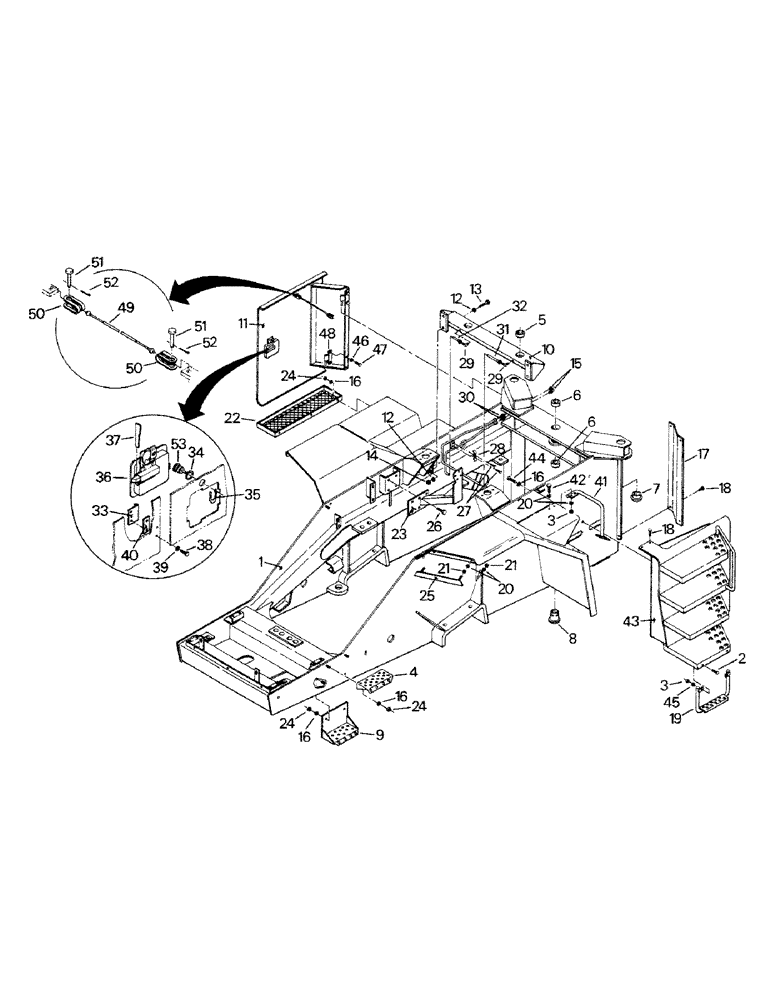

Запчасти Case IH CP-1400 (06-1) - FRONT FRAME (12) - FRAME

1

FRONT FRAME (special order item)

1шт.

2

19-284

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

CAPSCREW

2шт.

3

232-4136

LOCK NUT,3/8"-16, GC

6шт.

4

70-2139T2

STEP

1шт.

5

15-44

SPHERICAL BEARING

SELF-ALIGNING BUSHING

2шт.

6

70-1242T1

RING RACE

BUSHING

2шт.

7

70-1209T1

BUSHING

1шт.

8

70-1210T1

BUSHING,57.23mm ID x 76.2mm OD x 77.72mm L

1шт.

9

70-2142T3

STEP

Replaces 70-2142T2

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

10

70-1643T3

STEERING PLATE, 6" wide, use only 70-2268T1 and 70-2269T1 tubes, must be used together

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

70-3083T1

LARGE PLATE

STEERING PLATE, 7" wide, 3/4" mounting hardware, use only 70-3085T1 and 70-3084T1 tubes, must be used together

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

70-4295T1

SUPPORT

STEERING PLATE (7/8" mounting hardware), Replaces 70-3083T1

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

11

70-1898T1

HYDRAULIC VALVE COVER (welded hinge) (see fig. note)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

70-3011T1

COVER

HYDRAULIC VALVE COVER, bolted on hinge, use with ref. 46 - 48 in order to replace cover P/N 70-1898T1

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

12

19-5723

WASHER

(3/4")

8шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

19-6120

WASHER

(7/8")

8шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

13

223453

CAPSCREW (3/4")

4шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

CAPSCREW (7/8")

4шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

14

19-857

LOCK NUT,3/4"-10, GB

(3/4")

4шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

9422309

LOCK NUT,7/8"-9, GC

(7/8")

4шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

15

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

16

19-109

WASHER,1/2"

10шт.

17

50-1311T1

COVER

1шт.

18

9417350

BOLT,Hex Washer, 5/16" - 18 x 3/4"

MACHINE SCREW

6шт.

19

70-2618T1

STEP

1шт.

20

19-107

WASHER

12шт.

21

19-78

SPECIAL NUT,3/8"-16, G5

8шт.

22

70-2032T1

TRAY

1шт.

23

60-3072T1

VALVE BLOCK

MOUNT

1шт.

24

19-81

NUT,1/2"-13, G5

7шт.

25

70-2074T1

COVER (right)

1шт.

70-2073T1

COVER (left)

1шт.

26

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

4шт.

27

159585

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW

2шт.

28

31-1870

CLAMP

CLIP

2шт.

29

31-599

ELBOW

2шт.

30

31-598

CONNECTING ROD

CONNECTOR

2шт.

31

70-2268T1

TUBE

use only with 70-1643T3 steering plate, must be used together

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

70-3085T1

PIPE

TUBE, use only with 70-3083T1 steering plate, must be used together

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

32

70-2269T1

TUBE

use only with 70-1643T3 steering plate, must be used together

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

70-3084T1

PIPE

TUBE, use only with 70-3083T1 steering plate, must be used together

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

33

70-2674T1

PLATE

STRIKER

1шт.

34

1-4074

RUBBER WASHER

RUBBER WASHER

1шт.

35

1-4788

CLIP

MOUNTING CLIP

1шт.

36

60-2262T91

LATCH

(incle 60-2533T1 spring bracket & 60-2532T1 gasket)

1шт.

37

60-2266T1

KEY

MOUNTING KEY

2шт.

38

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

2шт.

39

19-223

WASHER,1/4"

2шт.

40

70-2530T1

SHIM

1шт.

41

70-2608T1

GRAB HANDLE (16" air cleaner)

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

70-3037T1

HANDLE

GRAB HANDLE (14" air cleaner)

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

42

19-5877

BOLT,Hex, 3/8" - 16 x 1", Gr 5

CAPSCREW

4шт.

43

HYDRAULIC RESERVOIR (see figure 8-9)

1шт.

44

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW

3шт.

45

70-3015T1

CLIPPED WASHER

2шт.

46

19-1059

WASHER

use with ref 11 P/N 70-3011T1 cover

4шт.

47

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW, use with ref. 11 P/N 70-3011T1 cover

4шт.

48

70-3009T1

HINGE

MOUNT, use with ref. 11 P/N 70-3011T1 cover

2шт.

49

1-4656

CABLE

LANYARD CABLE, must be used together

1шт.

Refs. will only be found on later models, however, they may be retrofitted into early models.

1шт.

50

1-4657

CLEVIS

must be used together

2шт.

Refs. will only be found on later models, however, they may be retrofitted into early models.

1шт.

51

19-143

CLEVIS PIN,5/16" x 0.94"

must be used together

2шт.

Refs. will only be found on later models, however, they may be retrofitted into early models.

1шт.

52

19-5380

PIN

HAIR PIN, must be used together

2шт.

Refs. will only be found on later models, however, they may be retrofitted into early models.

1шт.

53

NSS

NOT SOLD SEPARAT

LOCKSET, this part is included with steering column lockset P/N 60-1020T1, see Figure 01-19, must be used together

1шт.

35-1558T91

BAR

STEERING BAR KIT, includes steering plate P/N 70-3082T1 and all appropriate attaching parts

1шт.
