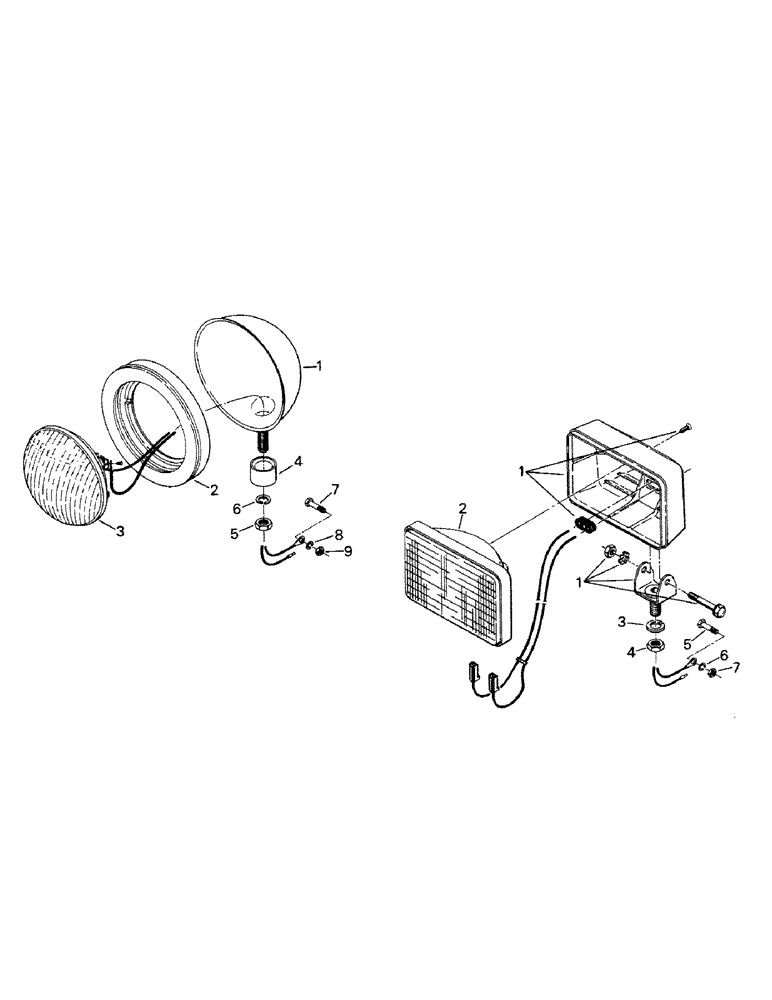

Запчасти Case IH CP-1400 (02-28) - LIGHTS (06) - ELECTRICAL

20-1141T91

LAMP

FIELD LIGHT ASSY (H7619) (front & outside rear), consists of ref., Serial Range: 1-6

8шт.

20-1072T91

LIGHT

FIELD LIGHT ASSY (H7609) (inside rear)

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL

1шт.

2

20-1655T1

RETAINER

MOUNTING RING

1шт.

3

20-1374T1

BEAM

SEALED BEAM (H7619)

1шт.

REF. 3 SEAL BEAM IS 6000 CANDLE POWER AND REF. 3A IS 2200 CANDLE POWER

1шт.

20-1375T1

BEAM

SEALED BEAM (H7609)

1шт.

4

22-366

BUSHING

1шт.

5

19-237

NUT,Jam, 1/2" - 20, Gr 5

JAM NUT

1шт.

6

19-119

LOCK WASHER,1/2"

1/2"

1шт.

7

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

MACHINE SCREW

4шт.

8

19-115

LOCK WASHER,1/4"

1/4"

8шт.

9

19-76

NUT,1/4"-20, G5

8шт.

10

22-823

MOUNT

BACK MOUNT (not shown)

8шт.

20-1730T91

LAMP, WORK

FIELD LIGH ASSY, consists of ref. 1 and 2

10шт.

1

NSS

NOT SOLD SEPARAT

HOUSING & MOUNTING

1шт.

2

20-1822T1

LAMP BASE

SEALED BEAM

1шт.

3

22-367

SPRING WASHER

SPRING WASHER

10шт.

4

19-653

LOCK NUT

LOCK NUT

10шт.

5

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

MACHINE SCREW

4шт.

6

19-115

LOCK WASHER,1/4"

1/4"

8шт.

7

19-76

NUT,1/4"-20, G5

8шт.

8

22-823

MOUNT

BACK MOUNT (not shown)

8шт.
