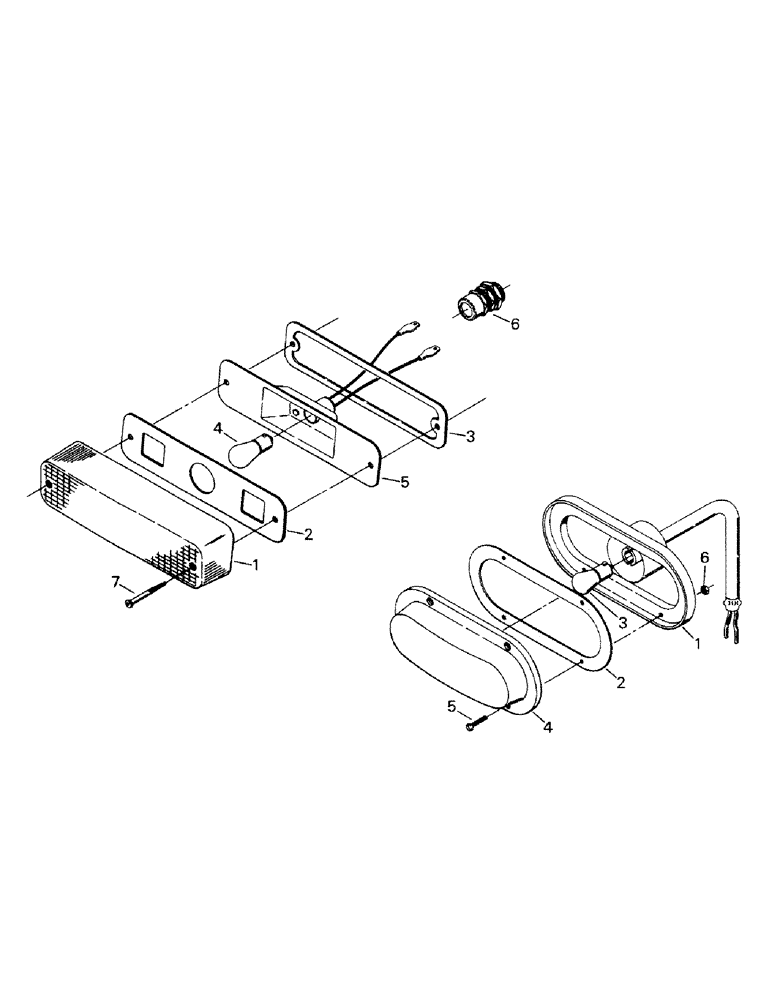

Запчасти Case IH CP-1400 (02-26) - LIGHTS (06) - ELECTRICAL

22-665

LIGHT, WARNING

WARNING LIGHT ASSY (two single terminal ends) (shown above), consists of ref., Serial Range: 1-5

4шт.

20-1950T91

LIGHT

WARNING LIGHT ASSY (one double terminal end), consists of ref., Serial Range: 1-5

1шт.

1

22-666

LIGHT, WARNING

LENS

1шт.

2

22-663

GASKET

1шт.

3

22-664

GASKET

1шт.

4

22-667

BULB

1шт.

5

NSS

NOT SOLD SEPARAT

BODY

1шт.

6

60-2924T1

CONNECTING ROD

CONNECTOR (front only)

2шт.

7

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

8шт.

20-1308T91

LAMP, TAIL

TAIL LAMP ASSY, consists of ref., Serial Range: 1-4

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSY

1шт.

2

20-1661T1

GASKET

1шт.

3

22-286

BULB

1шт.

4

20-1660T1

LENS

1шт.

5

153308

SCREW,Phil Pan Hd, #10 - 24 x 0.75", Gr 2

MACHINE SCREW

8шт.

6

9419337

NUT

KEP NUT

8шт.
