Запчасти Case IH CP-1400 (02-24) - WIPER DRIVES AND BLADES (06) - ELECTRICAL

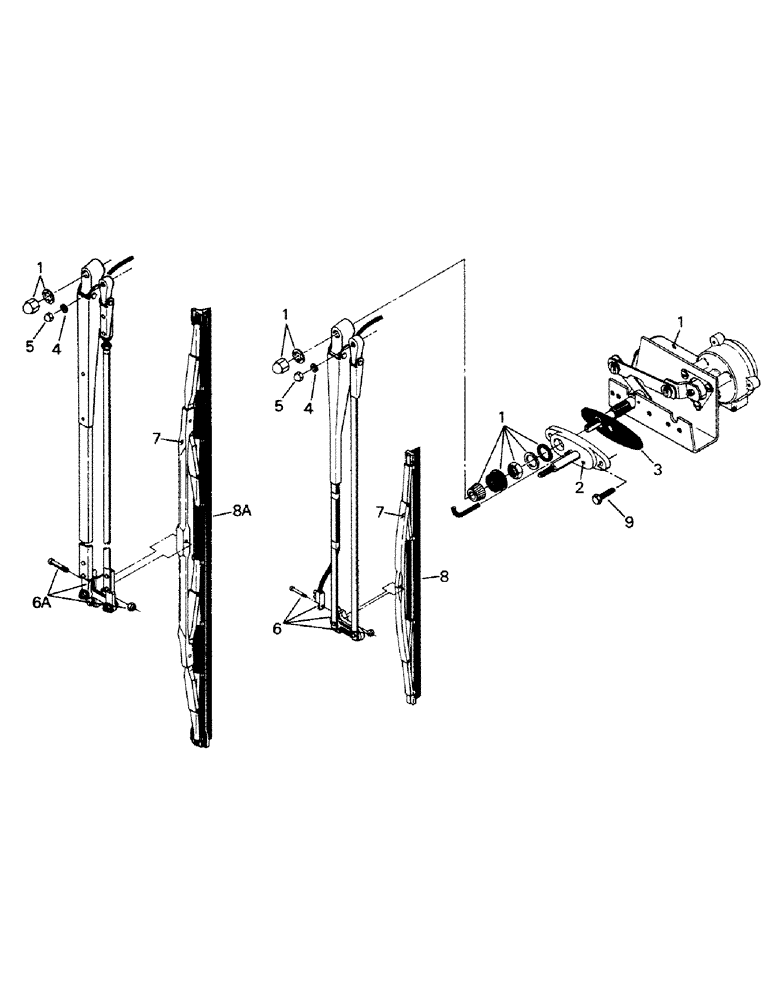

Схема запчастей Case IH CP-1400 - (02-24) - WIPER DRIVES AND BLADES (06) - ELECTRICAL
4
5
7
1
1
9
5
7
2
6
8
1
6a
3
8a
1
4

Артикул

Название

Примечание

Количество

1

WIPER DRIVE ASSYS (see figure 2-25)

1шт.

60-1436T91

PIVOT ASSY.

PANTOGRAPH KIT, consists of ref., Serial Range: 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY & SHAFT ASSY

1шт.

3

2-4190T1

GASKET

1шт.

4

2-4191T1

WASHER

1шт.

5

2-4192T1

NUT

1шт.

6

60-1144T1

WIPER ARM

(front window)

1шт.

6a

60-1440T1

WIPER ARM

(front side windows)

1шт.

60-1145T91

WIPER BLADE

ASSY (front window), consists of ref. 7, 8 and 8A

1шт.

60-1439T91

HALF BLADE

WIPER BLADE ASSY (front side windows)

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER FRAME

1шт.

8

2-4194T1

WIPER BLADE

(front window)

1шт.

8a

2-4193T1

HALF BLADE

WIPER BLADE (front side windows)

1шт.

9

185080

CLAMP,Hex, 1/4" - 28 x 2.27", Gr 5

CAPSCREW

6шт.

Выбрано товаров: 14
