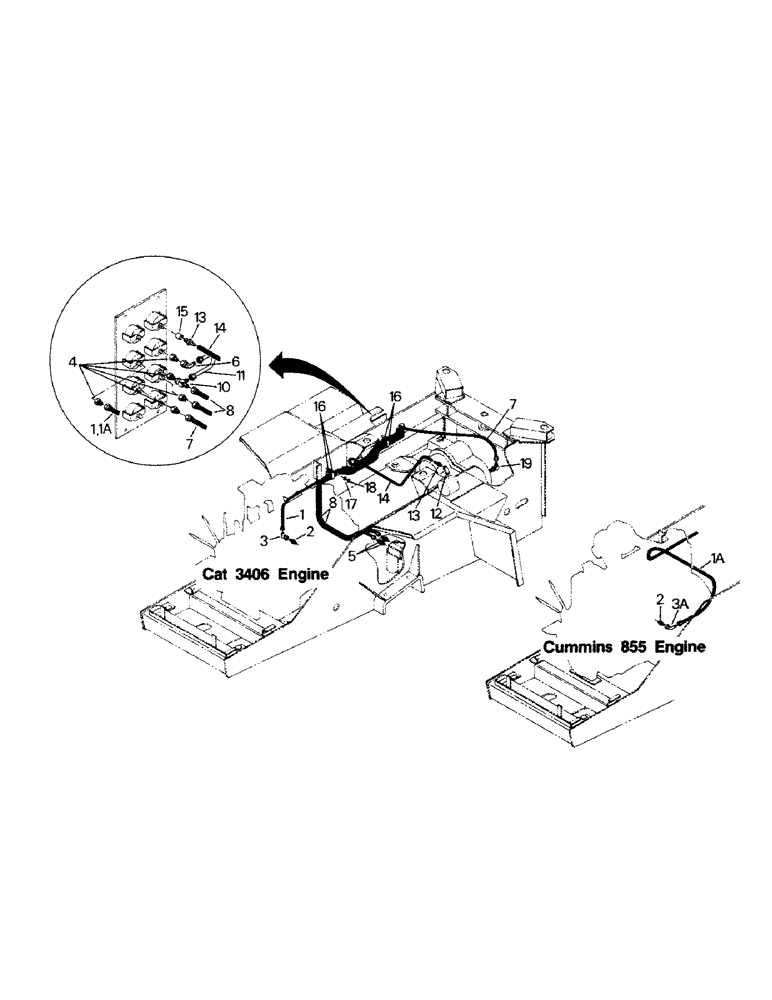

Запчасти Case IH CP-1400 (02-21) - GAUGE PLUMBING, VEHICLE WARNING SYSTEM (06) - ELECTRICAL

1

31-2153

HOSE

(Cat 3406 engine)

1шт.

Refs. 1 - 3 are not used on those models with Cat 3406 engines after S/N 3007, see Figure 02-22 for gauge panel information and usage.

1шт.

1a

31-2155

HOSE

(Cummins 855 engine)

1шт.

2

19-1101

HYD CONNECTOR,7/16" - 20, 37 Degree x 3/8" - 18, NPTF

FITTING

1шт.

Refs. 1 - 3 are not used on those models with Cat 3406 engines after S/N 3007, see Figure 02-22 for gauge panel information and usage.

1шт.

3

31-2178

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

(Cat 3406 engine)

1шт.

Refs. 1 - 3 are not used on those models with Cat 3406 engines after S/N 3007, see Figure 02-22 for gauge panel information and usage.

1шт.

3a

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

(Cummins 855 engine)

1шт.

4

31-1593

ADAPTER

(qty 4 on later models)

5шт.

5

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

FITTING

2шт.

6

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

7

31-2197

HOSE

1шт.

8

31-2155

HOSE

2шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, (Not shown) 3/16" x 7 1/4"

15шт.

Standards part number for hose connector barb system is 217-120

1шт.

10

31-2158

TEE,37 Degree, 7/16"-20, x 7/16"-20, Fem Sw Run

1шт.

11

50-1859T1

TUBE ASSY.

TUBE

1шт.

12

31-77

ELBOW

1шт.

13

31-2159

BARBED FITTING

2шт.

14

31-2157

FUEL HOSE

HOSE

1шт.

15

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

COUPLING

1шт.

16

31-1070

CLAMP,5/8", 3/8" Bolt, Double

(qty 3 on later models)

4шт.

17

19-107

WASHER

2шт.

18

19-78

SPECIAL NUT,3/8"-16, G5

2шт.

19

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1шт.

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

1шт.
