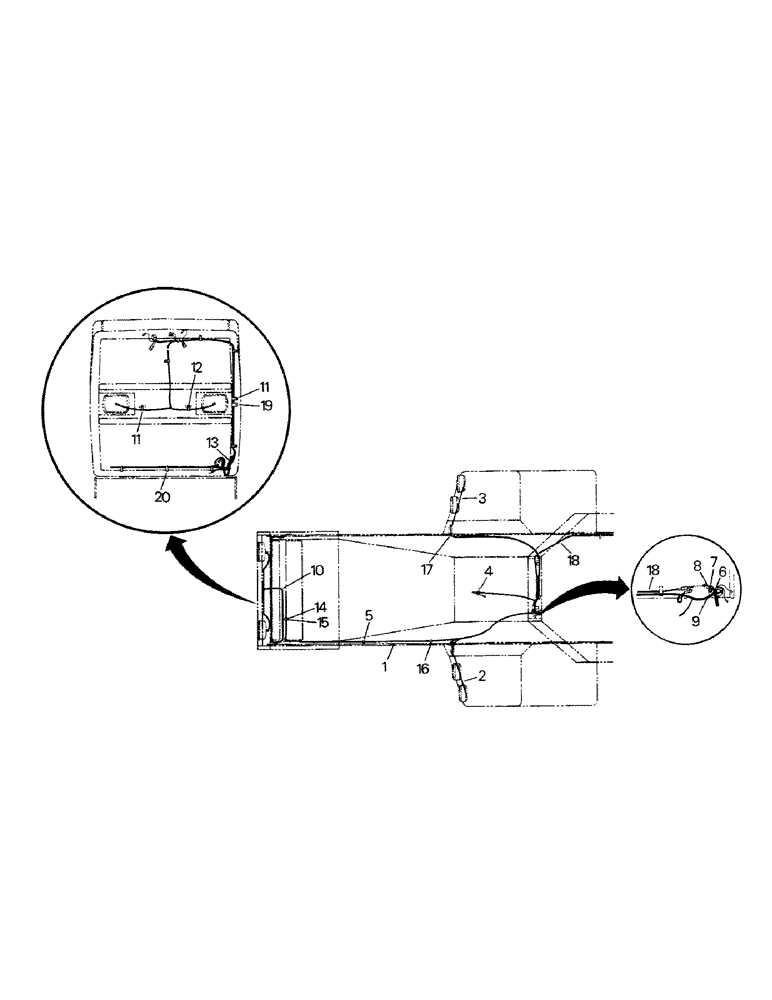

Запчасти Case IH CP-1400 (02-18) - FRONT FRAME ELECTICAL, LATER STYLE TILT-UP HOOD (06) - ELECTRICAL

1

20-1898T2

HARNESS

FRONT FRAME WIRE HARNESS (see fig. note)

1шт.

2

20-1318T1

HARNESS

LAMP WIRE HARNESS (left)

1шт.

3

20-1319T1

HARNESS

LAMP WIRE HARNESS (right)

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

5шт.

5

32-310

CLAMP

2шт.

6

18-633

COLLAR CLAMP

CLAMP

1шт.

7

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

1шт.

8

19-115

LOCK WASHER,1/4"

1/4"

1шт.

9

19-76

NUT,1/4"-20, G5

1шт.

10

20-1888T1

HARNESS

HEADLAMP & HORN WIRE HARNESS

1шт.

11

22-635

MOUNTING CLIP

CLIP

7шт.

12

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW

3шт.

13

20-1742T1

ELECTRICAL WIRE

WIRE

1шт.

14

22-631

CLIP

1шт.

15

19-224

WASHER,3/8", SAE

4шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

2шт.

17

31-2242

GROMMET

2шт.

18

20-1678T1

HARNESS

SWITCH WIRE HARNESS

1шт.

19

31-1346

CLIP

1шт.

20

22-633

CLIP

3шт.
