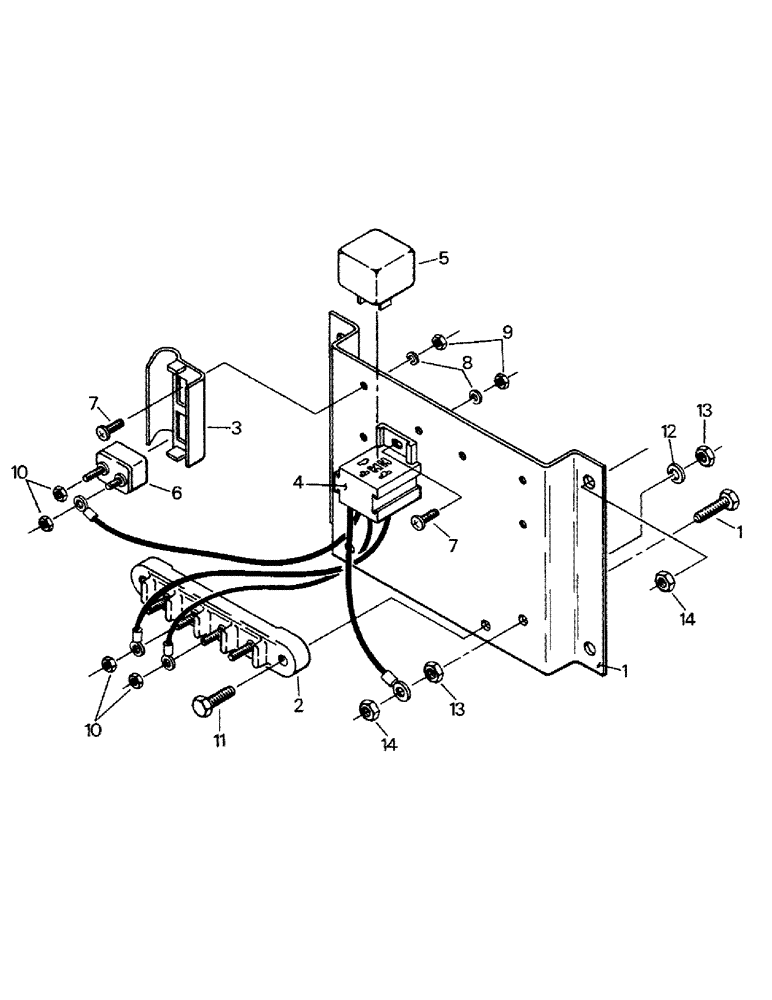

Запчасти Case IH CP-1400 (02-16) - INSTRUMENT COMPONENT ASSEMBLY (06) - ELECTRICAL

1

20-1924T1

BRACKET

Replaces 60-2498T3

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2

20-1514T1

JUNCTION

BLOCK

1шт.

3

20-1171T1

SUPPORT

CIRCUIT BREAKER BRACKET

1шт.

4

20-1515T1

HARNESS

RELAY WIRE HARNESS

1шт.

These Refs. 4 - 10, were only used on those models with earlier versions of ref. 13A on Figure 02-13.

1шт.

5

1-7877

RELAY

1шт.

These Refs. 4 - 10, were only used on those models with earlier versions of ref. 13A on Figure 02-13.

1шт.

6

22-670

BREAKER

CIRCUIT BREAKER (10 amps)

1шт.

These Refs. 4 - 10, were only used on those models with earlier versions of ref. 13A on Figure 02-13.

1шт.

7

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

Qty. 3 with earlier version of ref. 13A Figure 02-13 Cross Pan Hd, #10-24 x 1/2"

2шт.

These Refs. 4 - 10, were only used on those models with earlier versions of ref. 13A on Figure 02-13.

1шт.

8

19-297

LOCK WASHER,#10

Washer, Lock, , qty. 3 with earlier version of ref. 13A Figure 02-13 #10

1шт.

These Refs. 4 - 10, were only used on those models with earlier versions of ref. 13A on Figure 02-13.

1шт.

9

19-567

NUT,#10-24

qty. 3 with earlier version of ref. 13A Figure 02-13

2шт.

These Refs. 4 - 10, were only used on those models with earlier versions of ref. 13A on Figure 02-13.

1шт.

10

19-481

SERRATED NUT

KEP NUT, qty. 6 with earlier version of ref. 13A Figure 02-13

4шт.

These Refs. 4 - 10, were only used on those models with earlier versions of ref. 13A on Figure 02-13.

1шт.

11

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

2шт.

12

19-115

LOCK WASHER,1/4"

1/4"

2шт.

13

19-76

NUT,1/4"-20, G5

3шт.

14

19-1081

LOCK NUT

LOCK NUT

5шт.
