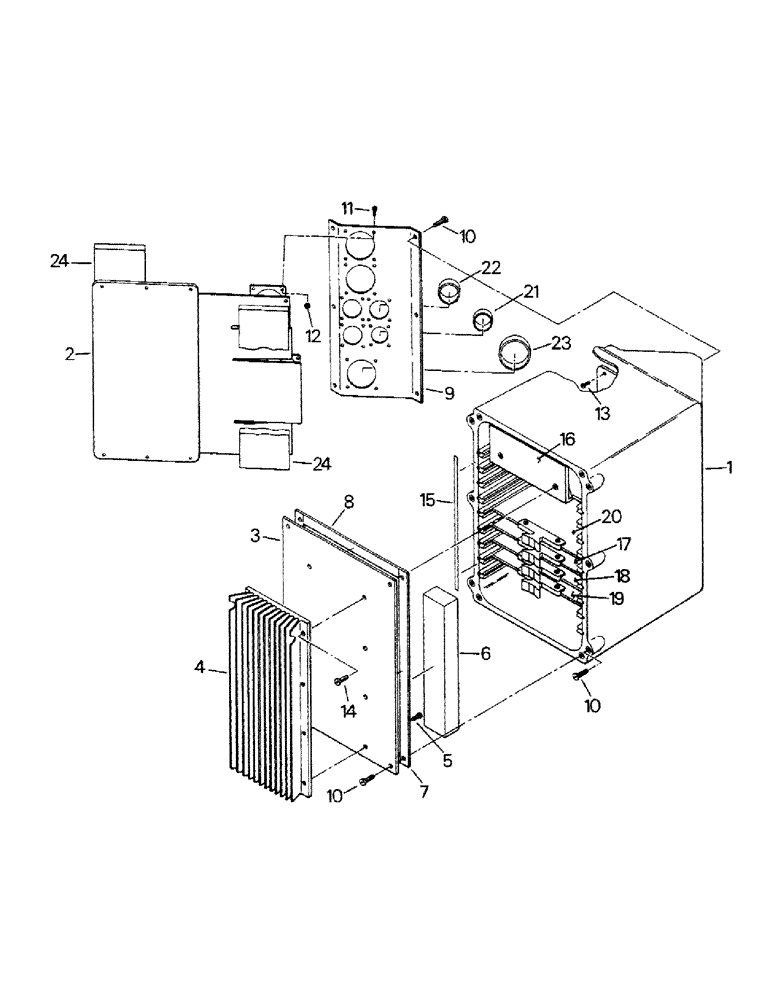

Запчасти Case IH CP-1400 (02-15) - ELECTRONIC CONTROL CENTER ASSEMBLY (06) - ELECTRICAL

20-2005T92

BOX

ELECTRONIC CONTROL CENTER ASSY., 1.9 software, Replaces 20-1626T91 to 20-1626T93, consists of ref. 1 - 25

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

1

20-1842T91

ELECTRICAL CABINET

ENCLOSURE

1шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

2

NSS

NOT SOLD SEPARAT

MOTHER BOARD ASSY

1шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

60-2102T91

COVER

ASSY, consists of ref. nos. 3-8

1шт.

3

60-2104T2

PLATE

1шт.

4

60-2101T1

PLATE ASSY.

HEAT SINK

1шт.

5

19-1014

SCREW,#10 - 24 x 3/8"

MACHINE SCREW

6шт.

6

60-2100T1

CARD RETAINER, 1-1/4 " square, 7" long, foam, cut from bulk foam

1шт.

7

60-3112T1

GASKET

GASKET

2шт.

8

60-3161T1

GASKET

GASKET

2шт.

9

2-5026T2

CONNECTOR PLATE, Replaces 02-5026T1

1шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

10

160045

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW

16шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

11

159053

FINGER

MACHINE SCREW (early models only)

28шт.

19-6090

TAPPING SCREW (all later models)

1шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

12

19-5754

NUT,#4-40, GB

LOCK NUT (early models only)

28шт.

13

19-5804

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

TAPPING SCREW

6шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

14

159943

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW

2шт.

15

2-5229T1

DECAL

1шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

16

20-1764T2

POWER UNIT

PSC, card nbr. 1, Replaces 20-1280T2 and 20-1764T1

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

17

20-1255T3

SEE PARTS MARKETING

DDC, card nbr. 6, 1.4 software, used before SN 3020 except those shown for P/N 20-1998T1

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1998T1

BOARD, PRINTED CIRCU

DDC, card nbr. 6, 1.9 software, used on SN 3001, 3004, 3016 - 3018 and after 3019

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

18

20-1276T3

BOARD, PRINTED CIRCU

VWS, card #7, Replaces 20-1276T2

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

19

20-1997T91

METER

UMCM, card nbr. 8, Replaces 20-1605T91 and 20-1605T92

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

20

20-1712T1

BOARD, PRINTED CIRCU

TDC, card nbr.5, Replaces20-12363T3

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

21

31-2163

CLOSURE CAP

1шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

22

31-2164

CLOSURE CAP

3шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

23

31-2165

CLOSURE CAP

3шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

24

60-3162T1

FOAM

2шт.

Included in control center sub-assy, P/N 20-1842T92

1шт.

25

25-1000015

PASTE

THERMAL PASTE, not shown

1шт.

20-1754T1

BOARD, PRINTED CIRCU

CIRCUIT CARD, 3 pt., optional, Replaces 20-1237T2

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.
