Запчасти Case IH CP-1400 (02-14) - CONTROL CONSOLE ELECTRICAL, PTO AND 3-POINT HITCH OPTIONS (06) - ELECTRICAL

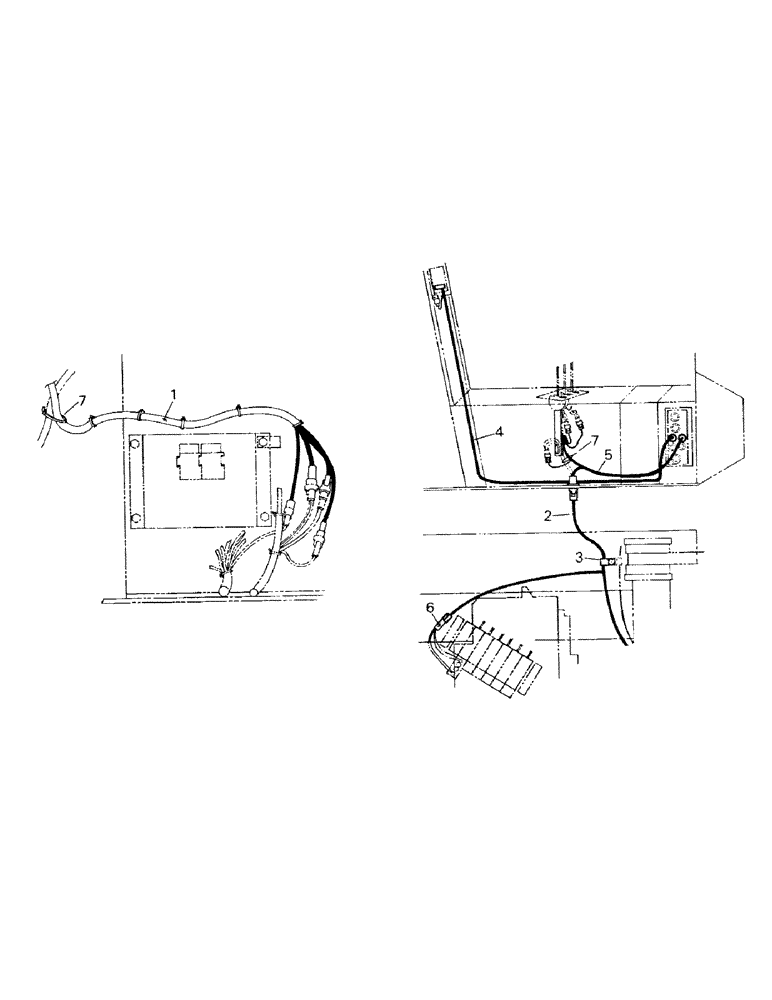

Схема запчастей Case IH CP-1400 - (02-14) - CONTROL CONSOLE ELECTRICAL, PTO AND 3-POINT HITCH OPTIONS (06) - ELECTRICAL
3
7
7
2
1
6
5
4

Артикул

Название

Примечание

Количество

1

20-1711T1

PTO WIRE HARNESS

1шт.

2

20-1540T1

HARNESS

3-PT HITCH FRAME WIRE HARNESS

1шт.

3

22-633

CLIP

1шт.

4

20-1597T1

HARNESS

3-PT HITCH DISPLAY WIRE HARNESS

1шт.

5

20-1598T2

HARNESS

3-PT HITCH CONSOLE WIRE HARNESS (20-1598T1 - code E)

1шт.

6

20-1580T1

HARNESS

3-PT HITCH HYDRAULIC VALVE WIRE HARNESS

1шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

5шт.

Выбрано товаров: 7
