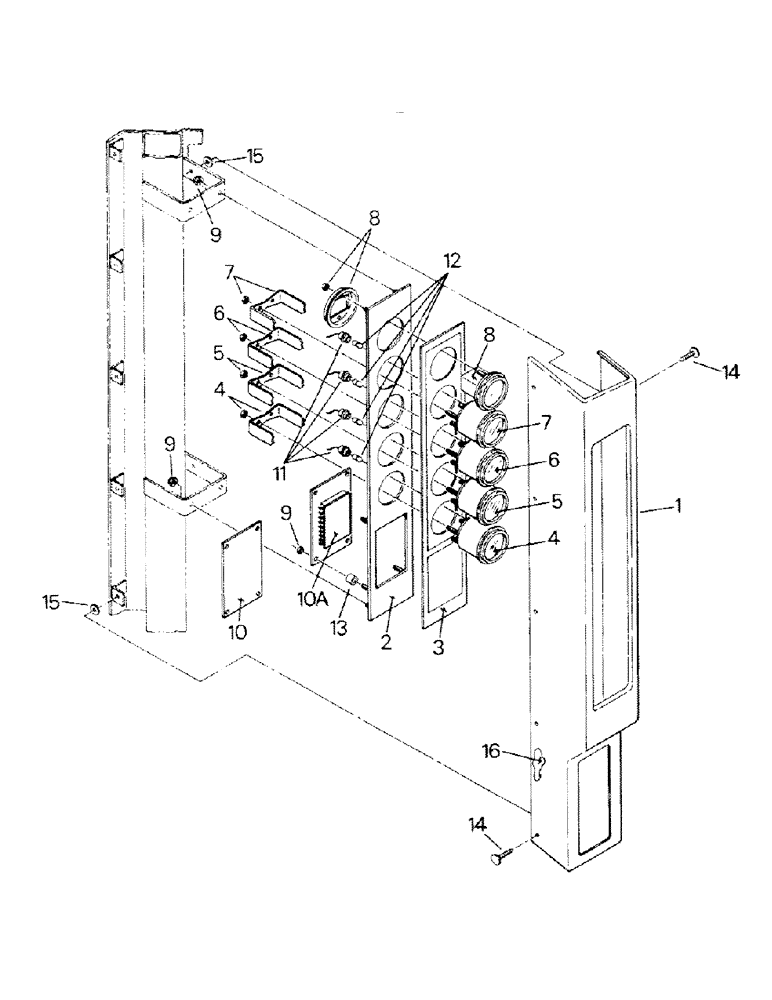

Запчасти Case IH CP-1400 (02-11) - INSTRUMENT PANEL AND MOUNTING (06) - ELECTRICAL

1

60-1128T2

COVER

(shown above)

1шт.

Some minor modifications may be required to assure proper installation of hourmeter P/N 20-2018T1 to wire harness P/N's 20-1574T1 & 20-1574T2. The difference in these two covers is in the location and number of mounting holes. Check the illustration; they are not interchangeable. (B) - Superseded - old P/N can be used for all models, but order new P/N when stock is depleted. (C) - Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N w

1шт.

60-1128T3

COVER

(see fig. note)

1шт.

Some minor modifications may be required to assure proper installation of hourmeter P/N 20-2018T1 to wire harness P/N's 20-1574T1 & 20-1574T2. The difference in these two covers is in the location and number of mounting holes. Check the illustration; they are not interchangeable. (B) - Superseded - old P/N can be used for all models, but order new P/N when stock is depleted. (C) - Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N w

1шт.

60-2109T93

PANEL

ASSY (w/o 3-pt hitch) (60-2109T92 - code B), consists of nos. 2-12

1шт.

60-2099T94

PANEL ASSY (with 3-pt hitch) (60-2099T92 - code E) (60-2099T93 - code B), consists of nos. 2-13

1шт.

2

60-2098T3

PANEL

1шт.

3

60-1109T1

DECAL

1шт.

4

20-1306T1

GAUGE

ENGINE WATER TEMP GAUGE

1шт.

5

22-744T1

GAUGE

ENGINE OIL PRESS. GAUGE (22-744 - code B)

1шт.

6

1-8609

GAUGE

FUEL GAUGE

1шт.

7

22-743T1

GAUGE

VOLTMETER (22-743 - code B)

1шт.

8

20-1404T1

HOURMETER

(see fig. note)

1шт.

Some minor modifications may be required to assure proper installation of hourmeter P/N 20-2018T1 to wire harness P/N's 20-1574T1 & 20-1574T2. The difference in these two covers is in the location and number of mounting holes. Check the illustration; they are not interchangeable. (B) - Superseded - old P/N can be used for all models, but order new P/N when stock is depleted. (C) - Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N w

1шт.

20-2018T1

HOURMETER

1шт.

Some minor modifications may be required to assure proper installation of hourmeter P/N 20-2018T1 to wire harness P/N's 20-1574T1 & 20-1574T2. The difference in these two covers is in the location and number of mounting holes. Check the illustration; they are not interchangeable. (B) - Superseded - old P/N can be used for all models, but order new P/N when stock is depleted. (C) - Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N w

1шт.

9

9411893

LOCK NUT,#10-32, GB

8шт.

10

60-2131T1

LARGE PLATE

PLATE (w/o 3-pt hitch)

1шт.

10a

20-1843T1

BOARD, PRINTED CIRCU

DISPLAY MODULE (with 3-pt hitch) (20-1312T1 - code E)

1шт.

11

20-1574T3

HARNESS

INSTRUMENT PANEL WIRE HARNESS (20-1574T1 - code B) (20-1574T2 - code C) (see fig. note)

1шт.

12

22-717

LAMP

BULB

4шт.

13

19-6069

SPACER

(with 3-pt hitch)

4шт.

14

19-5835

CLIP

(qty 7 with cover P/N 60-1128T2)

4шт.

15

19-5668

WASHER

11шт.

16

60-3742T1

FOAM

1шт.
