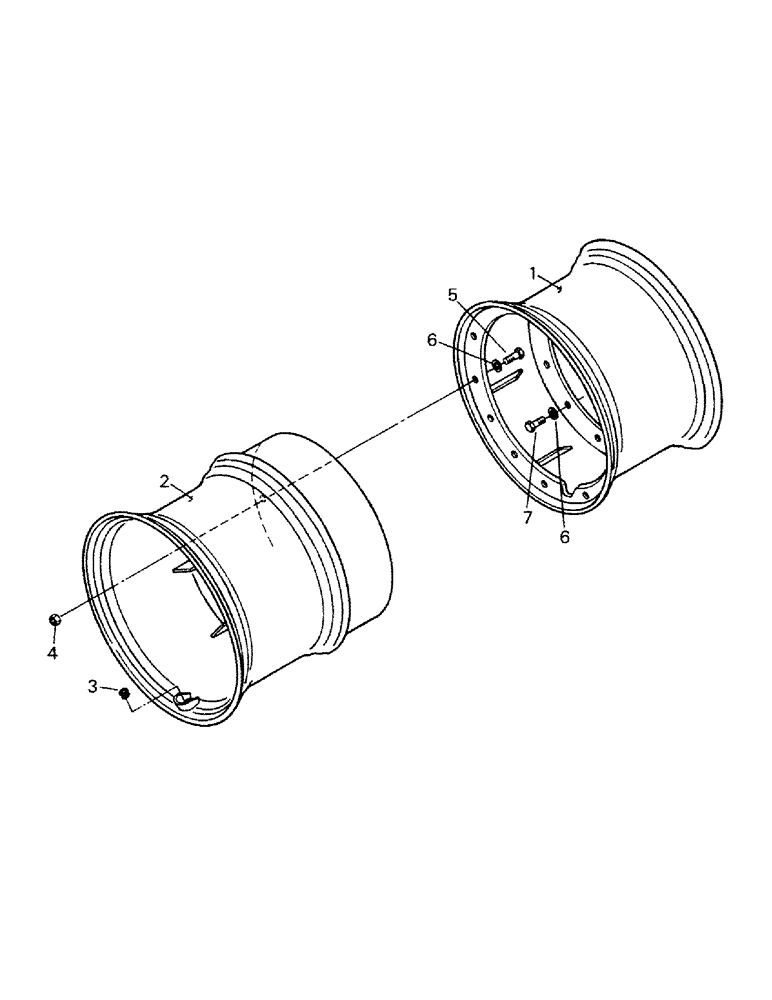

Запчасти Case IH CP-1325 (04-62) - WHEELS WITH HUB BOLTED DUALS (04) - Drive Train

1

30-1189T1

RIM

23.1 x 34 (20")

4шт.

30-1056T2

RIM

23.1 x 34 (20"), reinforced bead

4шт.

30-1190T1

RIM

24.5 x 32 (21")

4шт.

2-2102T2

RIM

24.5 x 32 (21") reinforced bead

4шт.

30-1223T1

RIM

24.5 x 32 (24")

4шт.

30-1221T1

RIM

24.5 x 32 (24") reinforced bead

4шт.

30-1134T1

WHEEL

24.5 x 32 (21"), K594 axle main wheels

4шт.

30-1210T1

24.5 x 32 (21") reinforced bead, K594 axle main wheels

4шт.

30-1214T1

24.5 x 32 (24"), K594 axle main wheels

4шт.

30-1213T1

24.5 x 32 (24") reinforced bead, K594 axle main wheels

4шт.

30-1040T1

RIM

30.5 x 32 (27"), K594 axle main wheels

4шт.

30-1209T1

30.5 x 32 (30"), K594 axle main wheels

4шт.

2

30-1191T1

RIM

23.1 x (20"), standard 8" dual spacing, wheels

4шт.

30-1051T1

RIM

23.1 x 34 (20"), standard 8" dual spacing, reinforced bead, wheels

4шт.

30-1192T1

RIM

24.5 x 32 (21"), standard 8" dual spacing, wheels

4шт.

30-1193T1

RIM

24.5 x 32 (21"), narrow 4" dual spacing, wheels

4шт.

30-1032T1

RIM

24.5 x 32 (21"), standard 8" dual spacing, reinforced bead, wheels

4шт.

2-2434T2

RIM

24.5 x 32 (21"), narrow 4" dsual spacing, reinforced bead, wheels

4шт.

30-1217T1

RIM

24.5 x 32 (24"), standard 8" dual spacing, reinforced bead, wheels

4шт.

30-1222T1

RIM

24.5 x 32 (24"), narrow 4" dual spacing, wheels

4шт.

30-1215T1

RIM

24.5 x 32 (24"), standard 8" dual spacing, reinforced bead, wheels

4шт.

30-1216T1

RIM

24.5 x 32 (24"), narrow 4" dual spacing, reinforced bead, wheels

4шт.

47-4529

RIM

30.5 x 32 (27"), standard 8" dual spacing, wheels

4шт.

30-1212T1

RIM

30.5 x 32 (30"), standard 8" dual spacing, wheels

4шт.

3

22-521

PLUG

(qty 8 with duals), wheels

4шт.

4

19-457

NUT,7/8"-9, G5

wheels

48шт.

5

19-420

BOLT,7/8" - 9 x 3", Gr 8

CAPSCREW, wheels

48шт.

6

19-2975

WASHER

qty. varies, 40 with S-40 and K598 singles, qty 136 with S-40 an K598 duals, qty 96 with K594 singles, qty 192 with K594 duals.3, wheels

1шт.

7

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

CAPSCREW (qty 96 with K594 axle), wheels

40шт.
