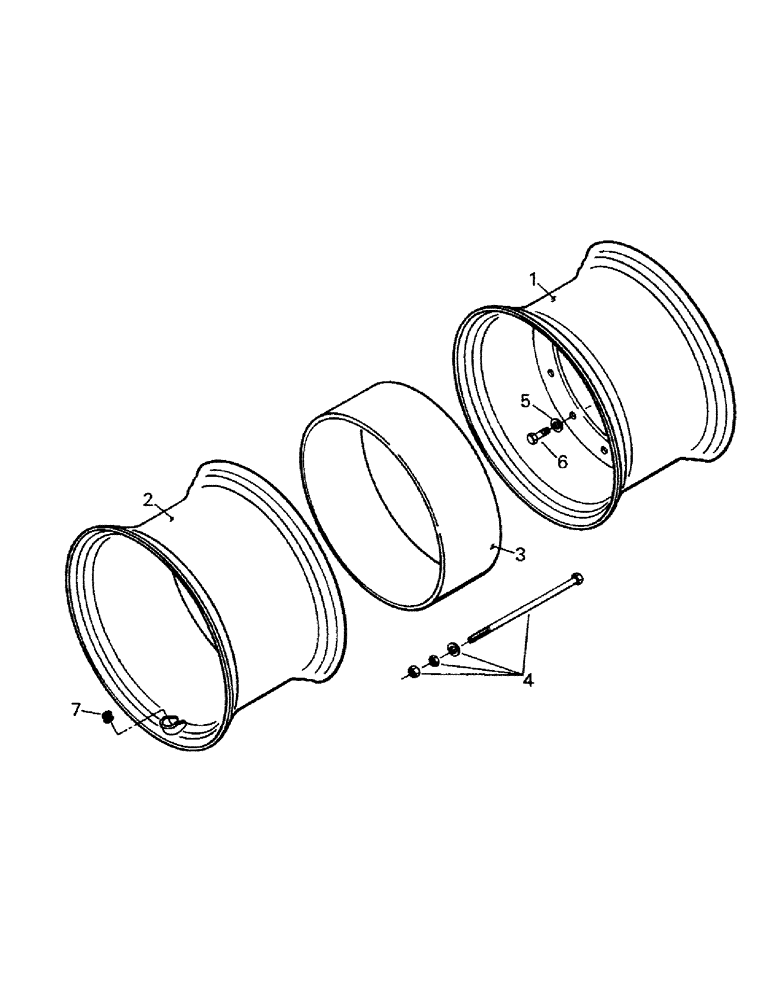

Запчасти Case IH CP-1325 (04-61[1]) - DUAL WHEELS (04) - Drive Train

1

30-1124T1

RIM

23.1 x 34 (20") (see fig. note)

4шт.

30-1112T1

RIM

20.8 x 38 (18")

4шт.

20-293

RIM

24.5 x 32 (21")

4шт.

30-1161T1

RIM

24.5 x 32 (24")

4шт.

20-294

RIM

30.5 x 32 (27")

4шт.

30-1159T1

RIM

30.5 x 32 (30")

4шт.

30-1013T1

RIM

30.5 x 32 (27")

4шт.

30-1218T1

RIM

30.5 x 32 (30")

4шт.

30-1118T1

WHEEL

35.5 x 32 (31")

4шт.

30-1135T1

WHEEL

35.5 x 32 (31") (K594 axle)

4шт.

2

20-107

RIM

23.1 x 34 (20")

4шт.

30-1130T1

RIM

20.8 x 38 (18")

4шт.

20-56

RIM

24.5 x 32 (21")

4шт.

30-1152T1

RIM

24.5 x 32 (24")

4шт.

3

20-70T1

SPACER

32" SPACER BAND (13" wide) (20-070 - code B)

4шт.

20-839T1

SPACER

32" SPACER BAND (15" wide) (20-839 - code B)

4шт.

20-162T1

SPACER

34" SPACER BAND (13" wide) (20-162 - code B)

4шт.

20-397T1

SPACER

34" SPACER BAND (15" wide) (20-397 - code B)

4шт.

20-1007T1

SPACER

38" SPACER BAND (13" wide) (20-1007 - code B)

4шт.

20-1001T1

SPACER

38" SPACER BAND (15" wide) (20-1001 - code B)

4шт.

4

35-1323T91

BOLT

TIE BOLT KIT (32") (see fig. note)

24шт.

35-1324T91

KIT

TIE BOLT KIT (34")

24шт.

35-1325T91

BOLT

TIE BOLT KIT (36")

24шт.

5

19-2975

WASHER

(qty 96 with K594 axle)

40шт.

6

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

CAPSCREW (qty with K594 axle)

40шт.

7

22-521

PLUG

(qty 8 with duals)

4шт.
