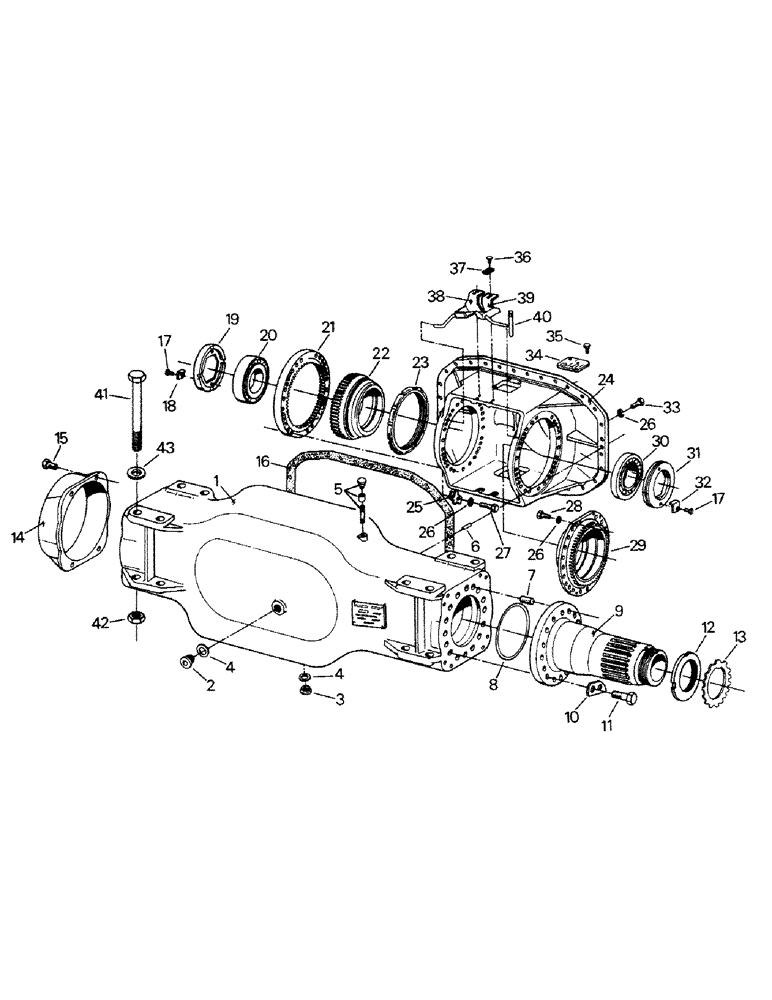

Запчасти Case IH CP-1325 (04-54) - AXLE AND GEAR HOUSING, K594.00/10 (04) - Drive Train

90-1837T91

PAN

AXLE ASSY, front, standard K594 differential

1шт.

90-1838T91

CENTER AXLE

AXLE ASSY, rear, standard K594 differential

1шт.

90-1842T91

AXLE ASSY., front, see Figure 04-59, optional no spin differential

1шт.

1-6691

AXLE HOUSING ASSY, consists of ref. nos. 1-15

1шт.

1

1-6692

AXLE HOUSING

1шт.

2

16-1503

PLUG,M30 x 1.5 x 17mm

1шт.

3

16-1502

PLUG

MAGNETIC PLUG

1шт.

4

16-1501

SEALING RING

O-RING

2шт.

5

31-1841

CONDUIT

NIPPLE

1шт.

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

COUPLING

1шт.

1-1359

BREATHER

1шт.

6

1-6694

DOWEL PIN

2шт.

7

1-6695

DOWEL

PIN

4шт.

8

1-6696

O-RING,165mm ID x 5.7mm Width

2шт.

9

1-6697

STUB AXLE

2шт.

10

1-6698

THRUST WASHER

TAB WASHER

14шт.

11

1-6699

SCREW,Hex, M24 x 2 x 75mm, Cl 10.9

CAPSCREW

28шт.

12

1-6700

NUT

SHAFT END NUT

4шт.

13

1-6701

WASHER

TAB WASHER

2шт.

14

1-6702

GUARD

DUST GUARD

2шт.

15

1-6703

CAPSCREW

8шт.

1-6705

DIFFERENTIAL ASSY

GEAR HOUSING & DIFF WITH INNER GEAR ASSY (front), consists of ref. nos. 16-29

1шт.

1-6704

GEARBOX ASSY

GEAR HOUSING & DIFF WITH INNER GEAR ASSY (rear)

1шт.

16

1-6706

GASKET

1шт.

17

1-6707

SCREW,Lock, M8 x 11.80mm, Cl 10.9

CAPSCREW

4шт.

18

16-1627

LOCK WASHER

TAB WASHER

2шт.

19

1-6708

OIL SEAL

PRESSURE RING I

1шт.

20

1-6709

TAPERED BEARING,90mm ID x 160mm OD x 42.5mm

1шт.

21

1-6710

BEARING BLOCK RETAINER

1шт.

22

1-6711

BLOCK

GEARED BEARING BLOCK I

1шт.

23

1-6712

NUT

BEARING NUT

1шт.

24

1-6713

GEAR HOUSING

1шт.

25

1-6714

WASHER

TAB WASHER

1шт.

26

1-6715

LOCK WASHER

71шт.

27

1-6716

CAPSCREW

20шт.

28

1-6717

CAPSCREW

19шт.

29

1-6718

BLOCK

GEAR BEARING BLOCK II

1шт.

30

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

TAPERED ROLLER BEARING, consists of ref. 31 - 40

1шт.

31

1-6719

OIL SEAL

PRESSURE RING II

1шт.

32

1-6720

WASHER

TAB WASHER

2шт.

33

16-1519

BOLT,Hex, M12 x 1.75 x 38mm, Gr 10.9

CAPSCREW

4шт.

34

16-1579

DIRECTION INDICATOR PANEL

1шт.

35

16-1581

CAPSCREW,Hex, M6 x 18mm, Gr 10.9, Full Thd

4шт.

36

16-1186

CAPSCREW,Hex, M8 x 15mm, Cl 10.9

4шт.

37

1-6721

SPECIAL WASHER

TAB WASHER

2шт.

38

1-6722

OIL WIPER (left)

1шт.

39

1-6723

WIPER

OIL WIPER (right)

1шт.

40

1-6724

PIPE

1шт.

41

19-5465

BOLT,1 1/4" x 7", Gr 8

AXLE BOLT

8шт.

42

19-5481

NUT

LOCK NUT

8шт.

43

19-6064

WASHER

(install on the inside capscrews)

4шт.

19-6065

CLIPPED WASHER (install on the outside capscrews)

4шт.
