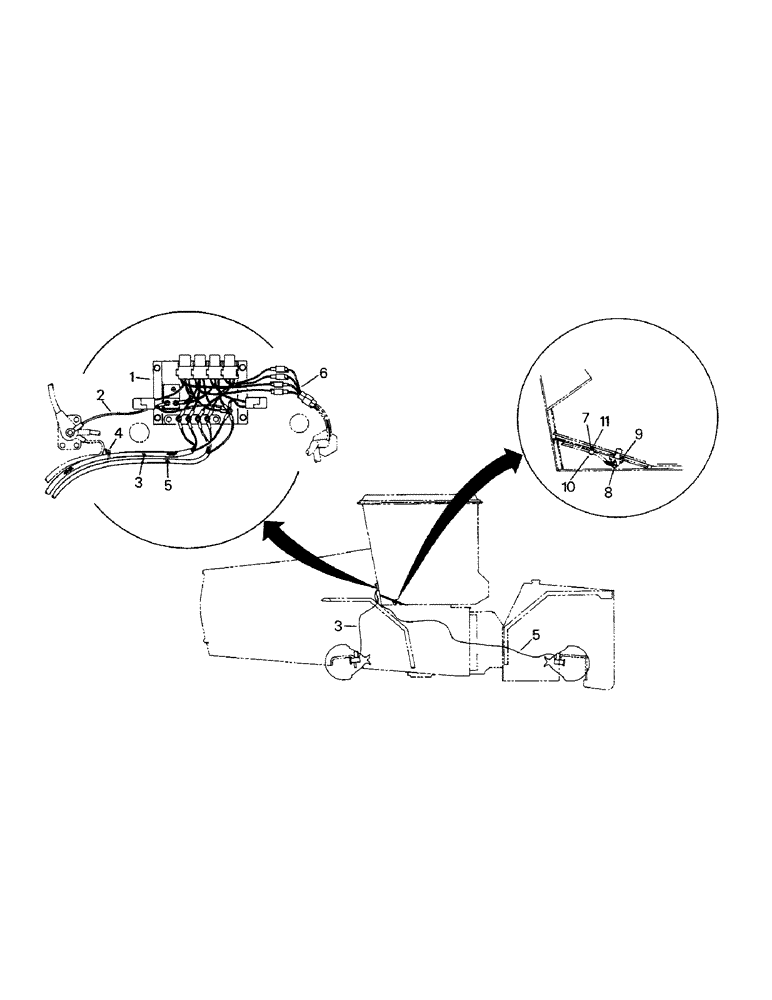

Запчасти Case IH CP-1325 (04-48) - CONTROLLED TRACTION DIFFERENTIAL ELECTRICAL (04) - Drive Train

1

INSTRUMENTATION GROUP (see figure 4-49)

1шт.

2

20-1964T1

WIRE

1шт.

3

20-1931T1

FRONT DIFF WIRE HARNESS, early style electric shifter

1шт.

20-1960T1

FRONT DIFF WIRE HARNESS, later style electric shifter, see Figures 04-46 and 04-47

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

9шт.

5

20-1932T1

REAR DIFF WIRE HARNESS, early style electric shifter

1шт.

20-1961T1

REAR DIFF WIRE HARNESS, later style electric shifter, see figures 04-46 and 04-47

1шт.

6

20-1986T1

HARNESS

JUMPER WIRE HARNESS

1шт.

7

19-1081

LOCK NUT

LOCK NUT

1шт.

8

20-1988T1

IGNITION SWITCH

DIMMER SWITCH

1шт.

9

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

CAPSCREW

2шт.

10

22-633

CLIP

1шт.

11

9419004

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

CAPSCREW

1шт.
