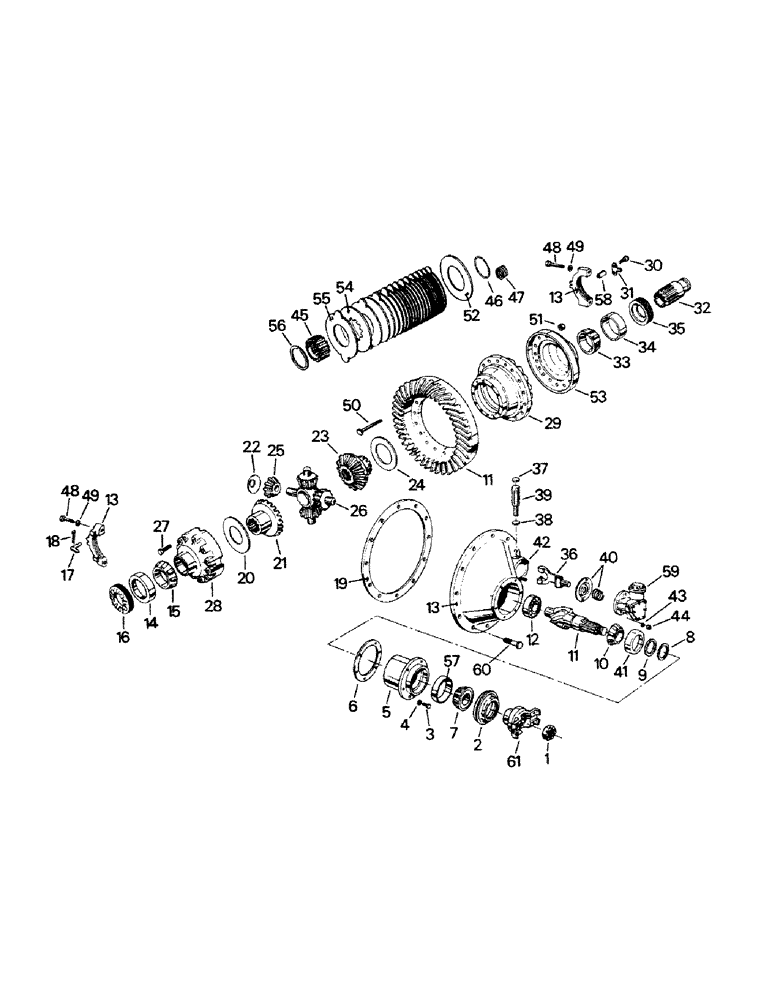

Запчасти Case IH CP-1325 (04-44) - DIFFERENTIAL AND CARRIER ASSEMBLY, S-40 CONTROLLED TRACTION DIFFERENTIAL (04) - Drive Train
№
Артикул
Название
Примечание
Количество
90-2656T91
DIFF ASSY (front), consists of 1-58
1шт.
90-2657T91
DIFFERENTIAL ASSY
DIFF ASSY (rear)
1шт.
1
1-1967
NUT
1шт.
2
16-60T1
OIL SEAL
Replaces 16-060
1шт.
Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.
1шт.
3
16-55
BOLT,Hex, 5/8" - 11 x 1.75", Gr 5
CAPSCREW
6шт.
4
16-54
LOCK WASHER
LOCK WASHER
6шт.
5
1-1968
CAGE
PINION BEARING CAGE (incl refs. 41 & 57)
1шт.
6
16-52
SHIM
(.003)
1шт.
16-245
SHIM
(.005)
1шт.
16-246
SHIM
(.010)
1шт.
16-247
SHIM
(.020)
1шт.
16-248
SHIM
(.030)
1шт.
7
16-57
CONE
BEARING CORE
1шт.
8
16-218
WASHER
SPACER (.176)
1шт.
16-219
WASHER
SPACER (.177)
1шт.
16-220
WASHER
SPACER (.178)
1шт.
16-221
WASHER
SPACER (.179)
1шт.
16-222
WASHER
SPACER (.180)
1шт.
16-223
WASHER
SPACER (.181)
1шт.
16-224
WASHER
SPACER (.182)
1шт.
16-225
WASHER
SPACER (.183)
1шт.
16-226
WASHER
SPACER (.184)
1шт.
16-227
WASHER
SPACER (.185)
1шт.
16-228
WASHER
SPACER (.186)
1шт.
16-229
WASHER
SPACER (.187)
1шт.
16-230
WASHER
SPACER (.188)
1шт.
16-231
WASHER
SPACER (.189)
1шт.
16-232
WASHER
SPACER (.190)
1шт.
16-233
WASHER
SPACER (.191)
1шт.
16-234
WASHER
SPACER (.192)
1шт.
16-235
WASHER
SPACER (.193)
1шт.
16-236
WASHER
SPACER (.194)
1шт.
16-237
WASHER
SPACER (.195)
1шт.
9
16-50
SPACER
1шт.
10
16-48
BEARING CONE
1шт.
11
1-2029
RING
GEAR & PINION (front)
1шт.
1-2028
GEAR-SET
RING GEAR & PINION (rear)
1шт.
12
1-2018
BALL BEARING
BEARING
1шт.
13
90-3411T91
CARRIER
DIFF CARRIER ASSY (with caps) (incl refs. 48, 49 & 58)
1шт.
14
16-29
BEARING
CUP (right)
1шт.
16
16-28
ADJUSTER
BEARING ADJUSTER (right)
1шт.
17
16-26
LOCK
ADJUSTER (right)
1шт.
18
16-25
PIN, SPLIT (COTTER)
COTTER PIN
1шт.
19
16-46
SCREW
CARRIER GASKET, either this part or a liquid gasket material, RTV sealant, P/N 01-1055, may be used for this application
1шт.
90-5801T91
KIT
DIFF KIT, consists of 20-26
1шт.
21
NSS
NOT SOLD SEPARAT
SIDE GEAR (right)
1шт.
22
1-2024
THRUST WASHER
THRUST WASHER
4шт.
23
NSS
NOT SOLD SEPARAT
SIDE GEAR (left)
1шт.
24
90-3414T1
WASHER
THRUST WASHER (left)
1шт.
26
1-2025
DIFF. SPIDER
DIFF SPIDER
1шт.
27
1-2022
CAPSCREW
12шт.
90-5795T1
CASE ASSY.
DIFF CASE ASSY, consists of 28-29
1шт.
28
NAP
DIFF CASE (plain)
1шт.
29
NAP
DIFF CASE (flanged)
1шт.
30
90-3415T1
CAPSCREW
2шт.
31
90-3416T1
LOCK ADJUSTER (left)
1шт.
32
90-3417T1
SLIDING CLUTCH
1шт.
33
90-3418T1
CONE
BEARING CORE (left)
1шт.
34
90-3419T1
BEARING, CUP
BEARING CUP (left)
1шт.
35
90-3420T1
BEARING ADJUSTER (left)
1шт.
36
90-3421T1
SHIFT FORK ASSY
1шт.
37
90-3422T1
PLUG
EXPANSION PLUG
1шт.
38
90-3423T1
PLUG
EXPANSION PLUG
1шт.
39
90-3424T1
SHAFT
SHIFT FORK SHAFT
1шт.
40
90-3425T1
BOOT
SEAL & SPRING
1шт.
41
16-51
BEARING
CUP
1шт.
42
90-3427T1
STUD
2шт.
43
90-3428T1
BOOT
WASHER
2шт.
44
90-3429T1
LOCK NUT
2шт.
45
90-3430T1
LARGE PLATE
DRIVER PLATE
1шт.
Part of P/N 90-3470T1 Friction Plate and Driver Kit
1шт.
46
90-3431T1
OIL SEAL
SNAP RING
1шт.
Part of P/N 90-3470T1 Friction Plate and Driver Kit
1шт.
47
90-3432T1
SPRING
12шт.
48
16-24
CAPSCREW
4шт.
49
16-64
WASHER
4шт.
50
90-3435T1
CAPSCREW,Hex, 3/8" - 16 x 0.75"
16шт.
51
90-3436T1
NUT
LOCK NUT
16шт.
52
90-3437T1
LARGE PLATE
PRESS. PLATE
1шт.
Part of P/N 90-3470T1 Friction Plate and Driver Kit
1шт.
53
90-3438T1
COVER
CASE COVER
1шт.
54
90-3439T1
LARGE PLATE
FRICTION PLATE
12шт.
Part of P/N 90-3470T1 Friction Plate and Driver Kit
1шт.
55
90-3440T1
LARGE PLATE
FRICTION PLATE
13шт.
Part of P/N 90-3470T1 Friction Plate and Driver Kit
1шт.
56
90-3441T1
OIL SEAL
SNAP RING
1шт.
Part of P/N 90-3470T1 Friction Plate and Driver Kit
1шт.
57
16-56
BEARING CUP
1шт.
58
16-65
BUSHING
BEARING CUP
2шт.
59
ELECTRIC SHIFT ASSY (see figures 4-46 & 4-47)
1шт.
60
19-817
SCREW,Hex, 5/8"-11 x 2", G8
CAPSCREW
8шт.
19-840
BOLT,1/2" - 13 x 2 1/2", Gr 5
CAPSCREW
4шт.
61
90-1879T1
YOKE
1шт.
90-3470T1
NO LONGER SERVICED
FRICTION PLATE AND DRIVER KIT, consists of ref. 45, 46, 52, 545, 55 AND 56
1шт.
