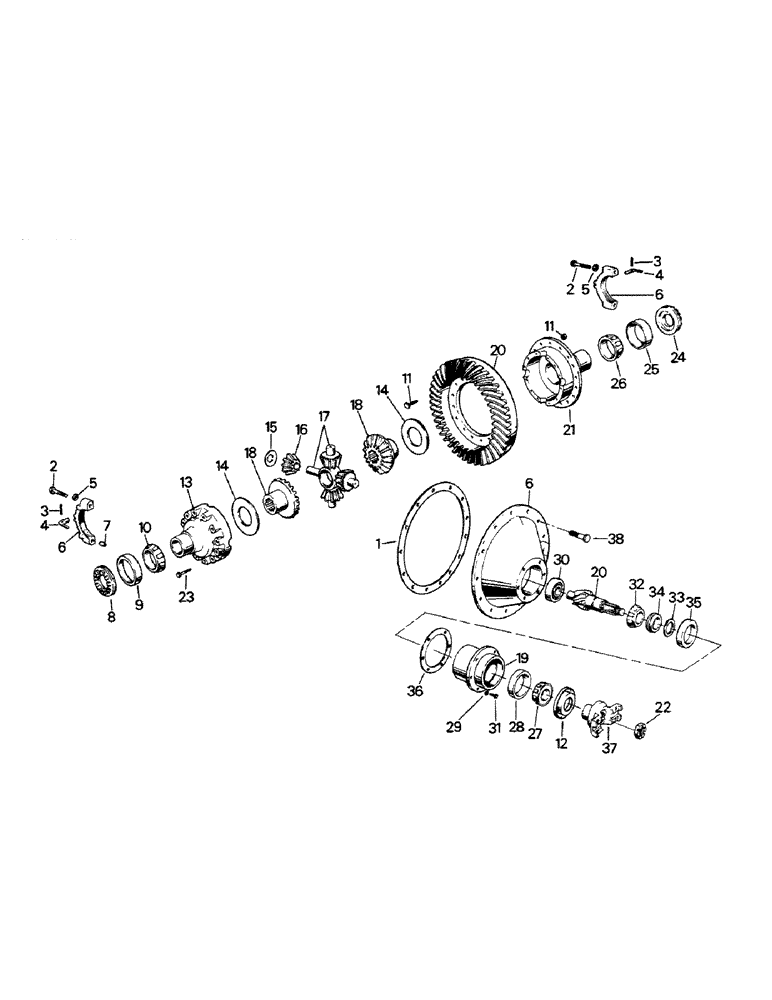

Запчасти Case IH CP-1325 (04-42) - DIFFERENTIAL AND CARRIER ASSEMBLY, S-40 STANDARD DIFFERENTIAL (04) - Drive Train

90-1877T91

DIFF ASSY (front), consists of 1-36

1шт.

90-1878T91

DIFFERENTIAL ASSY

DIFF ASSY (rear)

1шт.

1

16-46

SCREW

CARRIER GASKET (see note)

1шт.

2

16-24

CAPSCREW

4шт.

3

16-25

PIN, SPLIT (COTTER)

COTTER PIN

2шт.

4

16-26

LOCK

ADJUSTER

2шт.

5

16-64

WASHER

4шт.

6

1-2019

DIFF CARRIER (with caps) (incl refs. 2, 5 & 7)

1шт.

7

16-65

BUSHING

2шт.

8

16-28

ADJUSTER

BEARING ADJUSTER (right)

1шт.

9

16-29

BEARING

CUP (right)

1шт.

10

16-30

CONE

BEARING CONE (right)

1шт.

11

16-40

KIT

BOLT & NUT KIT (16 of each)

1шт.

12

16-60T1

OIL SEAL

(16-060 - code B)

1шт.

13

NAP

DIFF CASE (plain) (see fig. note)

1шт.

35-1375T91

SPIDER ASSY.

DIFF KIT, consists of 14-18

1шт.

14

1-2020

THRUST WASHER

THRUST WASHER

2шт.

15

1-2024

THRUST WASHER

THRUST WASHER

4шт.

16

NAP

SIDE PINION

4шт.

17

NAP

DIFF SPIDER

1шт.

18

NAP

SIDE GEAR

2шт.

19

1-1968

CAGE

PINION BEARING CAGE (incl refs. 28 & 35)

1шт.

20

1-2029

RING

GEAR & PINION (front)

1шт.

1-2028

GEAR-SET

RING GEAR & PINION (rear)

1шт.

21

NAP

DIFF CASE (flanged) (see note)

1шт.

22

1-1967

NUT

1шт.

23

1-2022

CAPSCREW

12шт.

24

16-45

BEARING ADJUSTER (left)

1шт.

25

16-44

BEARING

CUP (left)

1шт.

26

16-43

ROLLER BEARING

BEARING CONE (left)

1шт.

27

16-57

CONE

BEARING CONE

1шт.

28

16-56

BEARING CUP

1шт.

29

16-54

LOCK WASHER

LOCK WASHER

6шт.

30

1-2018

BALL BEARING

BEARING

1шт.

31

16-55

BOLT,Hex, 5/8" - 11 x 1.75", Gr 5

CAPSCREW

6шт.

32

16-48

BEARING CONE

1шт.

33

16-218

WASHER

SPACER (.176)

1шт.

16-219

WASHER

SPACER (.177)

1шт.

16-220

WASHER

SPACER (.178)

1шт.

16-221

WASHER

SPACER (.179)

1шт.

16-222

WASHER

SPACER (.180)

1шт.

16-223

WASHER

SPACER (.181)

1шт.

16-224

WASHER

SPACER (.182)

1шт.

16-225

WASHER

SPACER (.183)

1шт.

16-226

WASHER

SPACER (.184)

1шт.

16-227

WASHER

SPACER (.185)

1шт.

16-228

WASHER

SPACER (.186)

1шт.

16-229

WASHER

SPACER (.187)

1шт.

16-230

WASHER

SPACER (.188)

1шт.

16-231

WASHER

SPACER (.189)

1шт.

16-232

WASHER

SPACER (.190)

1шт.

16-233

WASHER

SPACER (.191)

1шт.

16-234

WASHER

SPACER (.192)

1шт.

16-235

WASHER

SPACER (.193)

1шт.

16-236

WASHER

SPACER (.194)

1шт.

16-237

WASHER

SPACER (.195)

1шт.

34

16-50

SPACER

1шт.

35

16-51

BEARING

CUP

1шт.

36

16-52

SHIM

(.003)

1шт.

16-245

SHIM

(.005)

1шт.

16-246

SHIM

(.010)

1шт.

16-247

SHIM

(.020)

1шт.

16-248

SHIM

(.030)

1шт.

37

90-1879T1

YOKE

1шт.

38

19-817

SCREW,Hex, 5/8"-11 x 2", G8

CAPSCREW

8шт.

19-840

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW

4шт.
